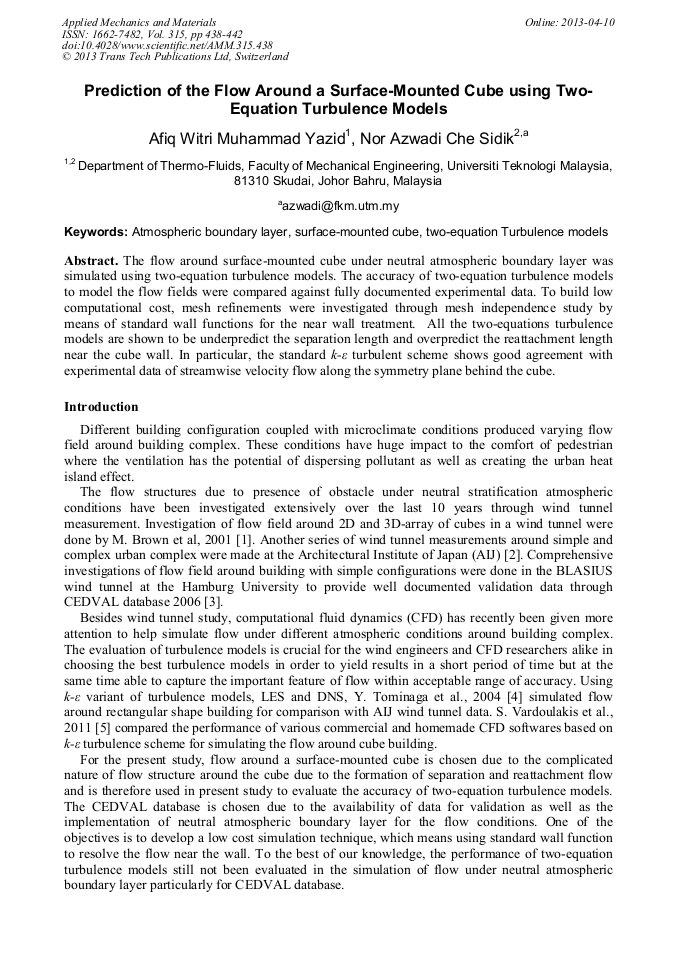

Prediction of the Flow around a Surface-Mounted Cube Using Two-Equation Turbulence Models

Abstract:

The flow around surface-mounted cube under neutral atmospheric boundary layer was simulated using two-equation turbulence models. The accuracy of two-equation turbulence models to model the flow fields were compared against fully documented experimental data. To build low computational cost, mesh refinements were investigated through mesh independence study by means of standard wall functions for the near wall treatment. All the two-equations turbulence models are shown to be underpredict the separation length and overpredict the reattachment length near the cube wall. In particular, the standard k-ε turbulent scheme shows good agreement with experimental data of streamwise velocity flow along the symmetry plane behind the cube.

• Periodical: Applied Mechanics and Materials (Volume 315)
• Pages: 438-442
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.315.438
• Online since: April 2013
• Authors: Afiq Witri Muhammad Yazid, Nor Azwadi Che Sidik
• Keywords: Atmospheric Boundary Layer, Surface-Mounted Cube, Two-Equation Turbulence Models

References

[1] M. Brown, R. Lawson, D. DeCroix, R. Lee, Comparison of Centerline Velocity Measurements Obtained Around 2D and 3D Arrays in a Wind Tunnel, Report LA-UR-01-4138, Los Alamos National Laboratory, Los Alamos, (2001).

[2] Guidebook for Practical Applications of CFD to Pedestrian Wind Environment around Buildings, Architectural Institute of Japan, http: /www. aij. or. jp/jpn/ publish/cfdguide/index_e. htm.

[3] CEDVAL Database (2006), http: /www. mi. uni-hamburg. de/Data-Sets. 432. 0. html.

[4] Yoshihide Tominaga, Akashi Mochida, Taichi Shirasawa, Ryuichiro Yoshie, Hiroto Kataoka, Kazuyoshi Harimoto and Tsuyoshi Nozu, Cross Comparisons of CFD Results of Wind Environment at Pedestrian Level around a High-rise Building and within a Building Complex, J. of Asian Architecture and Building Engineering Vol. 3 No. 1 (2004).

DOI: 10.3130/jaabe.3.63

[5] S. Vardoulakis, R. Dimitrova, Kate Richards, David Hamlyn, Giorgio Camilleri, Mark Weeks, Jean-François Sini, Rex Britter, Carlos Borrego, Michael Schatzmann and Nicolas Moussiopoulos, Numerical Model Inter-comparison for Wind Flow and Turbulence Around Single-Block Buildings, Environ Model Assess 16 (2011).

DOI: 10.1007/s10666-010-9236-0

[6] J. Franke, A. Hellsten, H. Schlünzen, B. Carissimo, Best practice guideline for the CFD simulation of flows in the urban environment. COST 732: Quality Assurance and Improvement of Microscale Meteorological Models, (2007).

DOI: 10.1504/ijep.2011.038443

[7] FLUENT Documentation: User guide, ANSYS Inc, (2005).

[8] P.J. Richards, S.E. Norris, Appropriate boundary conditions for computational wind engineering models revisited. J. Wind Eng. Ind. Aerodyn. 99 (2011) 257-266.

DOI: 10.1016/j.jweia.2010.12.008

[9] P. Sahm, P. Louka, M. Ketzel, Flow around a wall-mounted cube, 2002, http: /www2. dmu. dk/AtmosphericEnvironment/trapos/cfd-wg. htm.

[10] M. Ariff, S. M. Salim and S. C Cheah, Wall Y+ Approach For Dealing With Turbulent Flow Over A Surface Mounted Cube: Part 2 – High Reynolds Number. Seventh International Conference on CFD in the Minerals and Process Industries CSIRO, Melbourne, Australia, (2009).
