Acid Pretreatment of WC-Co for Surface Roughening and Cobalt Removal Prior to CVD Diamond Coating

Abstract:

Chemical vapor deposition (CVD) diamond coatings are being developed to be applied on carbide cutting tools to enhance wear resistance and increase tool life. As a prerequisite, for ensuring adhesion of CVD diamond on tungsten carbide substrate, it is necessary to prepare high surface roughness and to remove the cobalt on tungsten carbide surface during the pretreatment. In this study, a two step acid pretreatment was examined for those purposes. Etching using modified Murakamis reagent was initially performed to roughen the surface. Subsequently, the carbide was immersed in nitric acid to remove cobalt. Concentration of the acid solutions and reaction time were varied. Results showed that the initial step by modified Murakamis reagent etching resulted in a surface roughness of Ry = 6.95 µm, which is a 15% increase from the average initial surface roughness. The second step by nitric acid immersion on modified Murakamis reagent etched carbide samples resulted in carbide surfaces with zero cobalt content, confirming the effectiveness of the pretreatment.

You might also be interested in these eBooks

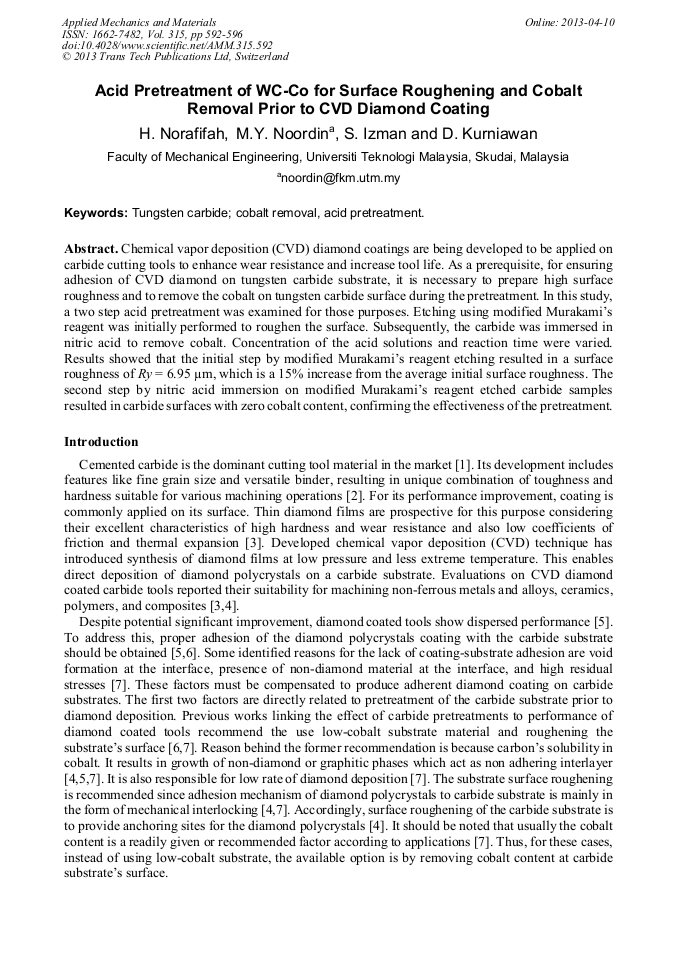

View Preview

Info:

Periodical:

Applied Mechanics and Materials (Volume 315)

Pages:

592-596

DOI:

https://doi.org/10.4028/www.scientific.net/AMM.315.592

Citation:

Cite this paper

Online since:

April 2013

Authors:

H. Norafifah, M.Y. Noordin, S. Izman, D. Kurniawan

Keywords:

Acid Pretreatment, Cobalt Removal, Tungsten Carbide

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] M.Y. Noordin, D. Kurniawan, Y.C. Tang, K. Muniswaran, Feasibility of mild hard turning of stainless steel using coated carbide tool, Int. J. Adv. Manuf. Technol. 60 (2012) 853-863.

DOI: 10.1007/s00170-011-3656-0

Google Scholar

[2] D. Kurniawan, M.Y. Noordin, S. Sharif, Hard machining of stainless steel using wiper coated carbide: tool life and surface integrity, Mater. Manuf. Proc. 25 (2010) 370-377.

DOI: 10.1080/10426910903179930

Google Scholar

[3] F.H. Sun, Z.M. Zhang, M. Chen, H.S. Shen, Improvement of adhesive strength and surface roughness of diamond films on Co-cemented tungstencarbide tools, Diamond Rel. Mater. 12 (2003) 711-718.

DOI: 10.1016/s0925-9635(02)00345-x

Google Scholar

[4] A. Inspektor, E.J. Oles, C.E. Bauer, Theory and practice in diamond coated metal-cutting tools, Int. J. Refractory Metals Hard Mater. 15(1997) 49-56.

DOI: 10.1016/s0263-4368(96)00045-5

Google Scholar

[5] L. Settineri, F. Bucciotti, F. Cesano, M.G. Faga, Surface properties of diamond coatings for cutting tools, CIRP Ann. 56 (2007) 573–576.

DOI: 10.1016/j.cirp.2007.05.137

Google Scholar

[6] B. Sahoo, A.K. Chattopadhyay, On effectiveness of various surface treatments on adhesion of HF-CVD diamond coating to tungsten carbide inserts, Diamond Rel. Mater. 11 (2002) 1660-1669.

DOI: 10.1016/s0925-9635(02)00137-1

Google Scholar

[7] K. Mallika, R. Komanduri, Diamond coatings on cemented tungsten carbide tools by low-pressure microwave CVD, Wear 224 (1999) 245-266.

DOI: 10.1016/s0043-1648(98)00337-8

Google Scholar

[8] R. Polini, F. Bravi, G. Mattei, G. Marcheselli, E. Traversa, Effect of WC grain growth inhibitors on the adhesion of chemical vapor deposition diamond films on WC–Co cemented carbide, Diam. Rel. Mater. 11 (2002) 242–248.

DOI: 10.1016/s0925-9635(01)00681-1

Google Scholar
