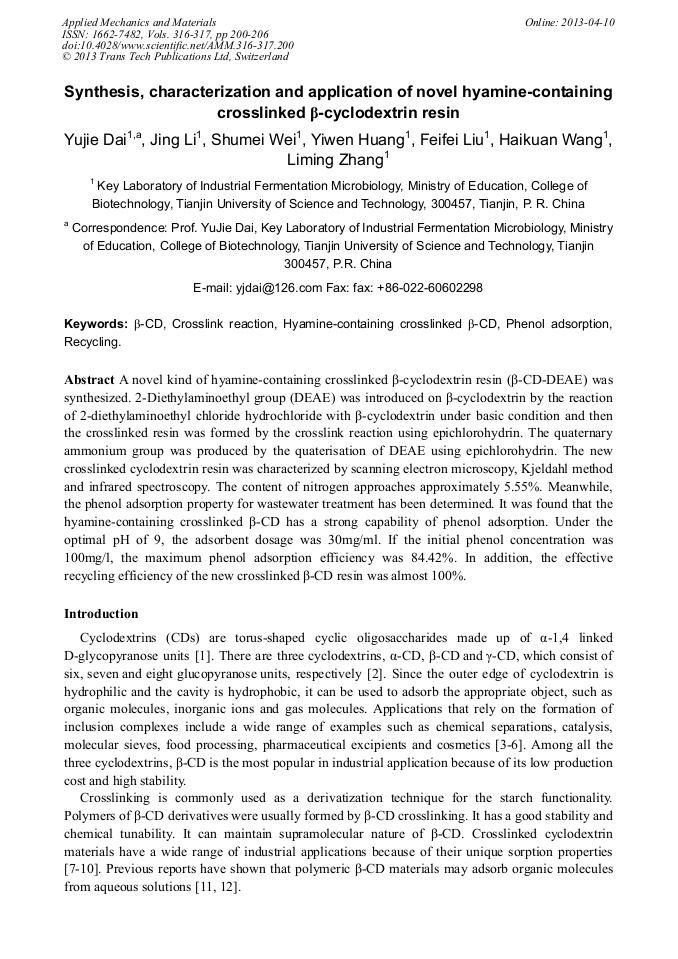

Synthesis, Characterization and Application of Novel Hyamine-Containing Crosslinked β-Cyclodextrin Resin

Abstract:

A novel kind of hyamine-containing crosslinked β-cyclodextrin resin (β-CD-DEAE) was synthesized. 2-Diethylaminoethyl group (DEAE) was introduced on β-cyclodextrin by the reaction of 2-diethylaminoethyl chloride hydrochloride with β-cyclodextrin under basic condition and then the crosslinked resin was formed by the crosslink reaction using epichlorohydrin. The quaternary ammonium group was produced by the quaterisation of DEAE using epichlorohydrin. The new crosslinked cyclodextrin resin was characterized by scanning electron microscopy, Kjeldahl method and infrared spectroscopy. The content of nitrogen approaches approximately 5.55%. Meanwhile, the phenol adsorption property for wastewater treatment has been determined. It was found that the hyamine-containing crosslinked β-CD has a strong capability of phenol adsorption. Under the optimal pH of 9, the adsorbent dosage was 30mg/ml. If the initial phenol concentration was 100mg/l, the maximum phenol adsorption efficiency was 84.42%. In addition, the effective recycling efficiency of the new crosslinked β-CD resin was almost 100%.

• Periodical: Applied Mechanics and Materials (Volumes 316-317)
• Pages: 200-206
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.316-317.200
• Online since: April 2013
• Authors: Yu Jie Dai, Jing Li, Shu Mei Wei, Yi Wen Huang, Fei Fei Liu, Hai Kuan Wang, Li Ming Zhang
• Keywords: Crosslink Reaction, Hyamine-Containing Crosslinked β-CD, Phenol Adsorption, Recycling, β-Cd

References

[1] T.C. Werner, I.M. Warner: The use of naphthalene fluorescence probesto studythe binding siteson cyclodextrin polymers formedfrom reactionof cyclodextrin monomerswith epichlorohydrin, J. Inclusion Phenom, Vol. 385-396 (1994), p.18.

DOI: 10.1007/bf00707387

[2] J. Szejtli: Cyclodextrin inclusion complexes: Reaction catalysed by cyclodextrins, Cyclodextrin Technology, Kluwer, Dordrecht (1988).

[3] N. Wiedenhof, J. Lammers, C.L. van Panthaleon Van Eck: Properties of Cyclodextrins Part III, Cyclodextrin-Epichlorhydrin Resins: Preparation and Analysis, Starch, Vol. 119-123 (1969), p.21.

DOI: 10.1002/star.19690210504

[4] J.L. Hoffman: Chromatography of Nucleic Acids on Cross-Linked Cyciodextrin Gels Having Inclusion-Forming Capacity, J. Macromol. Sci. Chem, Vol. 1147-1157 (1973), p.7.

DOI: 10.1080/10601327308060488

[5] K. Sreenivasan: Solvent effect on the interaction of steroids with a novel methyl β-cyclodextrin polymer, J. Appl. Polym. Sci, Vol. 1857-1861 (1998), p.68.

DOI: 10.1002/(sici)1097-4628(19980613)68:11<1857::aid-app17>3.0.co;2-r

[6] J. Szejtli: Past, present, and future of cyclodextrin Research, Pure Appl. Chem, Vol. 1825-1845 (2004), p.76.

DOI: 10.1351/pac200476101825

[7] J. Szejtli: Introduction and general overview of cyclodextrins, Chem. Rev, Vol. 1743-1754 (1998), p.98.

[8] S.W. Choi, S. Amajjahe, H. Ritter: Polymerization of included monomers and behaviour of resulting polymers, Inclusion Polymers, Vol. 175-203 (2009), p.222.

DOI: 10.1007/12_2008_6

[9] G. Wenz, S. Amajjahe: Advances in Polymer Science, Inclusion Polymers, Vol. 1-54 (2009), p.222.

[10] F. Yhaya, A.M. Gregory, M.H. Stenzel: Polymers with Sugar Buckets–The Attachment of Cyclodextrins onto Polymer Chains, Aust. J. Chem, Vol. 195-210 (2010), p.63.

DOI: 10.1071/ch09516

[11] M. Ma, D.Q. Li: New organic nanoporous polymers and their inclusion complexes, Chem. Mater, Vol. 872-874 (1999), p.11.

DOI: 10.1021/cm981090y

[12] G. Crini: Recent developments in polysaccharide-based materials used as adsorbents in wastewater treatment, Prog. Polym. Sci, Vol. 38-70 (2005), p.30.

DOI: 10.1016/j.progpolymsci.2004.11.002

[13] S.R. Ha, S. Vinitnantharat, H. Ozaki: Bioregenerationby mixed microorganismsof granular activated carbon loadedwith a mixtureof phenols, Biotechnology letters, Vol. 1093-1096 (2000), p.22.

DOI: 10.1023/a:1005650612768

[14] S.H. Kim, J. Ahn, H.S. Kwak: Crosslinkingof β-cyclodextrinon cholesterol removalfrom milk, Arch. Pharmacal. Res, Vol. 1183-1187 (2004), p.27.

[15] J. Szejtli: Chemistry and separation of cyclodextrins, In Cyclodextrins and their inclusion complexes; Akademiai Kiado: Budapest, Hungary, 1982, pp.17-43.

[16] J. Solms, R.H. Egli: Harzemit Einschlusshohlräumenvon Cyclodextrin‐Struktur, Helvetica Chimica Acta, Vol. 1225-1228 (1965), p.48.

DOI: 10.1002/hlca.19650480603

[17] G. Crini, L. Janus, M. Morcellet, G. Torri, N. Morin: Sorption properties toward substituted phenolic derivatives in water using macroporous polyamines containing β-cyclodextrin, J. Appl. Polym. Sci, Vol. 2903-2910 (1999), p.73.

DOI: 10.1002/(sici)1097-4628(19990929)73:14<2903::aid-app14>3.0.co;2-2

[18] E. Renard, A. Deratani, G. Volet, B. Sebille: Preparation and characterization of water soluble high molecular weight β-cyclodextrin-epichlorohydrin polymers, Eur. Polym. J, Vol. 49-57 (1997), p.33.

DOI: 10.1016/s0014-3057(96)00123-1

[19] Association of Official Analytical Chemists: Official methods of analysis, 15th ed, AOAC, Arlington, VA (1990).
