Flow Field Characteristic Study of Horizontal Section PDC Bit in the Southeast of Chong Qing Wu Feng – Long Ma Xi Shale Reservoir

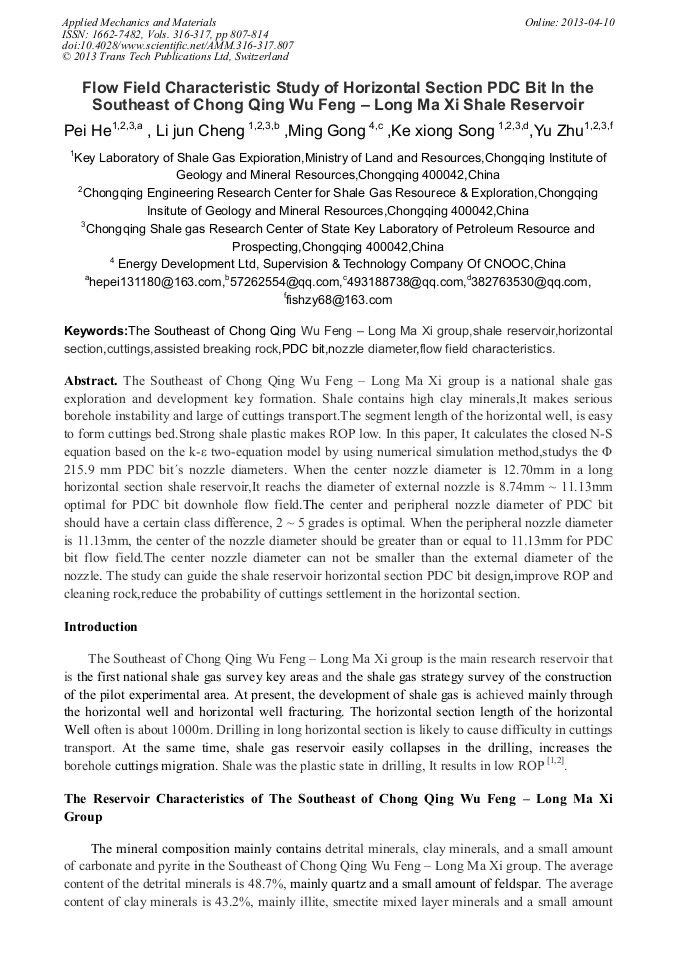

Abstract:

The Southeast of Chong Qing Wu Feng – Long Ma Xi group is a national shale gas exploration and development key formation. Shale contains high clay minerals,It makes serious borehole instability and large of cuttings transport.The segment length of the horizontal well, is easy to form cuttings bed.Strong shale plastic makes ROP low. In this paper, It calculates the closed N-S equation based on the k-ε two-equation model by using numerical simulation method,studys the Φ 215.9 mm PDC bit´s nozzle diameters. When the center nozzle diameter is 12.70mm in a long horizontal section shale reservoir,It reachs the diameter of external nozzle is 8.74mm ~ 11.13mm optimal for PDC bit downhole flow field.The center and peripheral nozzle diameter of PDC bit should have a certain class difference, 2 ~ 5 grades is optimal. When the peripheral nozzle diameter is 11.13mm, the center of the nozzle diameter should be greater than or equal to 11.13mm for PDC bit flow field.The center nozzle diameter can not be smaller than the external diameter of the nozzle. The study can guide the shale reservoir horizontal section PDC bit design,improve ROP and cleaning rock,reduce the probability of cuttings settlement in the horizontal section.

• Periodical: Applied Mechanics and Materials (Volumes 316-317)
• Pages: 807-814
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.316-317.807
• Online since: April 2013
• Authors: Pei He, Li Jun Cheng, Ming Gong, Ke Xiong Song, Yu Zhu
• Keywords: Assisted Breaking Rock, Cuttings, Flow Field Characteristics, Horizontal Section, Nozzle Diameter, PDC Bit, Shale Reservoir, Southeast of Chong Qing Wu Feng – Long Ma Xi Group

References

[1] G.R. Watson N.A. Barton.Using new computational fluid dynamics techniques to improve PDC bit performance [R]. SPE37580, (1997)

DOI: 10.2118/37580-ms

[2] J·E .Akin N.R. Dove.New nozzle hydraulics increase ROP for PDC and rock bits [J]·SPE 37578, (1997)

DOI: 10.2118/37578-ms

[3] WANG Fu jun. Computational Fluid Dynamics Analysis[M].Bei Jing:Tsinghua University Press,(2004)

[4] XIONG Ji you,HE Pei. Simulation Study of Flow Field Quality On PDC Bit's Gauge Block Structure Parameters.Journal of Chongqing University of Science and Technology (Natural Science Edition),2012 14(4):64~68

[5] HE Lin feng,XIE Cui li, Numerical simulation about effect of flow path on PDC bit fluid field[J]. J. University of Shanghai for Science and Technology,2007,29(1):59~64

[6] WANG Xizhou.Analysis Of Solid Carrying Capacity Of Surface Flow Field Of PDC Bit[J]. Drilling & Production Technology,2010,33(3):19-21.

[7] WELL M. Bit balling mitigation in PDC bit design［R］.SPE 114673-MS-P, 2008.
