Development of a Parallel-Series Stabilized Platform System

Abstract:

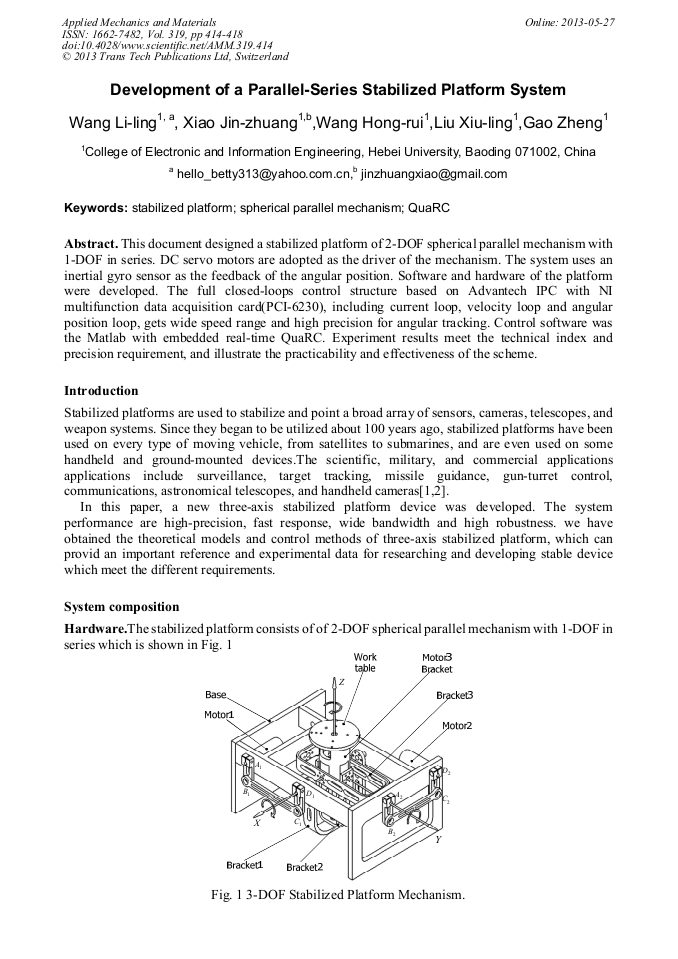

This document designed a stabilized platform of 2-DOF spherical parallel mechanism with 1-DOF in series. DC servo motors are adopted as the driver of the mechanism. The system uses an inertial gyro sensor as the feedback of the angular position. Software and hardware of the platform were developed. The full closed-loops control structure based on Advantech IPC with NI multifunction data acquisition card(PCI-6230), including current loop, velocity loop and angular position loop, gets wide speed range and high precision for angular tracking. Control software was the Matlab with embedded real-time QuaRC. Experiment results meet the technical index and precision requirement, and illustrate the practicability and effectiveness of the scheme.

You might also be interested in these eBooks

Chemical, Mechanical and Materials Engineering II

View Preview

Info:

Periodical:

Applied Mechanics and Materials (Volume 319)

Pages:

414-418

DOI:

https://doi.org/10.4028/www.scientific.net/AMM.319.414

Citation:

Cite this paper

Online since:

May 2013

Authors:

Li Ling Wang, Jin Zhuang Xiao, Hong Rui Wang, Xiu Ling Liu, Zheng Gao

Keywords:

QuaRC, Spherical Parallel Mechanism, Stabilized Platform
