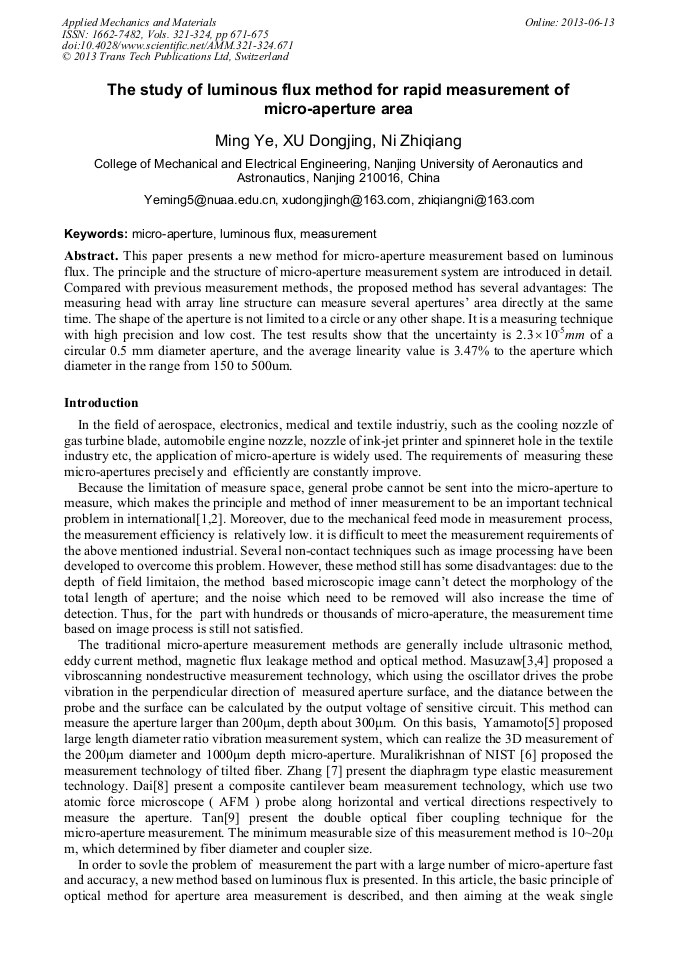

The Study of Luminous Flux Method for Rapid Measurement of Micro-Aperture Area

Abstract:

This paper presents a new method for micro-aperture measurement based on luminous flux. The principle and the structure of micro-aperture measurement system are introduced in detail. Compared with previous measurement methods, the proposed method has several advantages: The measuring head with array line structure can measure several apertures’ area directly at the same time. The shape of the aperture is not limited to a circle or any other shape. It is a measuring technique with high precision and low cost. The test results show that the uncertainty is mm of a circular 0.5 mm diameter aperture, and the average linearity value is 3.47% to the aperture which diameter in the range from 150 to 500um.

• Periodical: Applied Mechanics and Materials (Volumes 321-324)
• Pages: 671-675
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.321-324.671
• Online since: June 2013
• Authors: Ming Ye, Dong Jing Xu, Zhi Qiang Ni
• Keywords: Luminous Flux, Measurement, Micro-Aperture

References

[1] Erkrit L, Nobuyuki A, Masahiro Y. Analysis of Measurement Accuracy of Quadrilateral Hole Using Optical Inner-diameter-measuring Machine [J]. Optical Engineering, 2003, 42(9): 2568-2575.

DOI: 10.1117/1.1598435

[2] Mutsuo M, Hajime O, Michihiko O. Development of Optical Apparatus for Measuring small Hole Diameter[J]. Journal of the Japan Society for Precision Engineering, 1996, 62 (1): 145-149.

[3] Masuzawa T, Hamasaki Y, Fujino M. Vibroscanning　Method for Nondestructive Measurement of Small Holes [J]. Annals of the CIRP, 1993, 42(1):589-592.

DOI: 10.1016/s0007-8506(07)62516-5

[4] Masuzawa T, Kim B J, Bergaud C, et al. Twin-probe Vibroscanning Method for Dimensional of Mi-croholes[J]. Annals of the CIRP, 1997, 46(1):437-440.

DOI: 10.1016/s0007-8506(07)60860-9

[5] Yamamoto M, Takeuchi H, Aoki S. Dimensional Measurement of High Aspect Ratio Structures with a Resonating Micro Cantilever Probe[J]. Microsystems Technologies, 2000, 6(5):179-183.

DOI: 10.1007/s005429900037

[6] Muralikrishnan B, Stone J A, Vemuri S, et al. Fiber Deflection Probe for Small Hole Measurement[C]Proceedings of the ASPE Annual Metting.Orlando,USA, 2004:24-27.

[7] Zhang Guixiong, Yang Shimin. A 3D Probe for Measuring Small Blind Holes[J]. Annals of the CIRP, 1995,44(1):461-464.

DOI: 10.1016/s0007-8506(07)62363-4

[8] Dai Gaoliang, Woff H, Danzebrink HU. Atomic Force Microscope Cantilever Based Micro coordinate Measuring Probe for True Three-dimensional Measurements of Microstructures[J]. Applied Physics Letters, 2007, 91(12):1-3.

DOI: 10.1063/1.2786881

[9] Tan Jiubin, Cui Jiwen. Micro-cavity Measuring Equipment and Method Based on Double Optical Fiber Coupling: European, 06761505.4-2213[P]. 2008-01-25.
