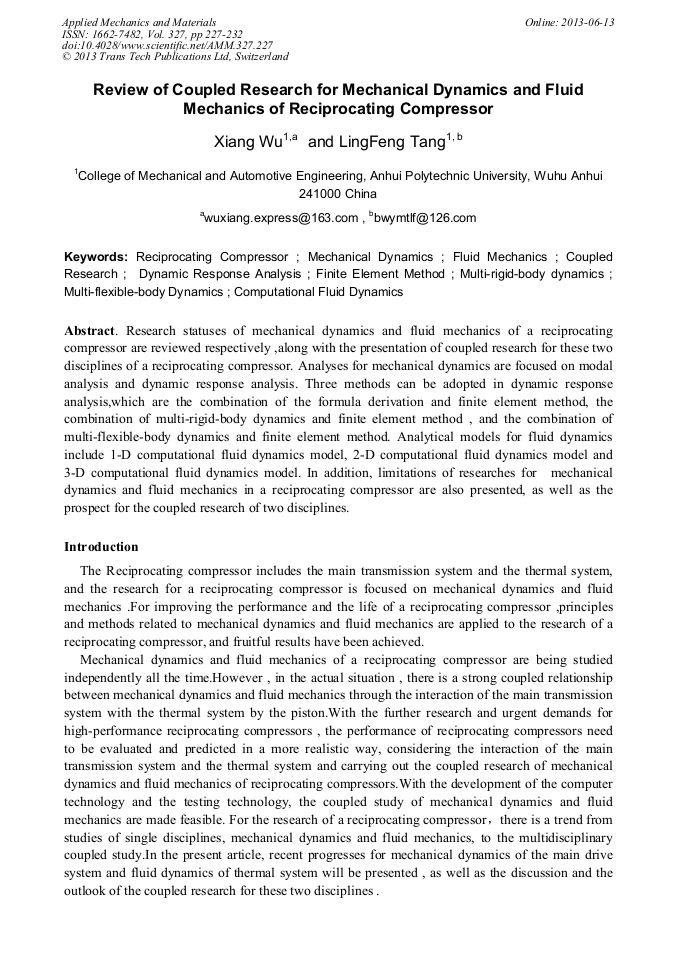

Review of Coupled Research for Mechanical Dynamics and Fluid Mechanics of Reciprocating Compressor

Abstract:

Research statuses of mechanical dynamics and fluid mechanics of a reciprocating compressor are reviewed respectively ,along with the presentation of coupled research for these two disciplines of a reciprocating compressor. Analyses for mechanical dynamics are focused on modal analysis and dynamic response analysis. Three methods can be adopted in dynamic response analysis,which are the combination of the formula derivation and finite element method, the combination of multi-rigid-body dynamics and finite element method , and thecombination of multi-flexible body dynamics and finite element method. Analytical models for fluid dynamics include 1-D computationalfluid dynamics model, 2-D computational fluid dynamics model and 3-D computational fluid dynamics model. In addition, limitations of researches for mechanical dynamics and fluid mechanics in a reciprocating compressor are also presented, as well as the prospect for the coupled research of two disciplines.

• Periodical: Applied Mechanics and Materials (Volume 327)
• Pages: 227-232
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.327.227
• Online since: June 2013
• Authors: Xiang Wu, Ling Feng Tang
• Keywords: Computational Fluid Dynamics (CFD), Coupled Research, Dynamic Response Analysis, Finite Element Method (FEM), Fluid Mechanics, Mechanical Dynamics, Multi-Flexible-Body Dynamics, Multi-Rigid-Body Dynamics, Reciprocating Compressor

References

[1] Y. Wang: Fault Diagnosis of Reciprocating Compressors and Failure Behavior Diagnosis for Key Components (MS., Central South University, China 2007)), p.28 . (in chinese )

[2] C. Z. Ke and C. Q. Song: Machinery,Vol. 36 (2009) No.1, p.45.

[3] X. l. Yu, B. Y Yu and Q. K. Feng: Compressor Technology, (2011) No.2, p.10.

[4] Y. Zhang and H. Chen: General Machinery, (2009) No.2, p.94. (in chinese )

[5] Drafting Group: Design of Piston Compressor (China machine press, China 1974). (in chinese )

[6] C.W. Liu , L.F Qian and X.P. Su: Journal of Machine Design,Vol. 23 (2006) No.12, p.52.

[7] C.Q Song: Dynamic Analysis and Simulation of the Automotive Air Compressor's Crank-Rod Mechanism (MS., Wuhan University of Technology, China 2009), p.14.

[8] E. L. L. Pereira , C. J. Deschamps and F. A. Ribas: International Compressor Engineering Conference (Purdue, USA, July 14-17, 2008). p.1879.

[9] C. J. Deschamps , F. C. Possamai and E. L. L. Pereira: International Compressor Engineering Conference (Purdue, USA, July 16-19 , 2002). p.1542.

[10] E. L.L. Pereira, C.J. Deschamps, F.A. Ribas : 19th International Congress of Mechanical Engineering (Brasília, Brazil, November, 5 - 9, 2007). p.1677.

[11] J. H. Kim , S. Y. Wang, S. W Park, K. Ryu and J. P. La: International Compressor Engineering Conference (Purdue, USA, July 17-20 , 2006). p.1805.

[12] E. L.L. Pereira, C.J. Deschamps, F.A. Ribas : 19th International Congress of Mechanical Engineering (London, England, September, 10- 12, 2007). p.309.

[13] H. S. Kim , J.W. Ahn and D. H. Kim: International Compressor Engineering Conference (Purdue, USA, July 14-17, 2008). p.1936.

[14] H. F. Zhang : Research for Characteristics of Large Compressor Crankshaft (MS., Nanjing University of Science and Technology, China 2005), p.32.(in chinese)
