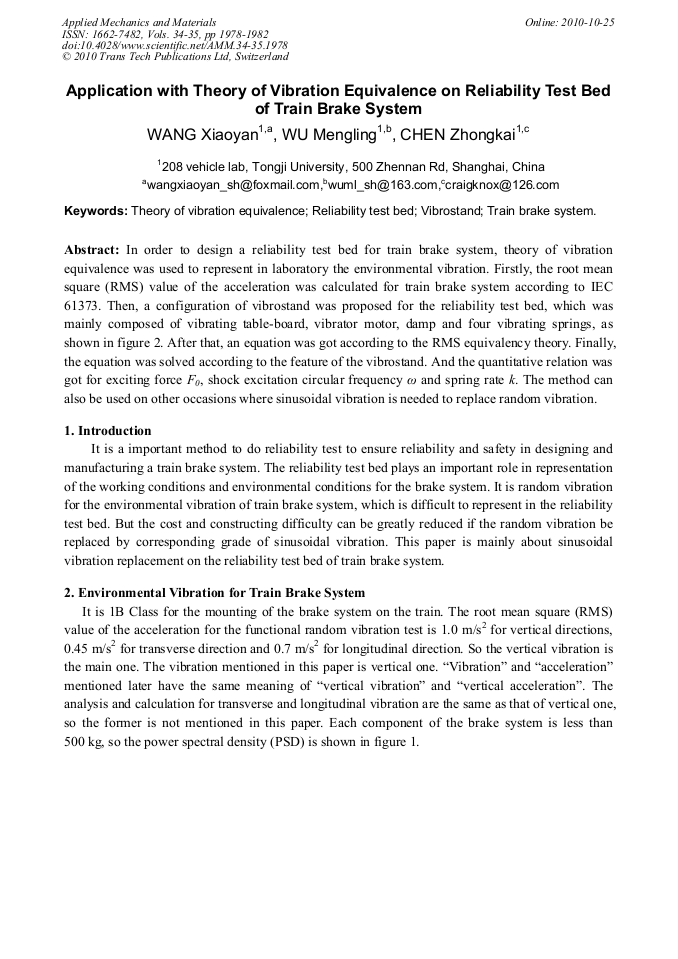

Application with Theory of Vibration Equivalence on Reliability Test Bed of Train Brake System

Abstract:

In order to design a reliability test bed for train brake system, theory of vibration equivalence was used to represent in laboratory the environmental vibration. Firstly, the root mean square (RMS) value of the acceleration was calculated for train brake system according to IEC 61373. Then, a configuration of vibrostand was proposed for the reliability test bed, which was mainly composed of vibrating table-board, vibrator motor, damp and four vibrating springs, as shown in figure 2. After that, an equation was got according to the RMS equivalency theory. Finally, the equation was solved according to the feature of the vibrostand. And the quantitative relation was got for exciting force F0, shock excitation circular frequency ω and spring rate k. The method can also be used on other occasions where sinusoidal vibration is needed to replace random vibration.

• Periodical: Applied Mechanics and Materials (Volumes 34-35)
• Pages: 1978-1982
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.34-35.1978
• Online since: October 2010
• Authors: Xiao Yan Wang, Meng Ling Wu, Zhong Kai Chen
• Keywords: Reliability Test Bed, Theory of Vibration Equivalence, Train Brake System, Vibrostand

References

[1] IEC 61373-1999. Railway applications -Rolling stock equipment -Shock and vibration tests[S]. (1999).

[2] YING Huaiqiao. Waveform or SpectrumAnalysis and Random Data Processing[M]. (1983).

[3] W·c·fackler [U.S. A]. Equivalency Technology in Vibration Test[M]. (1979).

[4] YAO Qihang translation,W.C. Fake. Equivalency Technology in Vibration Test[M]. (1979).

[5] CHEN Liqun，LIU Yanzhu, CHEN Wenliang. Vibration Mechanics [M]. (1998).
