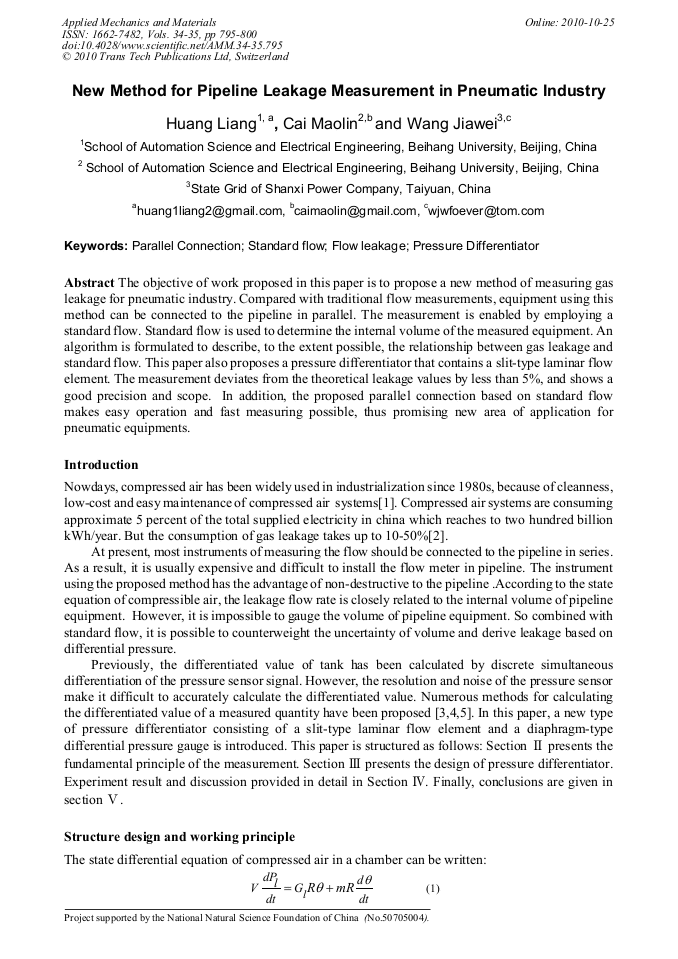

New Method for Pipeline Leakage Measurement in Pneumatic Industry

Abstract:

The objective of work proposed in this paper is to propose a new method of measuring gas leakage for pneumatic industry. Compared with traditional flow measurements, equipment using this method can be connected to the pipeline in parallel. The measurement is enabled by employing a standard flow. Standard flow is used to determine the internal volume of the measured equipment. An algorithm is formulated to describe, to the extent possible, the relationship between gas leakage and standard flow. This paper also proposes a pressure differentiator that contains a slit-type laminar flow element. The measurement deviates from the theoretical leakage values by less than 5%, and shows a good precision and scope. In addition, the proposed parallel connection based on standard flow makes easy operation and fast measuring possible, thus promising new area of application for pneumatic equipments.

You might also be interested in these eBooks

Mechanical Engineering and Green Manufacturing

View Preview

Info:

Periodical:

Applied Mechanics and Materials (Volumes 34-35)

Pages:

795-800

DOI:

https://doi.org/10.4028/www.scientific.net/AMM.34-35.795

Citation:

Cite this paper

Online since:

October 2010

Authors:

Liang Huang, Mao Lin Cai, Jia Wei Wang

Keywords:

Flow Leakage, Parallel Connection, Pressure Differentiator, Standard Flow

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] Maolin Cai, Toshiharu. Kagawa, kenji Kawashima., Energy Conversation and Power Evaluation of Compressible Fluid in Pneumatic Actuator Systems 37th IECEC, 2002, 19-7, pp.438-443.

DOI: 10.1109/iecec.2002.1392073

Google Scholar

[2] Dutch National Team: Compressed air: Saving of 30% are quite normal, CADDET Energy Efficiency, Newsletter No. 3, (1999).

Google Scholar

[3] Ibrir S. Online exact differentiation and notion of asymptotic algebraic observers [J], IEEE Trans. Autom. Control 48: 2055-2060, (2003).

DOI: 10.1109/tac.2003.819303

Google Scholar

[4] Chitour Y. Time-varying high-gain observers for numerical differentiation [J], IEEE Trans. Autom. Control 47: 1565-1569, (2002).

DOI: 10.1109/tac.2002.802740

Google Scholar

[5] Kenji Kawashima, Tomonori Kato, Yosuke Yamazaki, Development of slit-type pressure differentiator using an isothermal chamber [J]. Meas. Sci. Technol. 16 (2005) 1150-1156.

DOI: 10.1088/0957-0233/16/5/015

Google Scholar

[6] Toshiharu Kagawa: Dimensionless pressure response based on heat transfer capacity of air[J], Hydraulic and Pneumatic, Vol. 19，No. 4, pp.54-59 (1988).

Google Scholar
