A Study on the Structures and Properties of B-Bearing Cast Steel for Wear Resistance

Abstract:

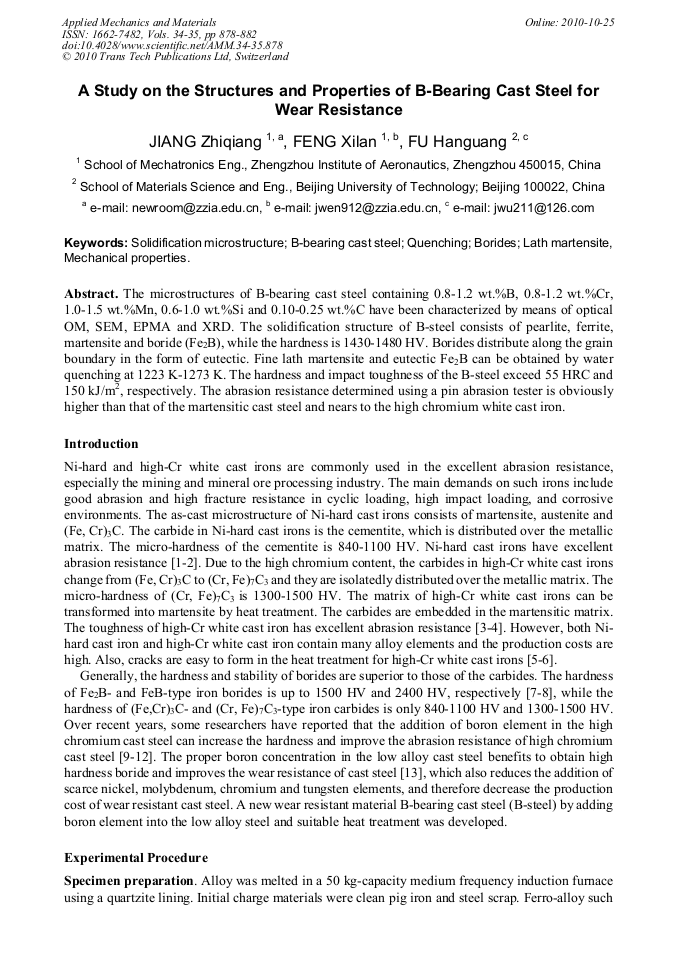

The microstructures of B-bearing cast steel containing 0.8-1.2 wt.%B, 0.8-1.2 wt.%Cr, 1.0-1.5 wt.%Mn, 0.6-1.0 wt.%Si and 0.10-0.25 wt.%C have been characterized by means of optical OM, SEM, EPMA and XRD. The solidification structure of B-steel consists of pearlite, ferrite, martensite and boride (Fe2B), while the hardness is 1430-1480 HV. Borides distribute along the grain boundary in the form of eutectic. Fine lath martensite and eutectic Fe2B can be obtained by water quenching at 1223 K-1273 K. The hardness and impact toughness of the B-steel exceed 55 HRC and 150 kJ/m2, respectively. The abrasion resistance determined using a pin abrasion tester is obviously higher than that of the martensitic cast steel and nears to the high chromium white cast iron.

• Periodical: Applied Mechanics and Materials (Volumes 34-35)
• Pages: 878-882
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.34-35.878
• Online since: October 2010
• Authors: Zhi Qiang Jiang, Xi Lan Feng, Xian Zhang Feng
• Keywords: B-Bearing Cast Steel, Borides, Lath Martensite, Mechanical Property, Quenching, Solidification Microstructure

References

[1] Liu JZ, Man YF. Wear 1993; 162-164 pt B: 833.

[2] Dogan ON, Hawk JA and Rice J. Materials Science and Technology, MS and T 2004; Volume 1: AIST Process Metallurgy, Product Quality and Applications Proceedings, 2004. p.451.

[3] Pearce JTH. Foundryman 2002; 95(4): 156.

[4] Cetinkaya C. Materials and Design 2005; 27(6): 437.

[5] Farah A F, Crnkovic OR. Journal of Materials Engineering and Performance 2001; 10(1): 42.

[6] Fan QY, Fu W. Machinery Engineer 1999; (4): 33.

[7] Ozbek I, Sen S, Ipek M, Bindal C, Zeytin S and Hikmet UA. Vacuum 2004; 73(3-4): 643.

DOI: 10.1016/j.vacuum.2003.12.083

[8] Yoo JW, Lee SH, Yoon CS and Kim SJ. Journal of Nuclear Materials 2006; 352(1-3): 90.

[9] Guo CQ, Kelly PM. Journal of Materials Science 2004; 39(4): 1109.

[10] Aso S, Hachisuka M and Goto S. Journal of the Japan Institute of Metals 1998; 61(7): 567.

[11] Egorov MD, Sapozhnikov YL. Metal Science and Heat Treatment 1989; 31(5-6): 387.

[12] Christodoulou P and Calos N. Materials Science and Engineering A 2001; A 301(2): 103.

[13] Fu HG. Tsinghua University, (2006).

[14] ASTM E-8: Annual book of ASTM standards, Vol. 03. 01, 1998: 545.

[15] ASTM E-399: Annual book of ASTM standards, Vol. 03. 01, 1998: 745.

[16] Blickensderfer, R, Laird, G. II. Journal of Testing & Evaluation, 1988, 16(6): 516.

[17] Baker H. ASM Handbook, Vol. 3, ASM Int, Materials Park, Ohio 44073-0002, 1992. p.281.

[18] Benxi Iron & Steel Co. Boron Steel. Beijing, Metallurgical Industry Press, 1977. p.2.

[19] Banerjee K and Rollett AD. Ironmaking and Steelmaking 2003; 30(6): 62.

[20] Parusov VV, Sychkov AB, Zhigarev MA and Perchatkin AV. Metallurgist 2004; 48(11): 626.

DOI: 10.1007/s11015-005-0038-6

[21] Zavattieri PD and Espinosa HD. Acta Materialia 2001; 49(20): 4291.

[22] Qiu H, Mori H, Enoki M. Metallurgical and Materials Transactions A 2000; 31A(11): 2785.
