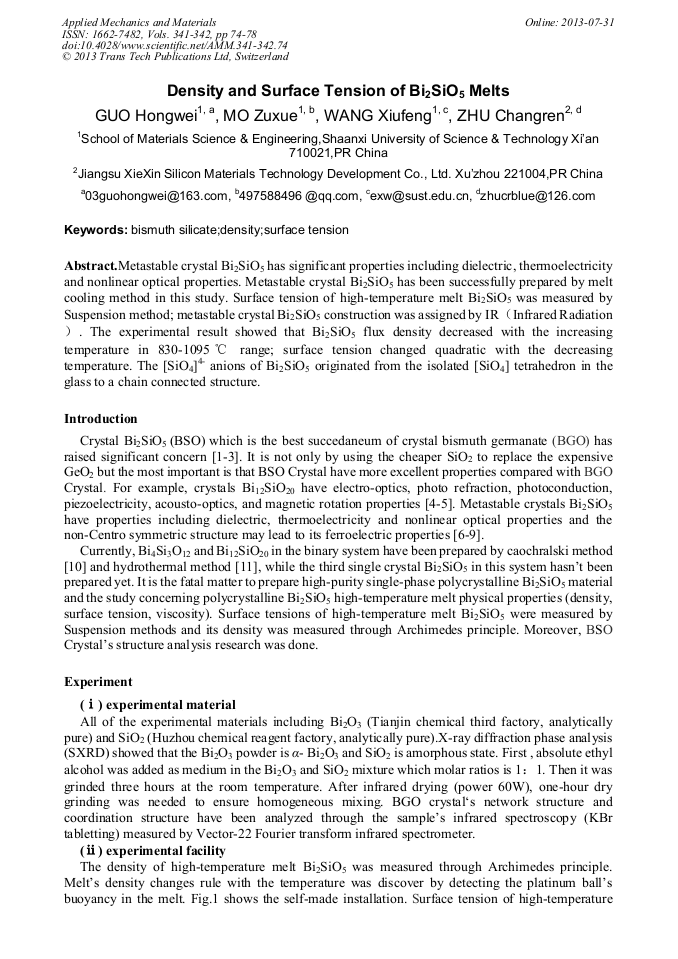

Density and Surface Tension of Bi₂SiO₅ Melts

Abstract:

Metastable crystal Bi₂SiO₅ has significant properties including dielectric, thermoelectricity and nonlinear optical properties. Metastable crystal Bi₂SiO₅ has been successfully prepared by melt cooling method in this study. Surface tension of high-temperature melt Bi₂SiO₅ was measured by Suspension method; metastable crystal Bi₂SiO₅ construction was assigned by IR(Infrared Radiation). The experimental result showed that Bi₂SiO₅ flux density decreased with the increasing temperature in 830-1095°C range; surface tension changed quadratic with the decreasing temperature. The [SiO₄]^4- anions of Bi₂SiO₅ originated from the isolated [SiO₄] tetrahedron in the glass to a chain connected structure.

• Periodical: Applied Mechanics and Materials (Volumes 341-342)
• Pages: 74-78
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.341-342.74
• Online since: July 2013
• Authors: Hong Wei Guo, Zu Xue Mo, Xiu Feng Wang, Chang Ren Zhu
• Keywords: Bismuth Silicate, Density, Surface Tension

References

[1] Zhereb V P, Skorivo V M. Metastable States in Bismuth-Containing Oxide Systems. Inorg Mater, 2003, 39(2): 121-145.

[2] Ishiia M, Harada K, Hirose Y, et al. Development of BSO (Bi4Si3O12) crystal for radiation detector. Optic Mater, 2002, 19(2): 201-212.

[3] Zhereb V P, Skorivo V M. Effect of Metastable Phases on the Structural Perfection of Single Crystals of Stable Bismuth Oxide Compounds. Inorg Mater, 2003, 39(11): 1365-1372.

[4] Xu X W, Liao J Y, Shen B F, et al. Formation and Elimination of Cores Bi12SiO20 Crystals[J]. Journal of the Chinese Ceramic Society, 1994, （6）：597-585.

[5] Tian Q. Q., Wang X. F., Yu C. L., et al. Domain Structure and defects of highly ordered Bi4Si3O12 micro-crystals [J]. Science in China, 2009, 52(8): 2295-2301.

DOI: 10.1007/s11431-008-0344-x

[6] Zhang Z G, Wang X F, Tian QQ. Grain orientation distribution and development of grain line in highly ordered Bi4Si3O12 micro-crystals. Science of sintering, 2009, 41 (1): 51-59.

DOI: 10.2298/sos1001051z

[7] Fei Y T, Fan S J, Sun R Y, et al. Crystallizing behavior of Bi2O3-SiO2 system [J]. J Mater Sci Lett, 2000, 19(10): 893-895.

[8] Wang Y, Wang X F, Yu C L, et al. Study on Solid-State Reaction in Bi2O3-SiO2 System[J]. Bulletin of the Chinese Ceramic Society, 2007, 26（2）：378-381.

[9] Fei Yiting FAN Shij. Progress in Study on Phase Relation and Crystallization Behavior of Bi2O3-SiO2 System[J]. Journal of Inorganic Materials, 1997, l2（4）：469-476.

[10] Li X J; Yang J K; Yang, J C, et al. Unexpected irreversible damage of an asymmetric bismuth silicate photorefractive spatial light modulator[J]. Applied Optics, 2007, 46(18): 3774-3779.

DOI: 10.1364/ao.46.003774

[11] Liu Chao, ZHang Changlong, ZHou Weining, et al. Hydrothermal Growth of Colorless BSO Crystals[J]. Journal of Synthetic Crystals, 2009, (2)：12-17.

[12] Guo H. W., Wang X. F., Gao D. N. A novel method for preparation of pure Bi2SiO5 crystals [J]. Materials Letters, 2012, 67(1): 280-282.

DOI: 10.1016/j.matlet.2011.09.088

[13] Guo Hongxin. Study on the Molten properties and measurement [D]. Institute of Physics Chinese academy of sciences, (1994).

[14] Wang Changzhen. Study on Metallurgical Physical Chemistry [M]. Beijing, 2002: 278-309.

[15] Ren Wenhui, Lin Zhiqun, Peng Daolin. On the Relationship between the Liquid Surface Tension and the Temperature and the Concentration [J], Journal of Hunan Agricultural University(Natural Sciences), 2004, 30(1): 20-33.

[16] Tan Rongri. The Physical Properties of Molten xBi2O3-(1-x) GeO2 System [D]. Guizhou university, (2007).

[17] Yang Nanru. Test Methods of Inorganic Nonmetal Material [M]. Wuhan University of Technology Press, 2009: 232-262.

[18] Hu Zhiqiang. Based Course of Inorganic Materials Science [M]. Beijing: Chemical Industry Press, 2004: 84-86, 232.
