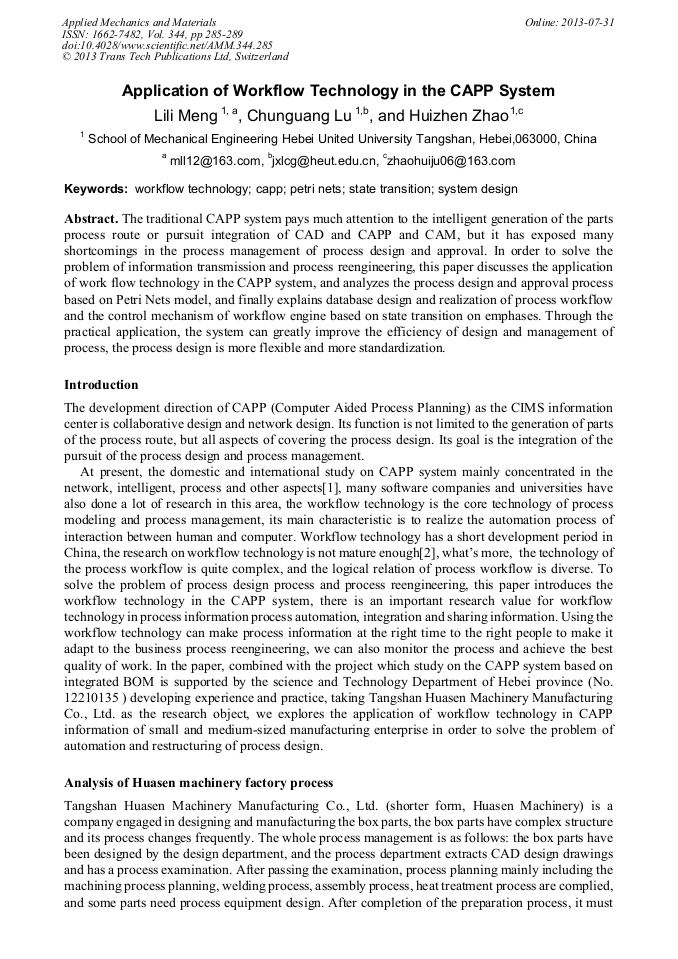

Application of Workflow Technology in the CAPP System

Abstract:

The traditional CAPP system pays much attention to the intelligent generation of the parts process route or pursuit integration of CAD and CAPP and CAM, but it has exposed many shortcomings in the process management of process design and approval. In order to solve the problem of information transmission and process reengineering, this paper discusses the application of work flow technology in the CAPP system, and analyzes the process design and approval process based on Petri Nets model, and finally explains database design and realization of process workflow and the control mechanism of workflow engine based on state transition on emphases. Through the practical application, the system can greatly improve the efficiency of design and management of process, the process design is more flexible and more standardization.

• Periodical: Applied Mechanics and Materials (Volume 344)
• Pages: 285-289
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.344.285
• Online since: July 2013
• Authors: Li Li Meng, Chun Guang Lu, Hui Zhen Zhao
• Keywords: CAPP, Petri Net, State Transition, System Design, Workflow Technology

References

[1] Long Chen, Jianwei He. Planning Way for Process Sequence for Axis-symmetric Parts [J]. Equipment manufacturing technology . 2010, (3): 105- 109( In Chinese).

[2] Jiaming Zhang, Jianhua Liu, Ruxin Ning. Assembly ProcessGeneration and Information Integration Technique Based onW orkflow[J]. Mechanical Science and Technology . 2010, 29(9): 1145- 1151( In Chinese).

[3] Jiaojian Liu, Wenhe Liao, Yu Guo, Feng Yu. Research on the Proliferated Process Adjusting Model Based on Workflow [J]. China mechanical engineering . 2009, 20(8): 956- 960( In Chinese).

[4] Qiang Hang, Lanfen Lin, Jinxiang Dong. A process workflow system based on Agent software [J]. Journal of computer-aided design and computer graphics . 2006, 13(8): 696- 700( In Chinese).
