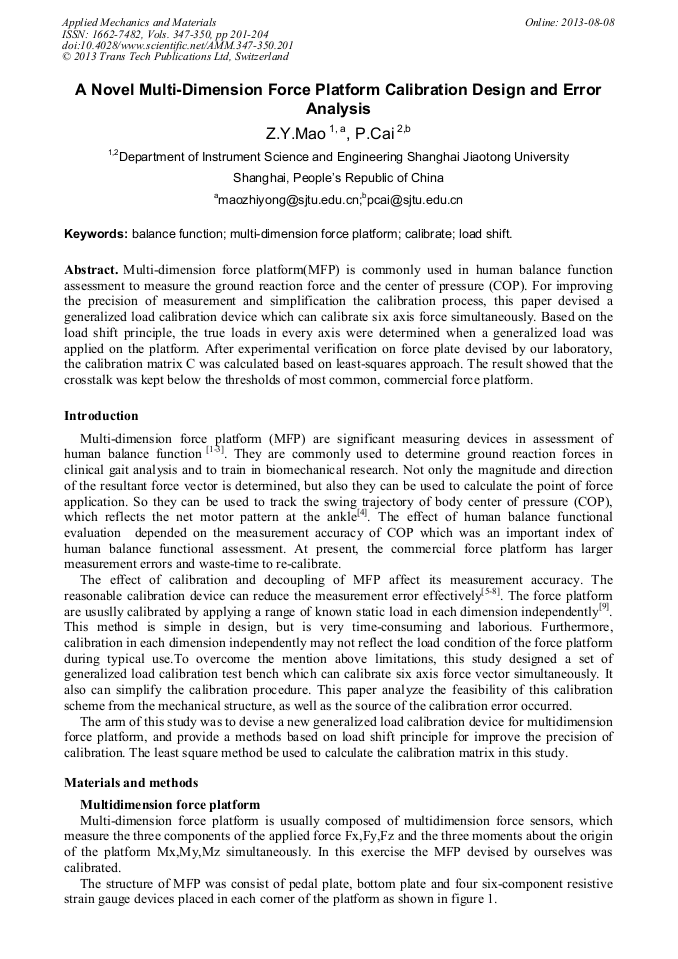

A Novel Multi-Dimension Force Platform Calibration Design and Error Analysis

Abstract:

Multi-dimension force platform (MFP) is commonly used in human balance function assessment to measure the ground reaction force and the center of pressure (COP). For improving the precision of measurement and simplification the calibration process, this paper devised a generalized load calibration device which can calibrate six axis force simultaneously. Based on the load shift principle, the true loads in every axis were determined when a generalized load was applied on the platform. After experimental verification on force plate devised by our laboratory, the calibration matrix C was calculated based on least-squares approach. The result showed that the crosstalk was kept below the thresholds of most common, commercial force platform.

• Periodical: Applied Mechanics and Materials (Volumes 347-350)
• Pages: 201-204
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.347-350.201
• Online since: August 2013
• Authors: Z.Y. Mao, Ping Cai
• Keywords: Balance Function, Calibrate, Load Shift, Multi-Dimension Force Platform

References

[1] Angelo Cappello, Fabio bagala. Non-linear re-calibration of foece plateforms. Gait&Posture, vol. 33, 2011, pp.724-726.

DOI: 10.1016/j.gaitpost.2011.02.008

[2] Steven H. Collins, Peter G. Adamczyk. A simple method for calibrating force plates and force treadmills using an instrumented pole. Gait&Posture vol. 29, 2009, pp.59-64.

DOI: 10.1016/j.gaitpost.2008.06.010

[3] McCaw ST, DeVita P. Errors in alignment of center of pressure and foot coordinates affect predicted lower extremity torques. J. Biomechanics 1995. vol28.

DOI: 10.1016/0021-9290(94)00151-s

[4] Jonathan Ache Dias. Validity of a new stabilometric force platform for postural balance evaluation. Rev Bras Cineantropom Desempenho Hum vol13 2011, pp.367-372.

[5] Chockalinagam N, Giakas, lossifidou A. Do strain gauge force platforms need in situ correction? Gait&Posture vol16, 2002, pp.233-7.

DOI: 10.1016/s0966-6362(02)00017-6

[6] Andrea Cedraro, Angelo Cappello. A portable system for in–situ re-calibration of force platforms: Theoretical validation. Gait&Posture vol28, 2008, pp.488-494.

DOI: 10.1016/j.gaitpost.2008.03.006

[7] Heinz-Bodo Schmiedmayer. Parameters influencing the accuracy of the point of force application determined with piezoelectric force plates. J. Biomechanics vol32, 1999, pp.1237-1242.

DOI: 10.1016/s0021-9290(99)00109-8

[8] M.G. Hall H.E. Fleming M.J. Dolan S.F.D. Millbank and J.P. Paul. Static in situ calabration of force plates. J. Biomechanics, vol29, 1996, pp.659-665.

DOI: 10.1016/0021-9290(95)00109-3

[9] Gert S. Faber, Chien-Chi Chang. A force plate based method for the calibration of force/moment sensors. J. Biomechanics vol45, 2012, pp.1332-1338.

DOI: 10.1016/j.jbiomech.2012.01.024
