Reinforcement and Fiber to Induce Ductile Behavior of Ultra High Performance Steel Fiber Concrete

Abstract:

To induce the ductile behavior of ultra high performance concrete beams, the experiments to find out the best composition of volume fraction of steel fiber and ratio of reinforcement bar were carried out. 15 UHPC beams which have various combinations of volume fraction of steel fiber and ratio of reinforcement bar. The reinforcement bars was consist of 2×1, 3×3, 4×4, 5×4. The volume fractions of steel fibers were 0%, 0.7%, 1%, 1.5%, 2%. The beam which has 0% volume fraction with the close placement reinforcement bar has little effect on ductile behavior. At least 0.7% volume fraction with the close placement reinforcement bar guarantees the ductile behavior of UHPC beam.

You might also be interested in these eBooks

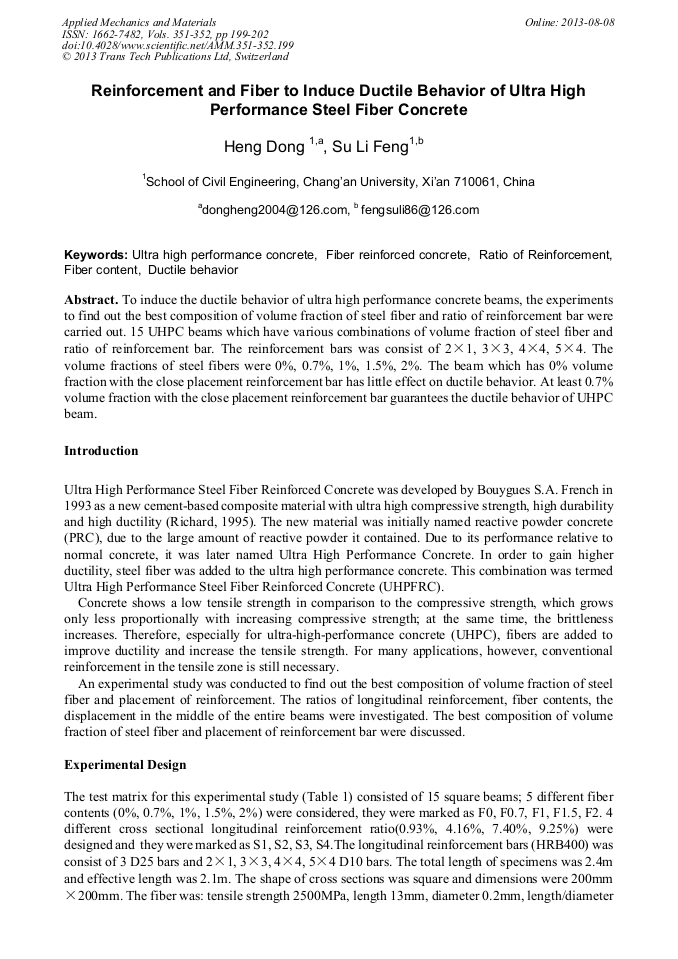

View Preview

Info:

Periodical:

Applied Mechanics and Materials (Volumes 351-352)

Pages:

199-202

DOI:

https://doi.org/10.4028/www.scientific.net/AMM.351-352.199

Citation:

Cite this paper

Online since:

August 2013

Authors:

Heng Dong, Su Li Feng

Keywords:

Ductile Behavior, Fiber Content, Fiber Reinforced Concrete (FRC), Ratio of Reinforcement, Ultra-High Performance Concrete

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] Torsten Leutbecher, Ekkehard Fehling, ACI Structural Journal, Vol. 109-S24(2012), pp.253-263.

Google Scholar

[2] Yun Mook Lim, Victor C. Li, Cement and Concrete Composites 19(1997), pp.373-385.

Google Scholar

[3] Victor C. Li, H. Lorii, P. Kabele, T. Kanda, Y.M. Lim, Repair and retrofit with engineered cementitious composites, Engineering Fracture Mechanics 65(2000), pp.317-334.

DOI: 10.1016/s0013-7944(99)00117-4

Google Scholar

[4] Kendall K., Howard A.H., Birchall J. D, Philos. Trans. R. Soc. London, A 310, 129(1983).

Google Scholar

[5] Odler I.: Special Inorganic Cements, Chpt. 13. 3. MDF cements, E and FN Spon, London, New York (2000).

Google Scholar

[6] Richard, P. and Cheyrezy, M. H, Reactive Powder Concretes with High Ductility and 200-800MPa Compressive Strength, ACI Spring Convention, San Francisco, ACI SP 144-24(1994), pp.507-518.

DOI: 10.14359/4536

Google Scholar

[7] O. Bayard and O. Ple, Fracture Mechanics of Reactive Powder Concrete, Material Modelling and Experimental Investigations, Engineering Fracture Mechanics (2002).

DOI: 10.1016/s0013-7944(02)00153-4

Google Scholar

[8] N. Gowripalan, I. Dumitru, G. Smorchevsky, R. Marks and B. D'Souza: Development of Modified Reactive Powder Concrete(RPC) for Precast Concrete Applications in Australia, Conference Proceedings, Concrete99: Our Concrete Environment(1999).

Google Scholar
