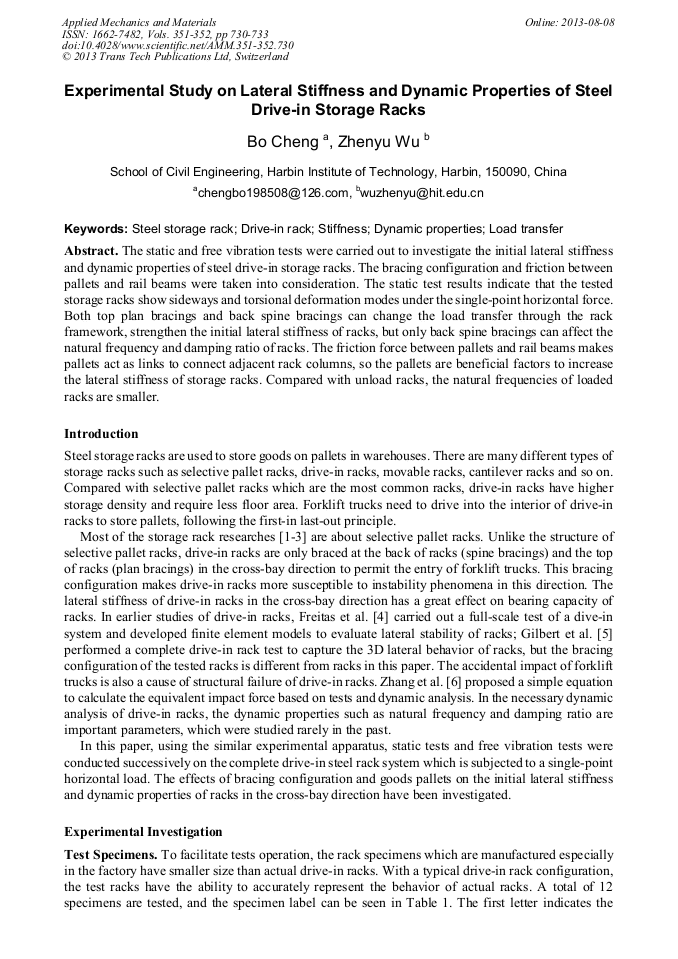

Experimental Study on Lateral Stiffness and Dynamic Properties of Steel Drive-in Storage Racks

Abstract:

The static and free vibration tests were carried out to investigate the initial lateral stiffness and dynamic properties of steel drive-in storage racks. The bracing configuration and friction between pallets and rail beams were taken into consideration. The static test results indicate that the tested storage racks show sideways and torsional deformation modes under the single-point horizontal force. Both top plan bracings and back spine bracings can change the load transfer through the rack framework, strengthen the initial lateral stiffness of racks, but only back spine bracings can affect the natural frequency and damping ratio of racks. The friction force between pallets and rail beams makes pallets act as links to connect adjacent rack columns, so the pallets are beneficial factors to increase the lateral stiffness of storage racks. Compared with unload racks, the natural frequencies of loaded racks are smaller.

• Periodical: Applied Mechanics and Materials (Volumes 351-352)
• Pages: 730-733
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.351-352.730
• Online since: August 2013
• Authors: Bo Cheng, Zhen Yu Wu
• Keywords: Drive-In Rack, Dynamic Propertry, Load Transfer, Steel Storage Rack, Stiffness

References

[1] A. Baldassino, C. Bernuzzi: Thin-Walled Struct. Vol. 37 (2000), pp.277-304.

[2] R.G. Beale, M.H.R. Godley: Comput. Struct. Vol. 82 (2004), pp.2145-2156.

[3] A.L.Y. Ng, R.G. Beale, M.H.R. Godley: Eng. Struct. Vol. 31 (2009), pp.1460-1468.

[4] A.M.S. Freitas, F.T. Souza, M.S.R. Freitas: Thin-Walled Struct. Vol. 48 (2010), pp.110-117.

[5] B.P. Gilbert, K.J.R. Rasmussen: J. Struct. Eng. Vol. 138 (2012), pp.135-147.

[6] H. Zhang, B.P. Gilbert, K.J.R. Rasmussen: J. Struct. Eng. Vol. 138 (2012), pp.148-156.
