Harmonic Gear Modeled in SolidWorks

Abstract:

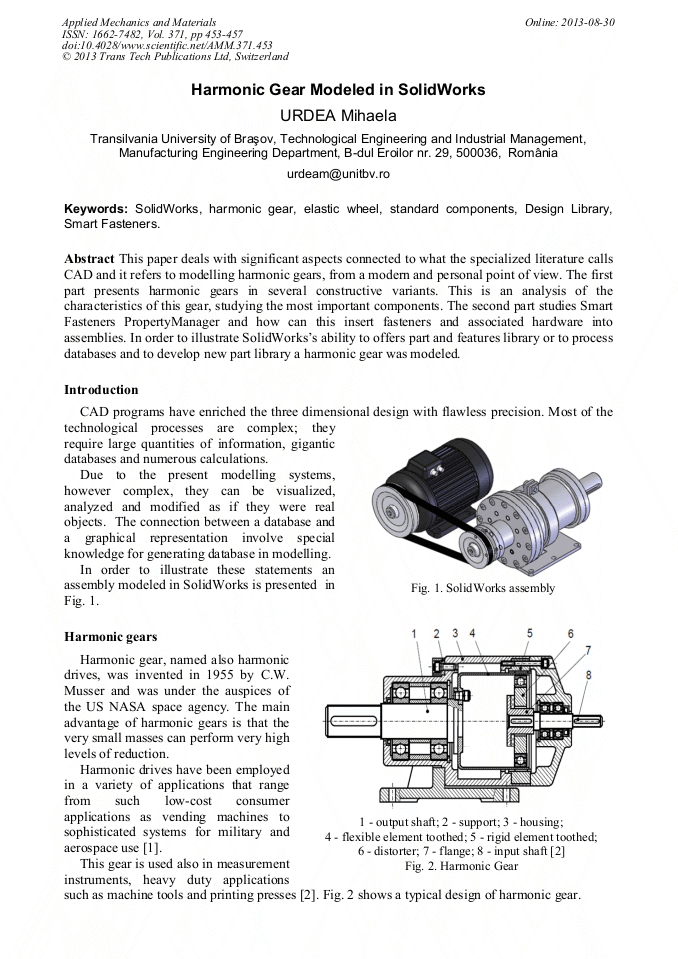

This paper deals with significant aspects connected to what the specialized literature calls CAD and it refers to modeling harmonic gears, from a modern and personal point of view. The first part presents harmonic gears in several constructive variants. This is an analysis of the characteristics of this gear, studying the most important components. The second part studies Smart Fasteners PropertyManager and how can this insert fasteners and associated hardware into assemblies. In order to illustrate SolidWorkss ability to offers part and features library or to process databases and to develop new part library a harmonic gear was modeled.

You might also be interested in these eBooks

View Preview

Info:

Periodical:

Applied Mechanics and Materials (Volume 371)

Pages:

453-457

DOI:

https://doi.org/10.4028/www.scientific.net/AMM.371.453

Citation:

Cite this paper

Online since:

August 2013

Authors:

Mihaela Urdea

Keywords:

Design Library, Elastic Wheel, Harmonic Gear, Smart Fasteners, SolidWorks, Standard Components
