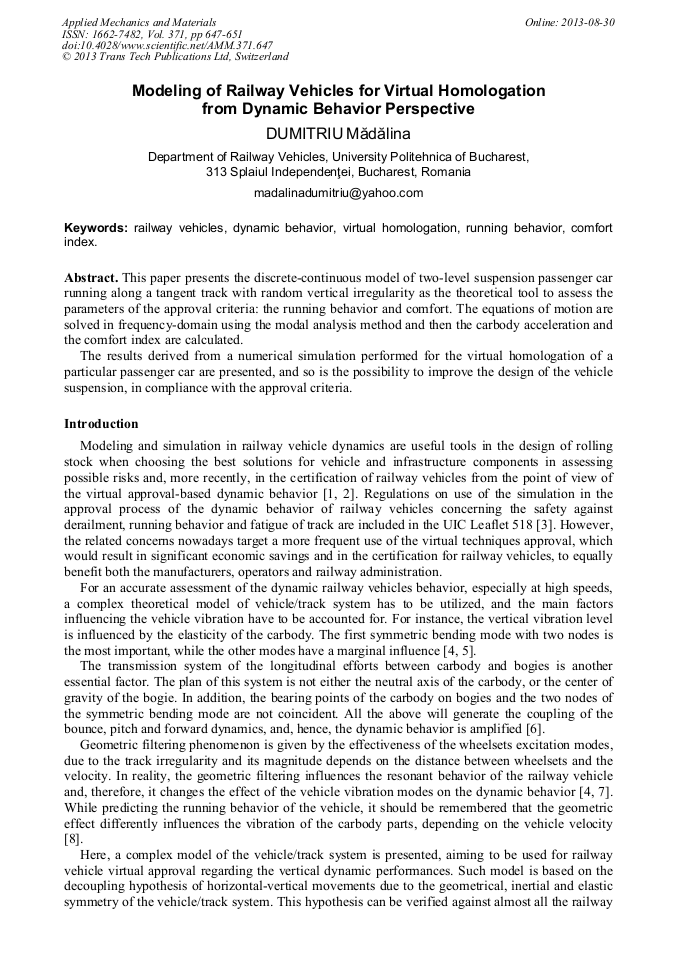

Modeling of Railway Vehicles for Virtual Homologation from Dynamic Behavior Perspective

Abstract:

Modeling and simulation in railway vehicle dynamics is a useful tool in the design of rolling stock when choosing the best solutions for vehicle and infrastructure components in assessing possible risks and, more recently, in the certification of railway vehicles from the point of view of dynamic behavior based on virtual approval. This paper presents the discrete-continuous model of two-level suspension passenger car running along a tangent track with random vertical irregularity as the theoretical tool to asses the parameters of the approval criteria: the running behavior and comfort. The equations of motion are solved in frequency-domain using the modal analysis method and then the carbody acceleration and the comfort index are calculated. The results derived from a numerical simulation performed for the virtual homologation of a particular passenger car are presented, and so is the possibility to improve the design of the vehicle suspension, in compliance with the approval criteria.

• Periodical: Applied Mechanics and Materials (Volume 371)
• Pages: 647-651
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.371.647
• Online since: August 2013
• Authors: Madalina Dumitriu
• Keywords: Comfort Index, Dynamic Behavior, Railway Vehicles, Running Behavior, Virtual Homologation

References

[1] C. Funfschilling, G. Perrin, S. Kraft, Propagation of variability in railway dynamic simulations: application to virtual homologation, Vehicle System Dynamics. 50 (2012), 245-261.

DOI: 10.1080/00423114.2012.676757

[2] L. Mazzola, S. Alfi, S. Bruni, The Influence of Modelling of the Suspension Components on the Virtual Homologation of a Railway Vehicle, Proceedings of the first international conference on Railway Technology: Research, Development and Maintenance, Las Palmas de Gran Canaria, Spain, 2012, doi: 10. 4230/ccp. 98. 75.

DOI: 10.4203/ccp.98.75

[3] UIC Leaflet 518, Testing and approval of railway vehicles from the point of view of their dynamic behaviour – Safety – Track fatigue – Running behaviour, 4th edition, September (2009).

[4] G. Diana, F. Cheli, C. Andrea, The development of a numerical model for railway vehicles comfort assessment through comparison with experimental quantities, Vehicle System Dynamics. 38 (2002), 165-183.

DOI: 10.1076/vesd.38.3.165.8287

[5] F. Cheli, R. Corradi, On rail vehicle vibrations induced by track unevenness: Analysis of the excitation mechanism, Journal of Sound and Vibration. 330 (2011) 3744-3765.

DOI: 10.1016/j.jsv.2011.02.025

[6] I. Sebeşan, T. Mazilu, Vibrations of railway vehicles, MatrixRom Publishing House, Bucharest, (2010).

[7] J. Zhou, R. Goodall, L. Ren, H. Zhang, Influences of car body vertical flexibility on ride quality of passenger railway vehicles, Proceedings of the Institution of Mechanical Engineers, Part F: Journal of Rail and Rapid Transit. 223 (2009).

DOI: 10.1243/09544097jrrt272

[8] M. Dumitriu, Geometric filtering effect of vertical vibrations of railway vehicles, Analele Universităţii Eftimie Murgu, Resiţa, 1 (2012), 48-61.

[9] C 116 – Interaction between vehicles and track, RP 1 – Power spectral density of track irregularity, Utrecht, (1971).

[10] UIC Leaflet 513R, Guidelines for evaluating passenger comfort in relation to vibration in railway vehicle, International Union of Railways, (1994).
