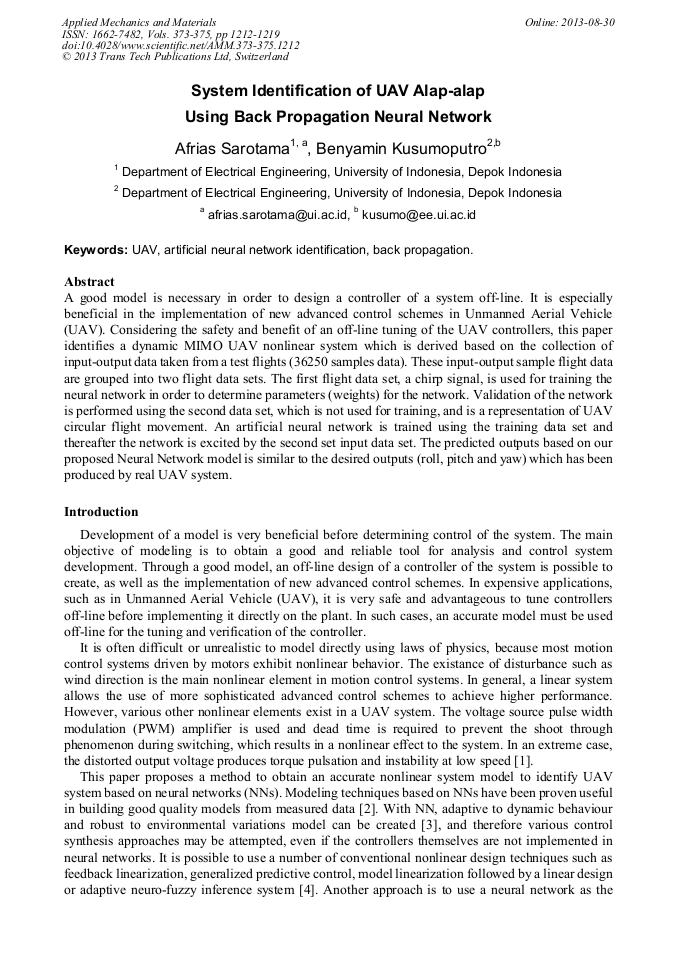

System Identification of UAV Alap-Alap Using Back Propagation Neural Network

Abstract:

A good model is necessary in order to design a controller of a system off-line. It is especially beneficial in the implementation of new advanced control schemes in Unmanned Aerial Vehicle (UAV). Considering the safety and benefit of an off-line tuning of the UAV controllers, this paper identifies a dynamic MIMO UAV nonlinear system which is derived based on the collection of input-output data taken from a test flights (36250 samples data). These input-output sample flight data are grouped into two flight data sets. The first flight data set, a chirp signal, is used for training the neural network in order to determine parameters (weights) for the network. Validation of the network is performed using the second data set, which is not used for training, and is a representation of UAV circular flight movement. An artificial neural network is trained using the training data set and thereafter the network is excited by the second set input data set. The predicted outputs based on our proposed Neural Network model is similar to the desired outputs (roll, pitch and yaw) which has been produced by real UAV system.

• Periodical: Applied Mechanics and Materials (Volumes 373-375)
• Pages: 1212-1219
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.373-375.1212
• Online since: August 2013
• Authors: Afrias Sarotama, Benyamin Kusumoputro
• Keywords: Artificial Neural Network (ANN) Identification, Back Propagation, UAV

References

[1] Il-Hwan Kim, Stanley Fok, Kingsley Fregene, Dong-Hoon Lee, Tae-Seok Oh, and David W. L. Wang(2004).

[2] Lee, R., Shen, L. (2005), System Identification of Cessna 182 Model UAV, Stanford University.

[3] Vishwas Puttige, Sreenatha Anavatti (2008), Real-time System Identification of Unmanned Aerial Vehicles: A Multi-Network Approach, Journal of Computers, Vol. 3, No. 7, July (2008).

DOI: 10.4304/jcp.3.7.31-38

[4] Sefer Kurnaz, Omer Cetin, Okyay Kaynak (2010), Adaptive neuro-fuzzy inference system based autonomous flight control, Expert Systems with Application Elsevier of unmanned air vehicles.

DOI: 10.1016/j.eswa.2009.06.009

[5] Zhang Huaguang and Quan Yongbing, Modelling, identification, and control of a class of nonlinear systems., IEEE Trans. On Fuzzy System, vol. 9, no. 2, pp.349-353, (2001).

DOI: 10.1109/91.919256

[6] K. K. Safak and O. S. Turkay, Experimental identification of universal motor dynamics using neural networks, Mechatronics, vol. 10, pp.881-896, (2000).

DOI: 10.1016/s0957-4158(99)00095-1

[7] B. M. Novakovic, Discrete time neural network synthesis using input and output activation functions, IEEE Trans. On SMC, vol. 26, no. 4, pp.533-541, (1996).

DOI: 10.1109/3477.517029

[8] D. Scroder, C. Hintz, and M. Rau, Intelegent modeling, observation, and control for nonlinear systems, , IEEE Trans. On Mechatronics, vol. 6, no. 2, pp.122-131, (2001).

DOI: 10.1109/3516.928725

[9] Sofyan, E. (1996), Aerospace Engineering Department Royal Melbourne Institute of Technology Victoria, Australia, Identification of Model Aircraft Dynamic Using Flight Testing, Phd Dissertation.

[10] MM. Nørgaard: Neural Network Based System Identification Toolbox, Tech. Report. 00-E-891, Department of Automation, Technical University of Denmark, (2000).

[11] Kumpati S . Narendra, Kannan Parthasarathy, Identification and Control of Dynamical Systems Using Neural Net-works, IEEE Transaction on Neural Networks, Vol. 1 no. 1, March (1990).

DOI: 10.1109/72.80202
