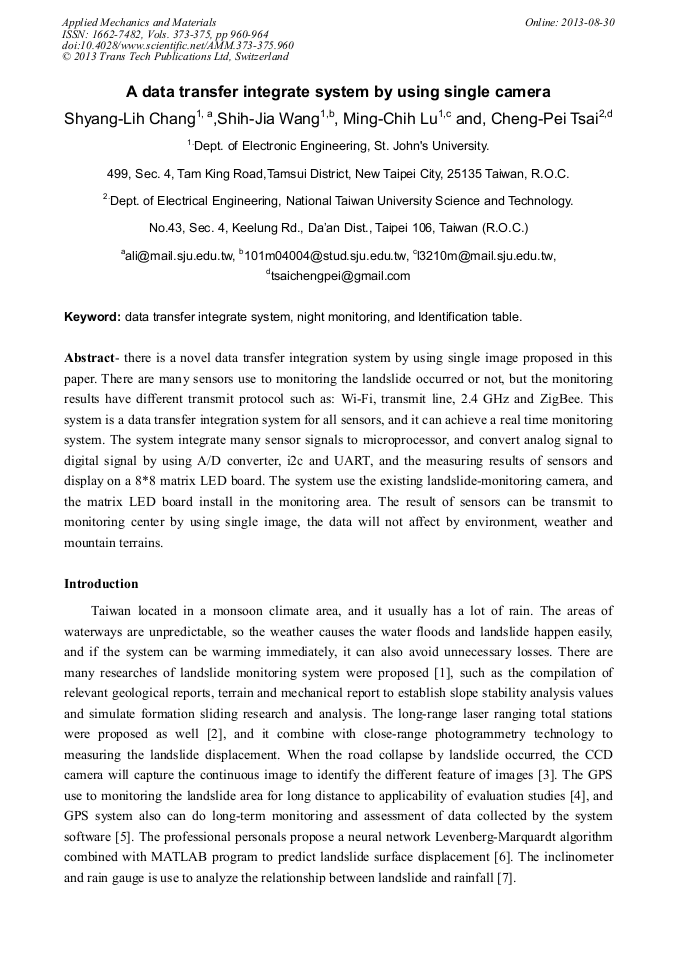

A Data Transfer Integrate System by Using Single Camera

Abstract:

there is a novel data transfer integration system by using single image proposed in this paper. There are many sensors use to monitoring the landslide occurred or not, but the monitoring results have different transmit protocol such as: Wi-Fi, transmit line, 2.4 GHz and ZigBee. This system is a data transfer integration system for all sensors, and it can achieve a real time monitoring system. The system integrate many sensor signals to microprocessor, and convert analog signal to digital signal by using A/D converter, i2c and UART, and the measuring results of sensors and display on a 8*8 matrix LED board. The system use the existing landslide-monitoring camera, and the matrix LED board install in the monitoring area. The result of sensors can be transmit to monitoring center by using single image, the data will not affect by environment, weather and mountain terrains.

• Periodical: Applied Mechanics and Materials (Volumes 373-375)
• Pages: 960-964
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.373-375.960
• Online since: August 2013
• Authors: Shyang Lih Chang, Shih Jia Wang, Ming Chih Lu, Cheng Pei Tsai
• Keywords: Data Transfer Integrate System, Identification Table, Night Monitoring

References

[1] Wei. Chih. Lu, Establishment of standard operation procedures in groundwater drain facilities maintenance –for Lisan landslide, Master thesis, The National Chung-Hsing University Department of Civil Engineering, Taiwan, R.O. C , (2005).

[2] Ming. Yang. Wu, Application of Total Station and Terrestrial Photogrammetry for Landslide Hazard Geography Survey, Master thesis, The National Chung -Hsing University Department of Civil Engineering, Taiwan, R.O. C , (2007).

[3] Chia. Ming. Li, The Study on Slope Slip Monitoring by Continual Close-Range Image, Master thesis, Feng-Chia University, Taiwan, (2009).

[4] Jian. Wei. Shen, A Feasibility Study of Using GPS Long-Term Monitoring for Surface Displacement on Landslide Area, Master thesis, The National Chung -Hsing University Department of Civil Engineering , Taiwan, R.O. C, (2004).

[5] Po. Sun. Chu, The Applicability Study for Landslide Monitoring with GPS, Master thesis, Chung Yuan Christian University Department of Civil Engineering, Taiwan, R.O. C, (2004).

[6] Lin. Guang. Rong, Applying Back Propagation Neural Network on Displacement Characteristic Assessment in Shanzongliao Landslide Area, Master thesis, National Pingtung University of Science and Technology, Taiwan, (2009).

[7] Xue. Qun. Chang, A case study of the Numerical Relationships between Landslide Movements and Rainfall Effects, Master thesis, Chung Yuan Christian University, Taiwan, (2006).
