Topological Optimization Design of Top Beam of the Longmen Milling Machine Based on Hyperworks

Abstract:

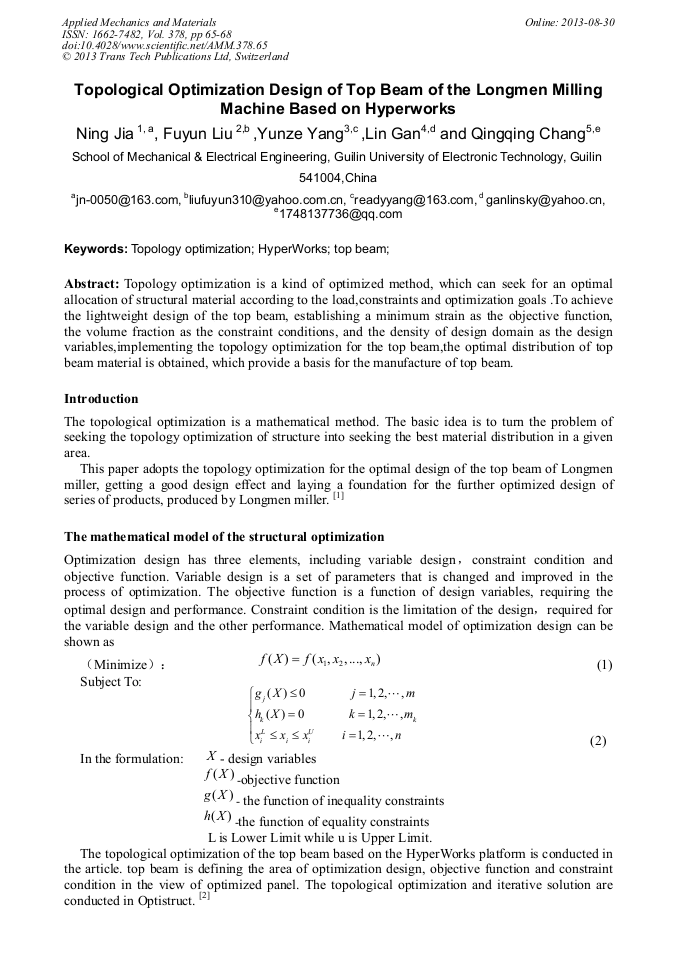

Topology optimization is a kind of optimized method, which can seek for an optimal allocation of structural material according to the load,constraints and optimization goals .To achieve the lightweight design of the top beam, establishing a minimum strain as the objective function, the volume fraction as the constraint conditions, and the density of design domain as the design variables,implementing the topology optimization for the top beam,the optimal distribution of top beam material is obtained, which provide a basis for the manufacture of top beam.
