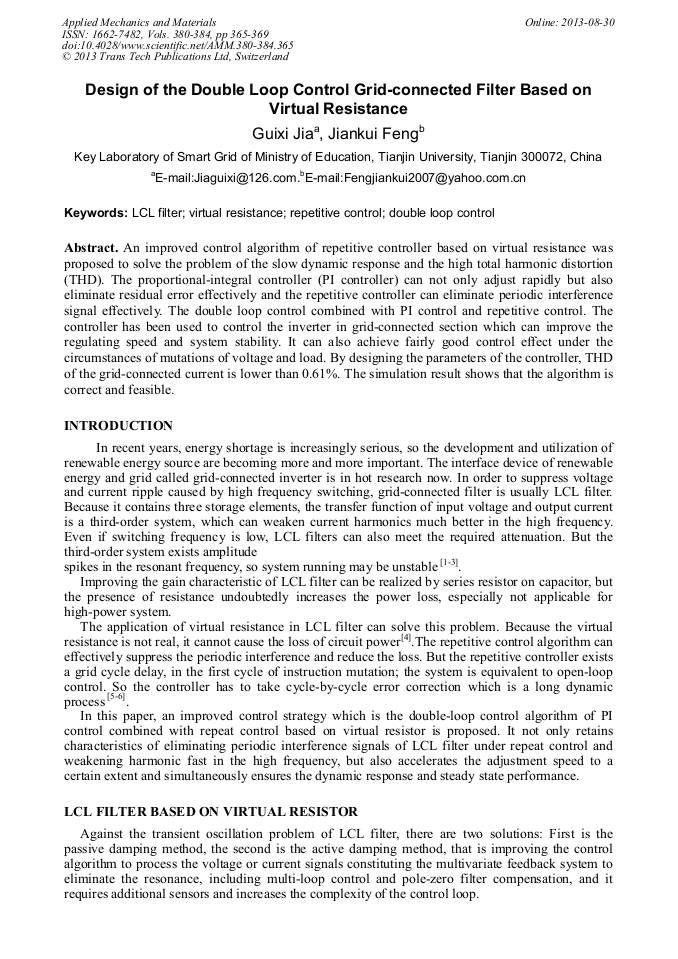

Design of the Double Loop Control Grid-Connected Filter Based on Virtual Resistance

Abstract:

An improved control algorithm of repetitive controller based on virtual resistance was proposed to solve the problem of the slow dynamic response and the high total harmonic distortion (THD). The proportional-integral controller (PI controller) can not only adjust rapidly but also eliminate residual error effectively and the repetitive controller can eliminate periodic interference signal effectively. The double loop control combined with PI control and repetitive control. The controller has been used to control the inverter in grid-connected section which can improve the regulating speed and system stability. It can also achieve fairly good control effect under the circumstances of mutations of voltage and load. By designing the parameters of the controller, THD of the grid-connected current is lower than 0.61%. The simulation result shows that the algorithm is correct and feasible.

• Periodical: Applied Mechanics and Materials (Volumes 380-384)
• Pages: 365-369
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.380-384.365
• Online since: August 2013
• Authors: Gui Xi Jia, Jian Kui Feng
• Keywords: Double Loop Control, LCL Filter, Repetitive Control, Virtual Resistance

References

[1] Bierhoff M H, Fuchs W F. Active damping for three-phase PWM rectifiers with high-order line-side filters. IEEE Transaction. On Industrial Electronics, 2009, 56(2): 371-379.

DOI: 10.1109/tie.2008.2007950

[2] Wu Eric Lehn, Peter W. Digital current control of a voltage source converter with active damping of LCL resonance. IEEE Transaction on Power Electromocs, 2006, 21(5): 1364-1373.

DOI: 10.1109/tpel.2006.880271

[3] Twining E, Holmes D G. Grid current regulation of a three-phase voltage source inverter with an LCL input filter. IEEE Transactions on Power Electronics, 2003, 18(3): 888-895.

DOI: 10.1109/tpel.2003.810838

[4] Fouad SALHA_ Frederic COLAS_ Xavier GUILLAUD, Virtual Resistance Principle for the Over current Protection of PWM Voltage Source Inverter, 2010, 1~6.

DOI: 10.1109/isgteurope.2010.5638965

[5] Tae-Yong Doh, Jung Rae Ryoo, Add-on type repetitive controller design for the feedback control system satisfying the robust performance condition, Asian Control Conference, 2009, 1582～1587.

DOI: 10.1109/amc.2002.1026912

[6] D.M. Vilathgamuwa, Javasinghe, Virtual Resistance Based Active Damping Solution for Constant Power Instability in AC Micro grids, IEEE, 2011, 3646~3651.

[7] Ding Hui. The Design and Simulation Research on MPPT and Repetitive Control Strategy of Single-Phase Photovoltaic Grid-Connected System. Tianjin: School of Electrical Engineering and Automation, Tianjin University, 2011 (in Chinese).

[8] Wang donglin, The sine wave based on repetitive control algorithm [Doctoral Dissertation], Hefei University of Technology, 2003(in Chinese).
