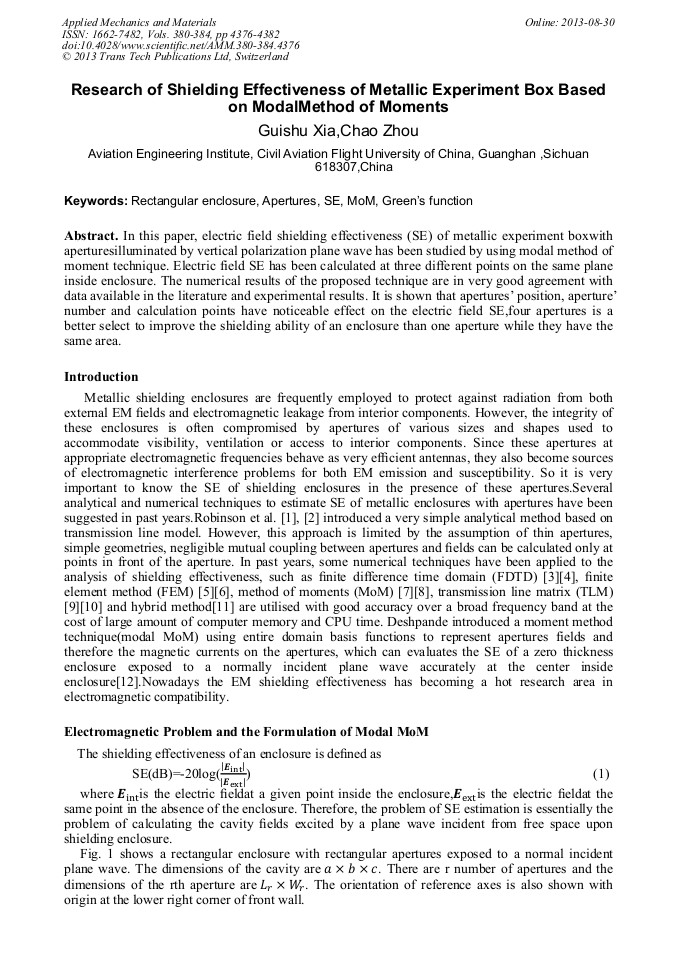

Research of Shielding Effectiveness of Metallic Experiment Box Based on ModalMethod of Moments

Abstract:

In this paper, electric field shielding effectiveness (SE) of metallic experiment boxwith aperturesilluminated by vertical polarization plane wave has been studied by using modal method of moment technique. Electric field SE has been calculated at three different points on the same plane inside enclosure. The numerical results of the proposed technique are in very good agreement with data available in the literature and experimental results. It is shown that apertures position, aperture number and calculation points have noticeable effect on the electric field SE,four apertures is a better select to improve the shielding ability of an enclosure than one aperture while they have the same area.
