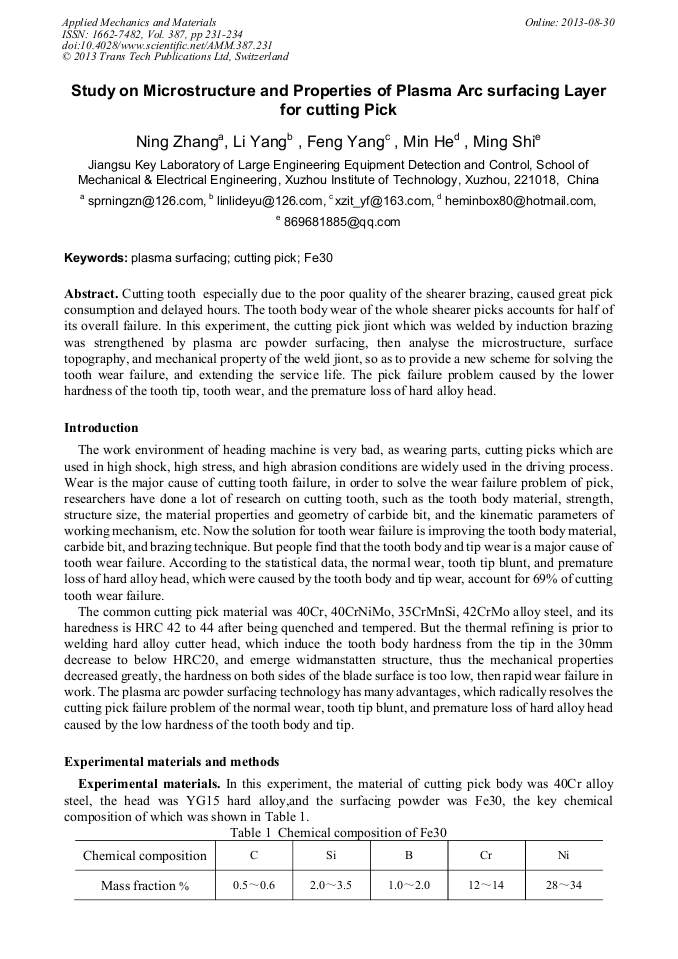

Study on Microstructure and Properties of Plasma Arc Surfacing Layer for Cutting Pick

Abstract:

Cutting tooth especially due to the poor quality of the shearer brazing, caused great pick consumption and delayed hours. The tooth body wear of the whole shearer picks accounts for half of its overall failure. In this experiment, the cutting pick jiont which was welded by induction brazing was strengthened by plasma arc powder surfacing, then analyse the microstructure, surface topography, and mechanical property of the weld jiont, so as to provide a new scheme for solving the tooth wear failure, and extending the service life. The pick failure problem caused by the lower hardness of the tooth tip, tooth wear, and the premature loss of hard alloy head.

• Periodical: Applied Mechanics and Materials (Volume 387)
• Pages: 231-234
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.387.231
• Online since: August 2013
• Authors: Ning Zhang, Li Yang, Feng Yang, Min He, Ming Shi
• Keywords: Cutting Pick, Fe30, Plasma Surfacing

References

[1] L.J. Yang, The effect of specimen thickness on the hardness of plasma surface hardened ASSAB 760 steel specimens[J]. Journal of Materials Processing Technology. 2007, 185: 113-119.

DOI: 10.1016/j.jmatprotec.2006.03.117

[2] Bin Wang, Wenbin Xue, Jie Wu, Xiaoyue Jin, Ming Hua, Zhenglong Wu, Characterization of surface hardened layers on Q235 low-carbon steel treated by plasma electrolytic borocarburizing[J]. Journal of Alloys and Compounds. 2013, 578: 162-169.

DOI: 10.1016/j.jallcom.2013.04.153

[3] B Podgornik, J Vižintin, V Leskovšek, Wear properties of induction hardened, conventional plasma nitrided and pulse plasma nitrided AISI 4140 steel in dry sliding conditions[J]. Wear, 1999. 232: 231-242.

DOI: 10.1016/s0043-1648(99)00151-9

[4] M.K. Lei, Z.L. Zhang, Plasma source ion nitriding of pure iron: formation of an iron nitride layer and hardened diffusion layer at low temperature[J]. Surface and Coatings Technology. 1997, 91: 25.

DOI: 10.1016/s0257-8972(96)03155-6

[5] Insup Lee, Ikmin Park, Microstructures and mechanical properties of surface-hardened layer produced on SKD 61 steel by plasma radical nitriding[J]. Materials Science and Engineering. 2007, 449–451: 890-893.

DOI: 10.1016/j.msea.2006.02.412

[6] B Edenhofer, W Gräfen, J Müller-Ziller, Plasma-carburising — a surface heat treatment process for the new century[J]. Surface and Coatings Technology, 2001, 142–144: 225-234.

DOI: 10.1016/s0257-8972(01)01136-7

[7] Gyu-rak Kim, Hyunuk Lee, Ralph L. Webb, Plasma hydrophilic surface treatment for dehumidifying heat exchangers[J]. Experimental Thermal and Fluid Science, 2002, 27: 1-10.

DOI: 10.1016/s0894-1777(02)00219-4
