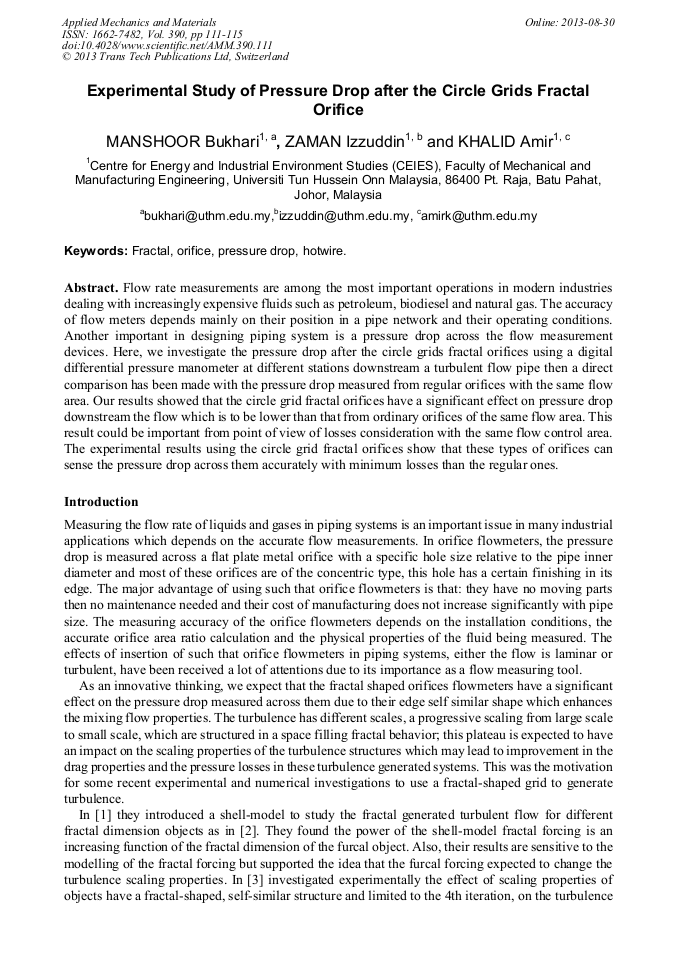

Experimental Study of Pressure Drop after the Circle Grids Fractal Orifice

Abstract:

Flow rate measurements are among the most important operations in modern industries dealing with increasingly expensive fluids such as petroleum, biodiesel and natural gas. The accuracy of flow meters depends mainly on their position in a pipe network and their operating conditions. Another important in designing piping system is a pressure drop across the flow measurement devices. Here, we investigate the pressure drop after the circle grids fractal orifices using a digital differential pressure manometer at different stations downstream a turbulent flow pipe then a direct comparison has been made with the pressure drop measured from regular orifices with the same flow area. Our results showed that the circle grid fractal orifices have a significant effect on pressure drop downstream the flow which is to be lower than that from ordinary orifices of the same flow area. This result could be important from point of view of losses consideration with the same flow control area. The experimental results using the circle grid fractal orifices show that these types of orifices can sense the pressure drop across them accurately with minimum losses than the regular ones.

• Periodical: Applied Mechanics and Materials (Volume 390)
• Pages: 111-115
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.390.111
• Online since: August 2013
• Authors: Bukhari Manshoor, Izzuddin Zaman, Amir Khalid
• Keywords: Fractal, Hotwire, Orifice, Pressure Drop

References

[1] B. Mazzi, F. Okkels, and J. Vassilicos, Shell-model approach to fractal-induced turbulence, in European Physical Journal, Vol. 28 (2002) pp.243-251.

DOI: 10.1140/epjb/e2002-00226-6

[2] D. Queiros-Conde and J.C. Vassilicos, Intermittency in turbulence and other dynamical systems, in Chap. Turbulent wakes of 3D fractal grids, Cambridge University Press. (2000).

[3] A. Staicu, B. Mazzi, J. Vassilicos, and W.V. De Water, Turbulent wakes of fractal objects, in Physical Review Vol. 67 (2003) 066306.

DOI: 10.1103/physreve.67.066306

[4] B. Manshoor and Amir Khalid, Numerical investigation of the circle grids fractal flow conditioner for orifice plate flowmeters, in Journal of Applied Mechanics and Materials, Vol. 229-231 (2012), pp.700-704.

DOI: 10.4028/www.scientific.net/amm.229-231.700

[5] M. Kearney, Engineered fractal cascades for fluid control applications, in Fractals in Engineering Proceedings. 1997. Arcachon, France.

[6] M. Kearney, et al. Application of Engineered fractals in the sugar industry, in Proc. of the 30th General Meeting of the ASSBT. (1999).
