Microgravity Experiment Research on Orbital Refueling Process in the Vane Type Tank

Abstract:

Aiming at vented orbital refueling, the microgravity experiment research on orbital refueling process (ORP) is carried out in the paper. By using the microgravity test system of orbital refueling and proper experiment means, the microgravity drop tower (DT) test of all the ORP is accomplished triumphantly, then the transformation process of fuel surface and flow characteristic are obtained, and the extrusion efficiency of the refueling tank is gotten, and the on-orbit propellant resupply performance of VTT is validated. The results indicate that, the orbital refueling in the vane type tank is absolutely feasible, and the performance of propellant management device (PMD) in the tank is good.

You might also be interested in these eBooks

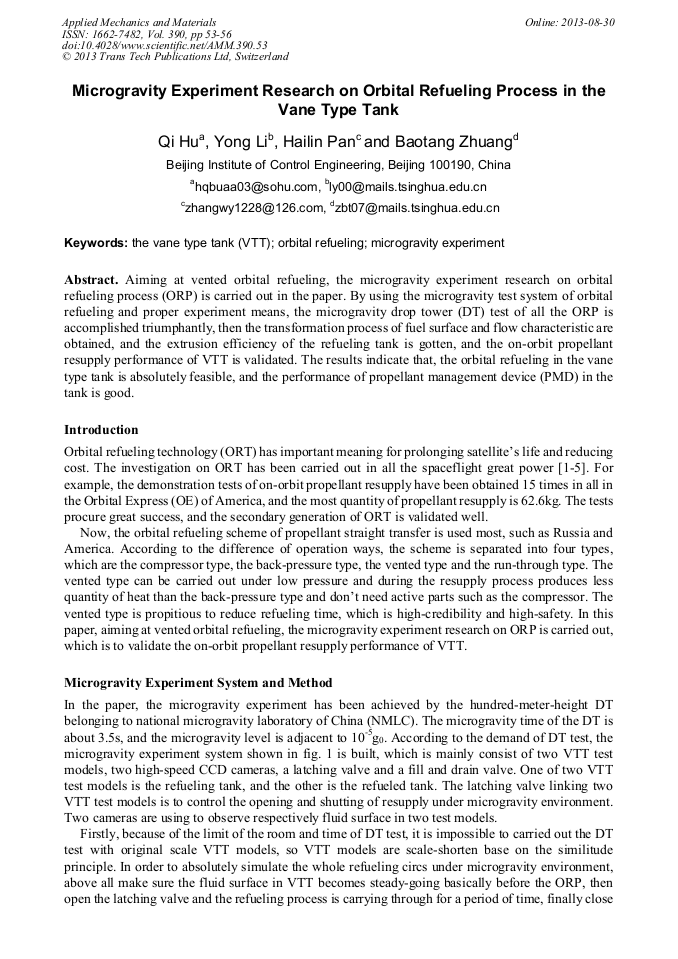

View Preview

Info:

Periodical:

Applied Mechanics and Materials (Volume 390)

Pages:

53-56

DOI:

https://doi.org/10.4028/www.scientific.net/AMM.390.53

Citation:

Cite this paper

Online since:

August 2013

Authors:

Qi Hu, Yong Li, Hai Lin Pan, Bao Tang Zhuang

Keywords:

Microgravity Experiment, Orbital Refueling, Vane Type Tank (VTT)

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] Maoliang Chen, Jie Xu. Program and revelation of Orbital Express. International Space (China), Vol. 10 (2002).

Google Scholar

[2] Chato D. J., Martin T. A. Vented Tank Resupply Experiment-Flight Test Results. AIAA97-2815, July 1997 NASA TM-10749.

DOI: 10.2514/6.1997-2815

Google Scholar

[3] J. Tegart, Z. Kirkland. On-Orbit Propellant Resupply Demonstration -Flight Test Results. AIAA 85-1233, July (1985).

DOI: 10.2514/6.1985-1233

Google Scholar

[4] S. Dominick, S. Driscol. Fluid Acquisition and Resupply Experiment (FARE I) Flight Results. AIAA 93-2424, June (1993).

DOI: 10.2514/6.1993-2424

Google Scholar

[5] Michael D Bentz, et. al. Tank Pressure Control Experiment - Results of three space flights. AIAA Paper 97-2816, July (1997).

Google Scholar

[6] Qi Hu, Yong Li, Yongbin Geng, et. al. Numerical Simulation for Capability of a Vane PMD to Manage Propellant. Aerospace Control and Application (China), Vol. 3 (2010).

Google Scholar
