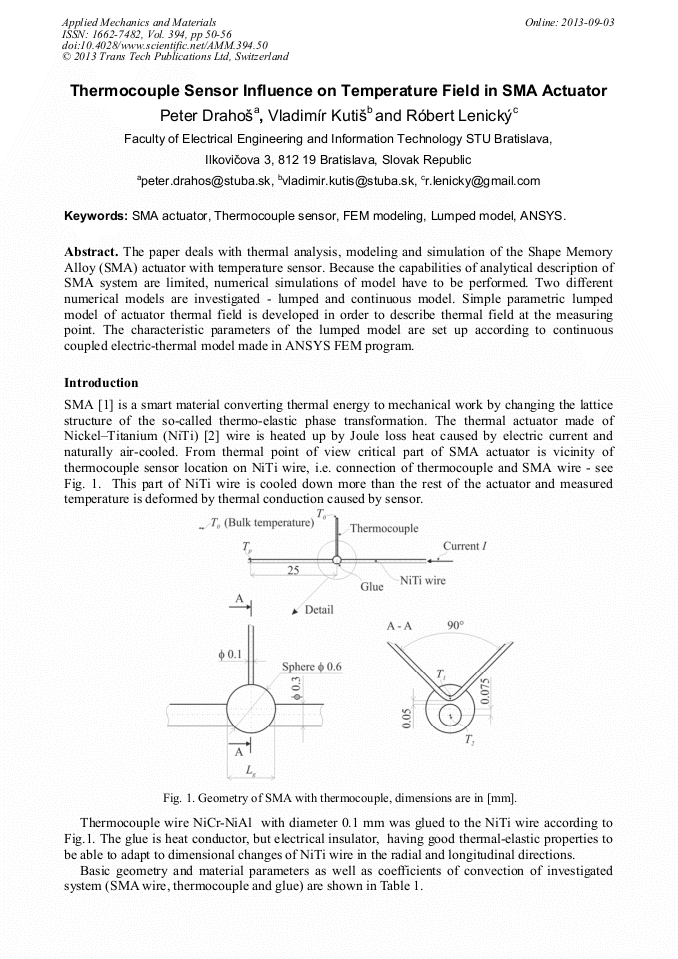

Thermocouple Sensor Influence on Temperature Field in SMA Actuator

Abstract:

The paper deals with thermal analysis, modeling and simulation of the Shape Memory Alloy (SMA) actuator with temperature sensor. Because the capabilities of analytical description of SMA system are limited, numerical simulations of model have to be performed. Two different numerical models are investigated - lumped and continuous model. Simple parametric lumped model of actuator thermal field is developed in order to describe thermal field at the measuring point. The characteristic parameters of the lumped model are set up according to continuous coupled electric-thermal model made in ANSYS FEM program.

You might also be interested in these eBooks

Mechatronics, Applied Mechanics and Energy Engineering

View Preview

Info:

Periodical:

Applied Mechanics and Materials (Volume 394)

Pages:

50-56

DOI:

https://doi.org/10.4028/www.scientific.net/AMM.394.50

Citation:

Cite this paper

Online since:

September 2013

Authors:

Peter Drahoš, Vladimír Kutiš, Róbert Lenický

Keywords:

ANSYS, FEM Modeling, Lumped Model, SMA Actuator, Thermocouple Sensor
