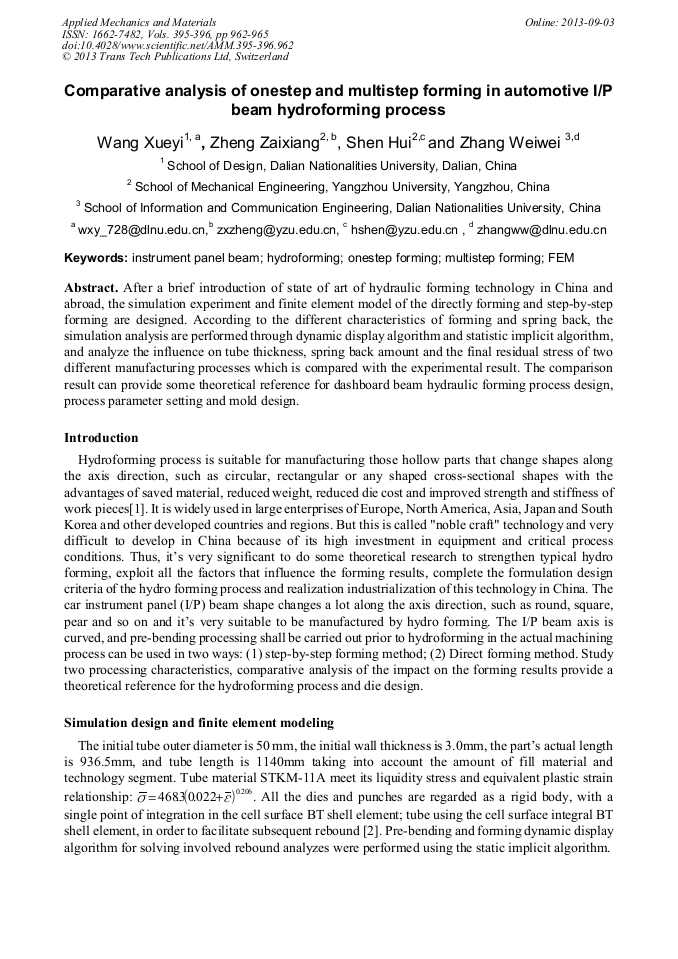

Comparative Analysis of Onestep and Multistep Forming in Automotive I/P Beam Hydroforming Process

Abstract:

After a brief introduction of state of art of hydraulic forming technology in China and abroad, the simulation experiment and finite element model of the directly forming and step-by-step forming are designed. According to the different characteristics of forming and spring back, the simulation analysis are performed through dynamic display algorithm and statistic implicit algorithm, and analyze the influence on tube thickness, spring back amount and the final residual stress of two different manufacturing processes which is compared with the experimental result. The comparison result can provide some theoretical reference for dashboard beam hydraulic forming process design, process parameter setting and mold design.

• Periodical: Applied Mechanics and Materials (Volumes 395-396)
• Pages: 962-965
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.395-396.962
• Online since: September 2013
• Authors: Xue Yi Wang, Zai Xiang Zheng, Hui Shen, Wei Wei Zhang
• Keywords: Finite Element Method (FEM), Hydroforming, Instrument Panel Beam, Multistep Forming, Onestep Forming

References

[1] Jirathearanat, S. Advanced methods for finite element simulation for part and process design in tube hydroforming[D]. Doctoral Dissertation, Ohio State University, (2004).

[2] Zheng Zaixiang. Investigation of Hydroforming Equipment Machining Profiled Cross-section Tube Used in Automobile and Process Parameters [D]. PhD thesis, Nanjing University of Science and Technology, 2007. 01.
