Compact DC-DC Power Design in Half-Bridge IGBT Driver

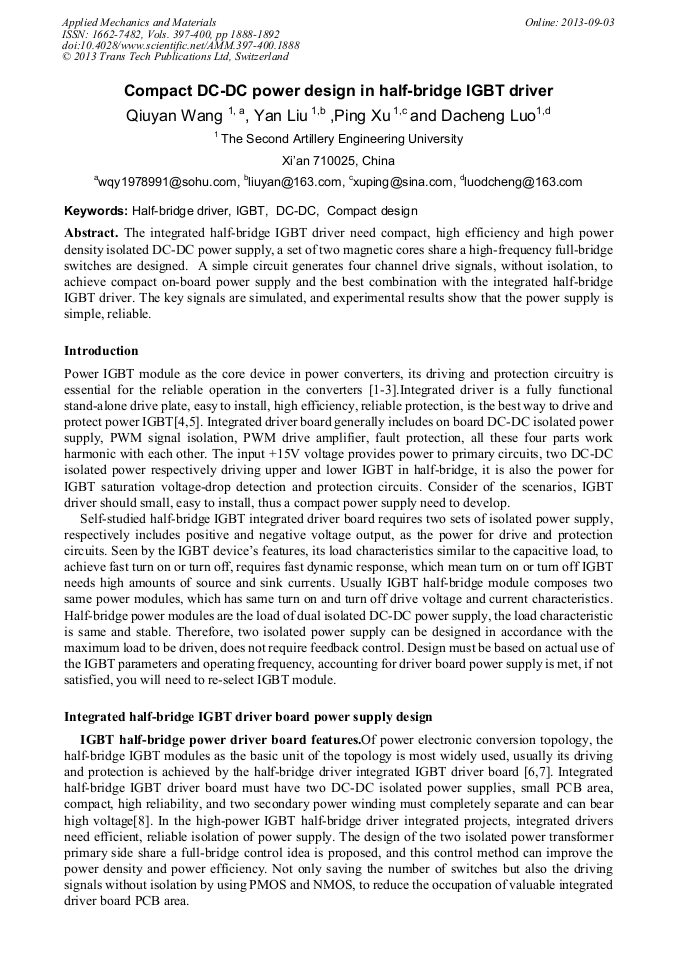

Article Preview

Abstract:

The integrated half-bridge IGBT driver need compact, high efficiency and high power density isolated DC-DC power supply, a set of two magnetic cores share a high-frequency full-bridge switches are designed. A simple circuit generates four channel drive signals, without isolation, to achieve compact on-board power supply and the best combination with the integrated half-bridge IGBT driver. The key signals are simulated, and experimental results show that the power supply is simple, reliable.

You might also be interested in these eBooks
Advanced Design and Manufacturing Technology III View Preview

Info:

Periodical:

Applied Mechanics and Materials (Volumes 397-400)

Pages:

1888-1892

DOI:

https://doi.org/10.4028/www.scientific.net/AMM.397-400.1888

Citation:

Cite this paper

Online since:

September 2013

Authors:

Qiu Yan Wang, Yan Liu, Ping Xu, Da Cheng Luo

Keywords:

Compact Design, DC/DC, Half-Bridge Driver, Insulated Gate Bipolar Transistor (IGBT)
