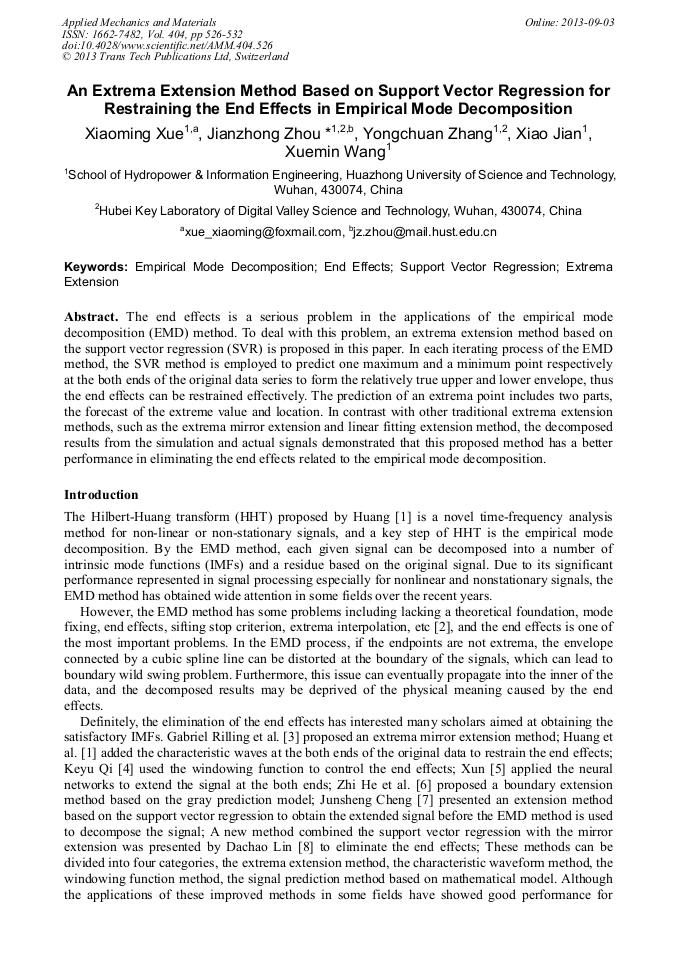

An Extrema Extension Method Based on Support Vector Regression for Restraining the End Effects in Empirical Mode Decomposition

Abstract:

The end effects is a serious problem in the applications of the empirical mode decomposition (EMD) method. To deal with this problem, an extrema extension method based on the support vector regression (SVR) is proposed in this paper. In each iterating process of the EMD method, the SVR method is employed to predict one maximum and a minimum point respectively at the both ends of the original data series to form the relatively true upper and lower envelope, thus the end effects can be restrained effectively. The prediction of an extrema point includes two parts, the forecast of the extreme value and location. In contrast with other traditional extrema extension methods, such as the extrema mirror extension and linear fitting extension method, the decomposed results from the simulation and actual signals demonstrated that this proposed method has a better performance in eliminating the end effects related to the empirical mode decomposition.

• Periodical: Applied Mechanics and Materials (Volume 404)
• Pages: 526-532
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.404.526
• Online since: September 2013
• Authors: Xiao Ming Xue, Jian Zhong Zhou, Yong Chuan Zhang, Xiao Jian, Xue Min Wang
• Keywords: Empirical Mode Decomposition (EMD), End Effects, Extrema Extension, Support Vector Regression (SVR)

References

[1] N.E. Huang, Z. Shen, S.R. Long, The Empirical mode decomposition and the Hilbert spectrum for nonlinear and non-stationary time series analysis, Proceedings of the Royal Society of London, Series A 454 (1998) 903-905.

DOI: 10.1098/rspa.1998.0193

[2] Huang, N. E., and Z. Wu (2008), A review on Hilbert-Huang transform: Method and its applications to geophysical studies, Rev. Geophys., 46, RG2006, doi: 10. 1029/2007RG000228.

DOI: 10.1029/2007rg000228

[3] G. Rilling, P. Flandrin, P. Goncalves, On empirical mode decomposition and its algorithms, in: IEEE-EURASIP Workshop on Nonliear Signal and Image Processing NSIP-03, Grado (I), (2003).

[4] Keyu Qi, Zhengjia He, Yanyang Zi, Cosine window-based boundary processing method for EMD and its application in rubbing fault diagnosis, Mechanical System and Signal Processing 21 (7) (2007) 2750-2760.

DOI: 10.1016/j.ymssp.2007.04.007

[5] Jian Xun, Shaoze Yan, A revised Hilbert-Huang transformation based on the neural networks and its application in vibration signal analysis of a deployable structure, Mechanical System and Signal Processing 22 (7) (2008) 1705-1723.

DOI: 10.1016/j.ymssp.2008.02.008

[6] Zhi He, Yi Shen, Qiang Wang, Boundary extension for Hilbert-Huang transform inspired by gray prediction model, Signal Processing 92 (2012) 685-697.

DOI: 10.1016/j.sigpro.2011.09.010

[7] Junsheng Cheng, Dejie Yu, Yu Yang, Application of support vector regression machines to the processing of the end effects of Hilbert-Huang transform, Mechanical System and Signal Processing 21 (2007) 1197-1211.

DOI: 10.1016/j.ymssp.2005.09.005

[8] Dachao Lin, Zhanglin Guo, Fengping An, et. al, Elimination of end effects in empirical mode decomposition by mirror image coupled with support vector regression, Mechanical System and Signal Processing 31 (2012) 13-28.

DOI: 10.1016/j.ymssp.2012.02.012

[9] V.N. Vapnik, Statistical Learning Theory, Wiley, New York, (1998).

[10] Information on http: /rcada. ncu. edu. tw/research1_clip_program.
