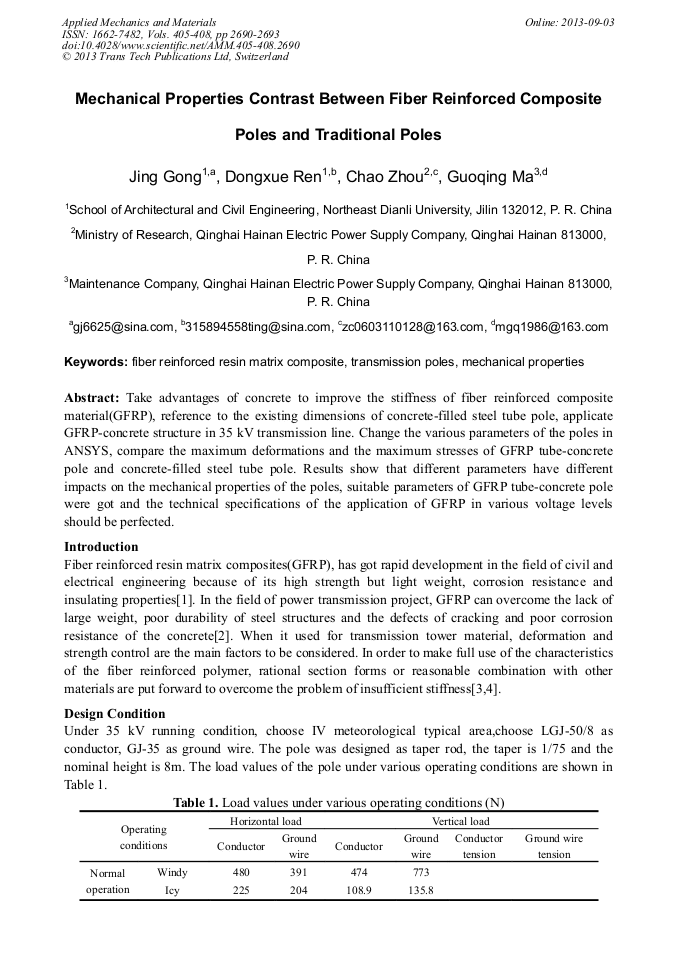

Mechanical Properties Contrast Between Fiber Reinforced Composite Poles and Traditional Poles

Abstract:

Take advantages of concrete to improve the stiffness of fiber reinforced composite material(GFRP), reference to the existing dimensions of concrete-filled steel tube pole, applicate GFRP-concrete structure in 35 kV transmission line. Change the various parameters of the poles in ANSYS, compare the maximum deformations and the maximum stresses of GFRP tube-concrete pole and concrete-filled steel tube pole. Results show that different parameters have different impacts on the mechanical properties of the poles, suitable parameters of GFRP tube-concrete pole were got and the technical specifications of the application of GFRP in various voltage levels should be perfected.

You might also be interested in these eBooks

Progress in Industrial and Civil Engineering II

View Preview

Info:

Periodical:

Applied Mechanics and Materials (Volumes 405-408)

Pages:

2690-2693

DOI:

https://doi.org/10.4028/www.scientific.net/AMM.405-408.2690

Citation:

Cite this paper

Online since:

September 2013

Authors:

Jing Gong*, Dong Xue Ren, Chao Zhou, Guo Qing Ma

Keywords:

Fiber Reinforced Resin Matrix Composite, Mechanical Property, Transmission Poles

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

* - Corresponding Author

References

[1] B. Saboori, S.M.R. Khalili: Static Analysis of Tapered FRP Transmission Poles Using Finite Element Method. Finite Elements in Analysis and Design, 47 (2011) , 247–255.

DOI: 10.1016/j.finel.2010.10.002

Google Scholar

[2] Sheng-ying Jiang, Hao Liang: Analysis and Suggestions on Application of Composite Material in Transmission Line Project. Power & Energy, 33(2012), 371-374. In Chinese.

Google Scholar

[3] Jing Gong , En-ming Zhang: Structure Design for 110 kV FRP Pole. East China Electric Power. 40(2012): 1557-1560. In Chinese.

Google Scholar

[4] Jing Gong , En-ming Zhang: Design of 110 kV High Performance Fiber Reinforced Composite Material Transmission Poles and Towers. Water Resources and Power, 30(2012): 161-163. In Chinese.

Google Scholar

[5] Zhen-yu Zhang: Analysis on the Global Ultimate Capacity of the New FRP Rush Repair Tower. Xi An: Xi An University of Architecture and Technology, 2008. In Chinese.

Google Scholar

[6] DL/T 5030-1996: Technical Code on the Centrifugal Concrete Filled Thin-wall Steel Tubular Structures. Bei Jing: China Electric Power Press, 1996. In Chinese.

Google Scholar
