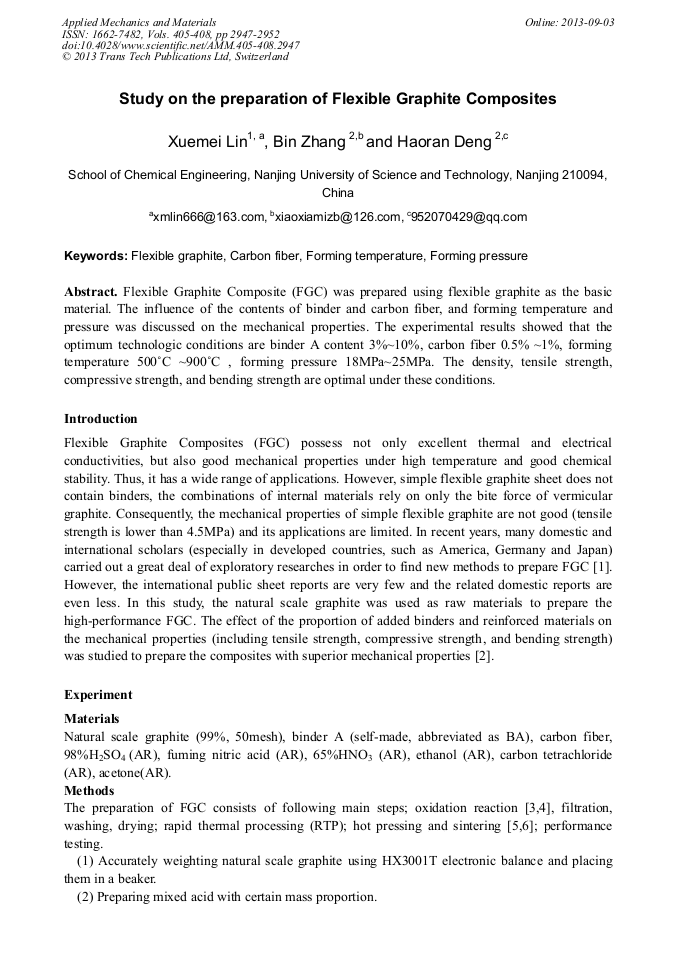

Study on the Preparation of Flexible Graphite Composites

Abstract:

Flexible Graphite Composite (FGC) was prepared using flexible graphite as the basic material. The influence of the contents of binder and carbon fiber, and forming temperature and pressure was discussed on the mechanical properties. The experimental results showed that the optimum technologic conditions are binder A content 3%~10%, carbon fiber 0.5% ~1%, forming temperature 500°C~900°C, forming pressure 18MPa~25MPa. The density, tensile strength, compressive strength, and bending strength are optimal under these conditions.

• Periodical: Applied Mechanics and Materials (Volumes 405-408)
• Pages: 2947-2952
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.405-408.2947
• Online since: September 2013
• Authors: Xue Mei Lin*, Bin Zhang, Hao Ran Deng
• Keywords: Carbon Fiber (CF), Flexible Graphite, Forming Pressure, Forming Temperature

References

[1] Guilian Yu. New flexible graphite production [J], Non-Metallic Mining, 1989, (1): 37-38.

[2] Yang Leng , Jianlin Gu, Wenquan Cao, Tongyi Zhang. Influences of density and flake size on mechanical properties of flexible graphite [P]. Carbon, 1998, 36(7): 875~880.

DOI: 10.1016/s0008-6223(97)00196-6

[3] Yongping Zheng, Tao Wu, Wanci Shen, Feiyu Kang. A kind of flexible graphite bipolar plate and its preparation method: China, 1560947A[P]. 2005-1-5. In Chinese.

[4] Xuemei Lin, Gongpei Pan. The structure and property of low-sulfur expand graphite prepared in HClO4/H2SO4 system [J]. Non-Metallic Mining, 2005, 28(5): 8-10. In Chinese.

[5] Baojie Zhang, Nanzhe Song, Xuebin Yang, et al . The preparation of flexible graphite reinforced sealing materials [J]. Journal of Harbin University of Science and Technology, 2006, 11 (3) : 41-43. In Chinese.

[6] Renliang Cai, Sujiang Xie. The property research on composite sealing gasket materials [J], New Carbon Material, 1998, 13 (1): 54-60. In Chinese.

[7] JB/T9141. 1-1999, the testing methods for density of flexible graphite sheets [S].

[8] JB/T9141. 2-1999, the testing methods for tensile strength of flexible graphite sheets [S].

[9] GB/T13465. 3-1992, the experimental testing methods for compressive strength of impermeability graphite materials [S].

[10] GB/T13465. 2-1992, the experimental testing methods for bending strength of impermeability graphite materials [S].

[11] Youwen Cai, Zhihua Chen. The study and application of carbon fiber reinforced flexible graphite sealing materials [J]. New Carbon Material, 1997, 12(2): 36-37. In Chinese.
