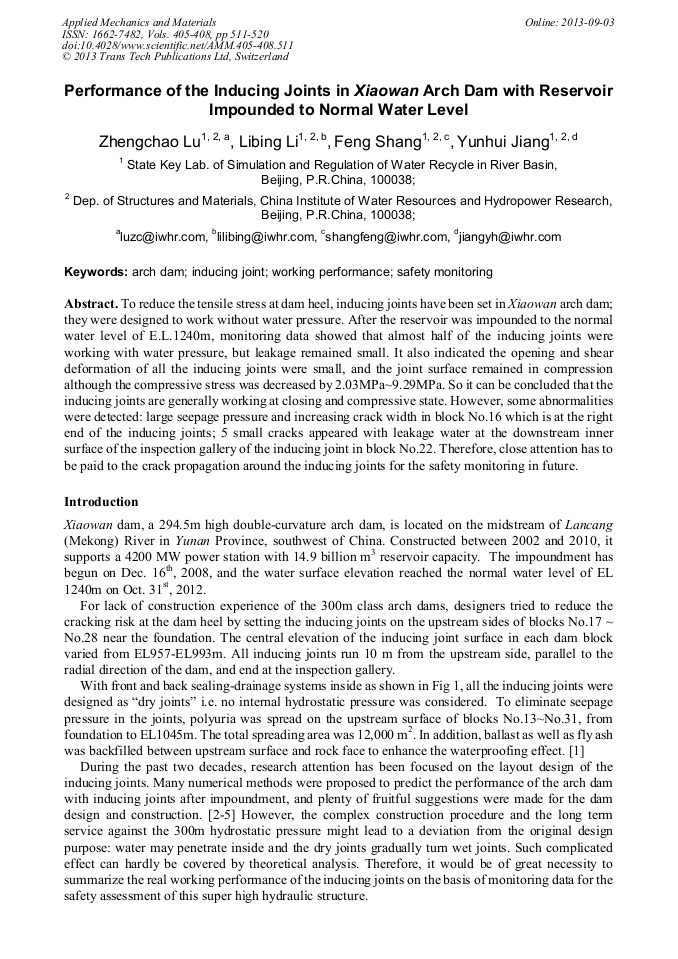

Performance of the Inducing Joints in Xiaowan Arch Dam with Reservoir Impounded to Normal Water Level

Abstract:

To reduce the tensile stress at dam heel, inducing joints have been set in Xiaowan arch dam; they were designed to work without water pressure. After the reservoir was impounded to the normal water level of E.L.1240m, monitoring data showed that almost half of the inducing joints were working with water pressure, but leakage remained small. It also indicated the opening and shear deformation of all the inducing joints were small, and the joint surface remained in compression although the compressive stress was decreased by 2.03MPa~9.29MPa. So it can be concluded that the inducing joints are generally working at closing and compressive state. However, some abnormalities were detected: large seepage pressure and increasing crack width in block No.16 which is at the right end of the inducing joints; 5 small cracks appeared with leakage water at the downstream inner surface of the inspection gallery of the inducing joint in block No.22. Therefore, close attention has to be paid to the crack propagation around the inducing joints for the safety monitoring in future.

• Periodical: Applied Mechanics and Materials (Volumes 405-408)
• Pages: 511-520
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.405-408.511
• Online since: September 2013
• Authors: Zheng Chao Lu, Li Bing Li, Feng Shang, Yun Hui Jiang
• Keywords: Arch Dam, Inducing Joint, Safety Monitoring, Working Performance

References

[1] MaoY, Yao J and Li Z: Study of upstream seepage control system design for Xiaowan arch dam. Water Res. and Power. Vol. 29, No. 6 (2011), pp.86-88. (in Chinese).

[2] Li P, Zou L, Fu S and Chen S: Analog computation of crack director of Xiaowan arch dam. Eng. J. Wuhan Univ. Vol. 38, No. 3 (2005), pp.27-30. (in Chinese).

[3] Wang G, Zhang C, Guo Z and Jin F: Study on upstream bottom- joint for improving the stress conditions of high arch dam. J. Hydr. Eng. No. 1(1998), pp.69-75. (in Chinese).

[4] Fu S, Chen S, and Zou L: Analysis of bottom inducing joint in arch dam of Xiaowan project by using 3-D FEM. J. Hydr. Eng. Vol. 37, No. 1(2006), pp.97-103. (in Chinese).

[5] Zhao J, Zhu X, Shi D and Ni Z: Application of sub-model method to inducement slot and check- up porch of Xiaowan arch dam. J. Hohai Univ. (Natural Sci. ). Vol. 35, No. 3(2007), pp.298-301. (in Chinese).

[6] IWHR, Report on working performance assessment and early warning for Xiaowan hydropower station on Lancang River in Yunnan Province: monitoring data analysis. Dec. 2012. (in Chinese).

[7] IWHR, Research report on working performance safety assessment for Xiaowan hydropower station on Lancang River in Yunnan Province: water level 1225m. Aug. 2012. (in Chinese).

[8] HydroChina Kunming Eng. Corp. Report on monitoring data analysis for arch dam, abutment and foundation of Xiaowan hydropower station on Lancang River in Yunnan Province: the 4th impoundment procedure at water level 1232m. Nov. 2012. (in Chinese).
