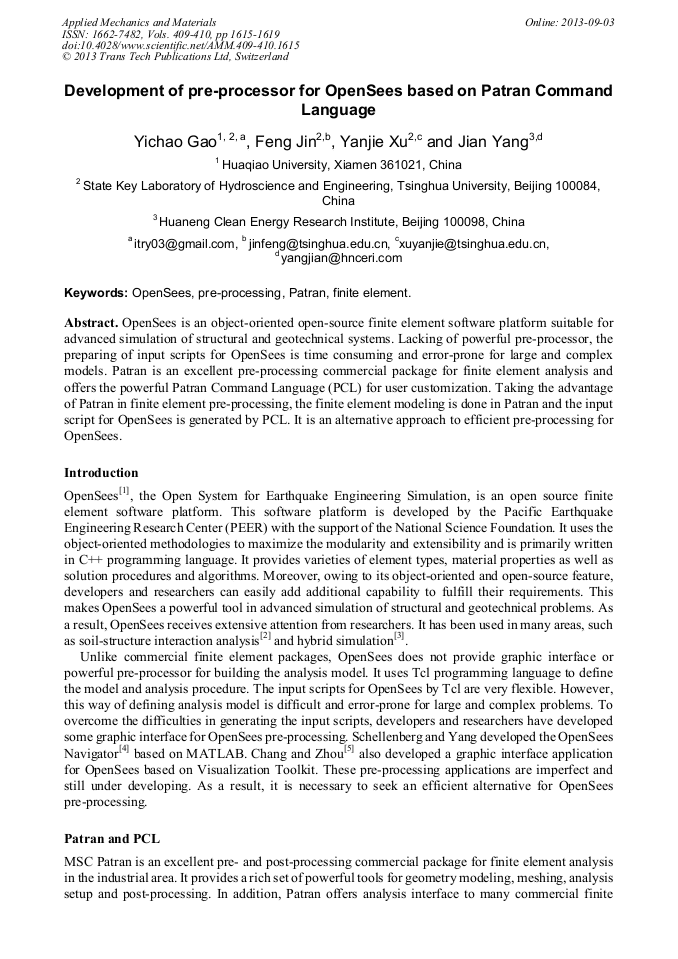

Development of Pre-Processor for OpenSees Based on Patran Command Language

Abstract:

OpenSees is an object-oriented open-source finite element software platform suitable for advanced simulation of structural and geotechnical systems. Lacking of powerful pre-processor, the preparing of input scripts for OpenSees is time consuming and error-prone for large and complex models. Patran is an excellent pre-processing commercial package for finite element analysis and offers the powerful Patran Command Language (PCL) for user customization. Taking the advantage of Patran in finite element pre-processing, the finite element modeling is done in Patran and the input script for OpenSees is generated by PCL. It is an alternative approach to efficient pre-processing for OpenSees.

• Periodical: Applied Mechanics and Materials (Volumes 409-410)
• Pages: 1615-1619
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.409-410.1615
• Online since: September 2013
• Authors: Yi Chao Gao, Feng Jin, Yan Jie Xu, Jian Yang
• Keywords: Finite Element, OpenSEES, PATRAN, Pre-Processing

References

[1] Mazzoni S, McKenna F, Scott M H, et al. OpenSees command language manual. Pacific Earthquake Engineering Research (PEER) Center, (2006).

[2] Jeremic B. A brief overview of neesgrid simulation platform opensees: Application to the soil–foundation–structure interaction problems. (2004).

[3] Schellenberg A, Mahin S. Integration of hybrid simulation within the general-purpose computational framework OpenSees. (2006).

[4] Information on http: /peer. berkeley. edu/OpenSeesNavigator.

[5] Chang Zhao-zhong, Zhou Xi-yuan. VTK-Based Development of A Graphical Interface Application for OpenSees (In Chinese). Earthquake Resistant Engineering and Retrofitting. 5 (2005) 82-86.

[6] MSC. PCL and Customization.
