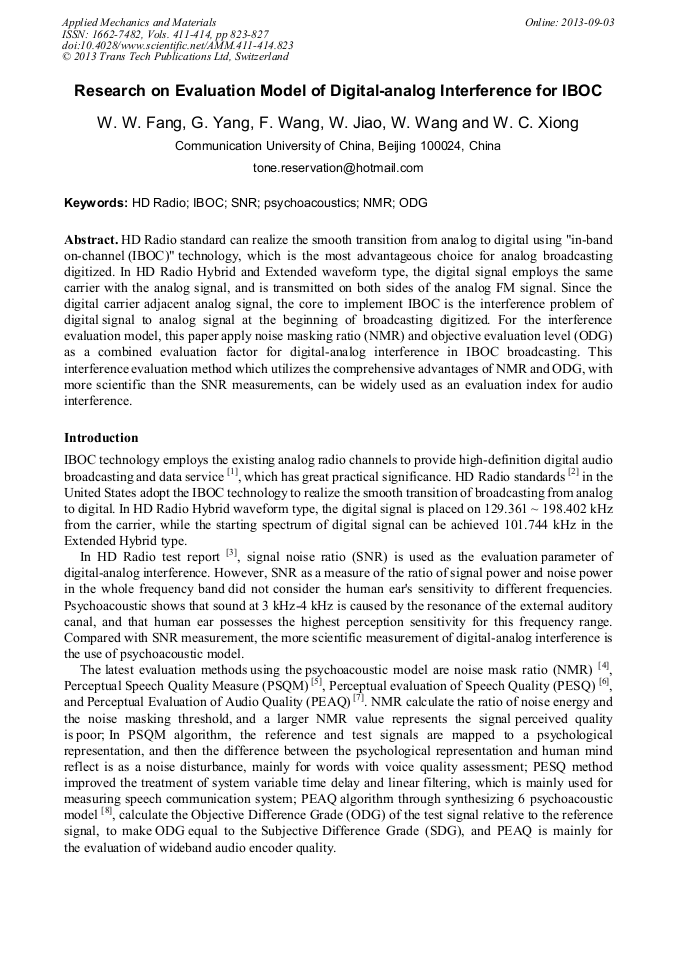

Research on Evaluation Model of Digital-Analog Interference for IBOC

Abstract:

HD Radio standard can realize the smooth transition from analog to digital using "in-band on-channel (IBOC)" technology, which is the most advantageous choice for analog broadcasting digitized. In HD Radio Hybrid and Extended waveform type, the digital signal employs the same carrier with the analog signal, and is transmitted on both sides of the analog FM signal. Since the digital carrier adjacent analog signal, the core to implement IBOC is the interference problem of digital signal to analog signal at the beginning of broadcasting digitized. For the interference evaluation model, this paper apply noise masking ratio (NMR) and objective evaluation level (ODG) as a combined evaluation factor for digital-analog interference in IBOC broadcasting. This interference evaluation method which utilizes the comprehensive advantages of NMR and ODG, with more scientific than the SNR measurements, can be widely used as an evaluation index for audio interference.

• Periodical: Applied Mechanics and Materials (Volumes 411-414)
• Pages: 823-827
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.411-414.823
• Online since: September 2013
• Authors: Wei Wei Fang, Gang Yang, Fei Wang, Wei Jiao, Wei Wang, Wei Chu Xiong
• Keywords: HD Radio, IBOC, NMR, ODG, Psychoacoustics, SNR

References

[1] D. P. Maxson, The IBOC Handbook: Understanding HD Radio Technology, 1st ed. National Association of Broadcasters, Burlington: Elsevier/Focal Press, (2007).

[2] HD Radio™ Air Interface Design Description - Layer 1 FM, iBiquity Digital Corporation, NRSC Standard SY_IDD_1011s, (2011).

[3] National Public Radio. Host compatibility measurements for the extended Hybrid mode of IBOC digital audio broadcasting [R]. Report of NPR, (2004).

[4] X. P. Hu, G. M. He and X. P. Zhou. PEAQ-based psychoacoustic model for perceptual audio coder. Proceedings of 8th International Conference on Advanced Communication Technology, (2006).

DOI: 10.1109/icact.2006.206344

[5] ITU-T Recommendation E861. Objective quality measurement of telephone-band (300-3400Hz) speech codec, (1998).

[6] ITU-T Recommendation P. 862. Perceptual evaluation of speech quality (PESQ)：An objective method for end-to-end speech quality assessment of narrow-band telephone networks and speech codec, (2001).

DOI: 10.1109/icassp.2001.941023

[7] ITU-R Recommendation BS. 1387-1. Method for objective measurements of perceived audio quality, (2001).

[8] L. C. Hu. Security steganography in digital speech and high fidelity audio. PhD thesis in Chinese. Shanghai University, (2007).

[9] Ron J. Pieper. Laboratory and computer tests for Carson's FM bandwidth rule. Proceedings of the 33rd Southeastern Symposium, 2001: 145-149.

DOI: 10.1109/ssst.2001.918507

[10] NRSC-G202. FM IBOC total digital sideband power for various configurations. iBiquity Digital Corporation, 2010. 9.

[11] ITU-R Recommendation BS. 1116. Methods for the subjective assessment of small impairments in audio systems including multichannel sound systems. Geneva, (1994).
