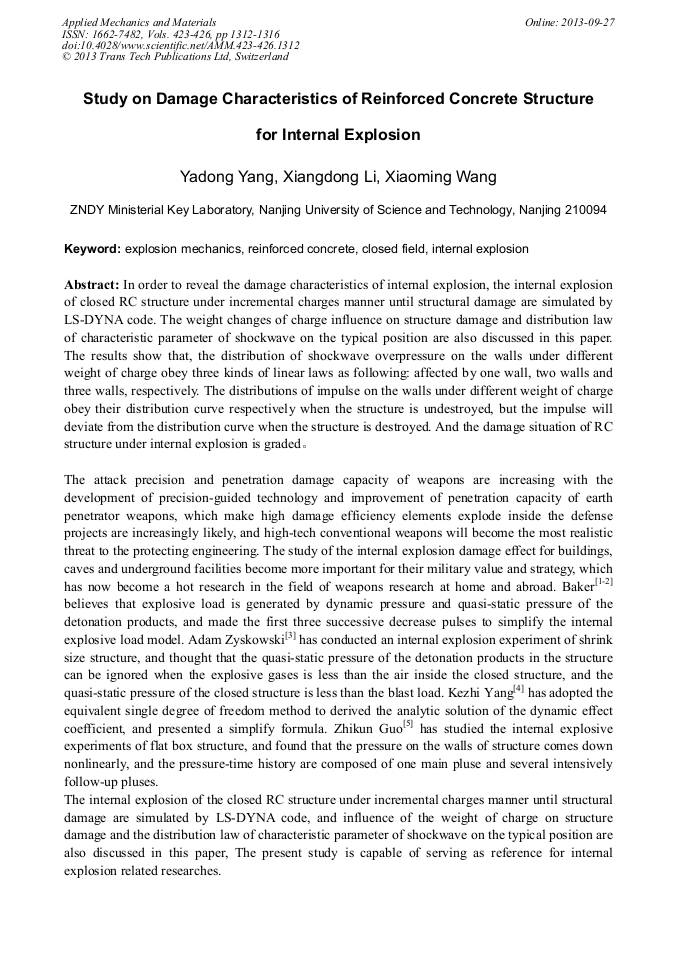

Study on Damage Characteristics of Reinforced Concrete Structure for Internal Explosion

Abstract:

In order to reveal the damage characteristics of internal explosion, the internal explosion of closed RC structure under incremental charges manner until structural damage are simulated by LS-DYNA code. The weight changes of charge influence on structure damage and distribution law of characteristic parameter of shockwave on the typical position are also discussed in this paper. The results show that, the distribution of shockwave overpressure on the walls under different weight of charge obey three kinds of linear laws as following: affected by one wall, two walls and three walls, respectively. The distributions of impulse on the walls under different weight of charge obey their distribution curve respectively when the structure is undestroyed, but the impulse will deviate from the distribution curve when the structure is destroyed. And the damage situation of RC structure under internal explosion is graded。

• Periodical: Applied Mechanics and Materials (Volumes 423-426)
• Pages: 1312-1316
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.423-426.1312
• Online since: September 2013
• Authors: Ya Dong Yang, Xiang Dong Li, Xiao Ming Wang
• Keywords: Closed Field, Explosion Mechanics, Internal Explosion, Reinforced Concrete (RC)

References

[1] Baker W E., Cox P A. Explosion hazards and evaluation[M]. New York: Elsevier Publishing Company, (1983).

[2] W.E. Baker, C.E. Anderson Jr, B.L. Morris and D.K. Wauters, Quasi-static pressure, duration and impulse for explosions in structures[J]. Int. J. Mech. Sci. 1983, 25, 425-464.

DOI: 10.1016/0020-7403(83)90059-0

[3] Adam Zyskowsk, i Isabelle Sochet, et al Study of the explosion process in a small scale experiment-structural loading [J]. Journal of Loss Prevention in the Process Industries, 17 2004 291-299.

DOI: 10.1016/j.jlp.2004.05.003

[4] Kezhi Yang, Xiumin Yang, Nianqiao Wang. Equivalent static load calculation method of structure subjected to internal explosion[J]. Journal of PLA University of Science and Technology, 2002, 3(4): 31-33.

[5] Zhikun Gou, Fengliang Song, et al. Experiment of closed flat box structure subjected to internal detonation[J]. Journal of PLA University of Science and Technology, 2008, 9(4): 345-350.
