The Source Pick-Up Effect of Multi-Finger GDpMOSTs on ESD/LU Immunities in a 3.3V 0.35μm Process

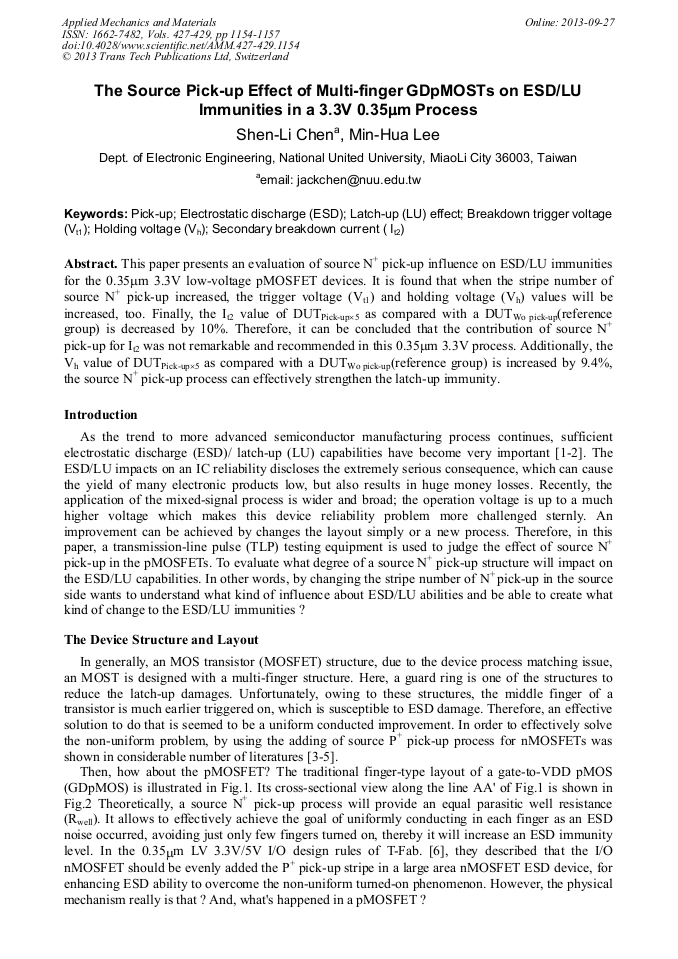

Abstract:

This paper presents an evaluation of source N⁺ pick-up influence on ESD/LU immunities for the 0.35μm 3.3V low-voltage pMOSFET devices. It is found that when the stripe number of source N⁺ pick-up increased, the trigger voltage (V_t1) and holding voltage (V_h) values will be increased, too. Finally, the I_t2 value of DUT_Pick-up×5 as compared with a DUT_{Wo pick-up}(reference group) is decreased by 10%. Therefore, it can be concluded that the contribution of source N⁺ pick-up for I_t2 was not remarkable and recommended in this 0.35μm 3.3V process. Additionally, the V_h value of DUT_Pick-up×5 as compared with a DUT_{Wo pick-up}(reference group) is increased by 9.4%, the source N⁺ pick-up process can effectively strengthen the latch-up immunity.

• Periodical: Applied Mechanics and Materials (Volumes 427-429)
• Pages: 1154-1157
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.427-429.1154
• Online since: September 2013
• Authors: Shen Li Chen*, Min Hua Lee
• Keywords: Breakdown Trigger Voltage (V_t1), Electrostatic Discharge (ESD), Holding Voltage (V_h), Latch-Up (LU) Effect, Pick-Up, Secondary Breakdown Current ( I_t2)

References

[1] Chun-Yu Lin, Li-Wei Chu, Shiang-Yu Tsai, Ming-Dou Ker. Design of Compact ESD protection circuit for V-band RF applications in a 65-nm CMOS technology [J]. IEEE Trans. Device and Materials Reliability, 2012 12 (3) 554-561.

DOI: 10.1109/tdmr.2012.2188405

[2] Hang Fan,  Lingli Jiang,  Bo Zhang. A method to prevent strong snapback in LDNMOS for ESD protection [J]. IEEE Trans. Device and Materials Reliability, 2013 13 (1) 50-53.

DOI: 10.1109/tdmr.2012.2210043

[3] Ming-Dou Ker and Hsin-Chyh Hsu. The impact of inner pickup on ESD robustness of multi-finger NMOS in nanoscale CMOS technology. IEEE 44th Annual International Reliability Physics Symposium [C]. 2006 631-632.

DOI: 10.1109/relphy.2006.251297

[4] Shao-Chang Huang, Ke-Horng Chen. Substrate pick-up impacting on ESD performances of cascode NMOS transistors [J]. IEICE Transactions on Fundamentals of Electronics, Communications and Computer Sciences, 2011 E94-A (2) 688-695.

DOI: 10.1587/transfun.e94.a.688

[5] Shen-Li Chen, Min-Hua Lee, Tzung-Shian Wu, Chun-Ju Lin, Yi-Sheng Lai. The Influences of Substrate Pick-up Area and Source-end Engineering on MOST ESD Protection Devices in a 0. 35um 5V Process. International Electron Devices and Materials Symposium (IEDMS) [C]. 2012, BP10-1~10-2.

[6] T-Fab. 0. 35mm mixed signal polycide 3. 3V/5V design rule, (2007).
