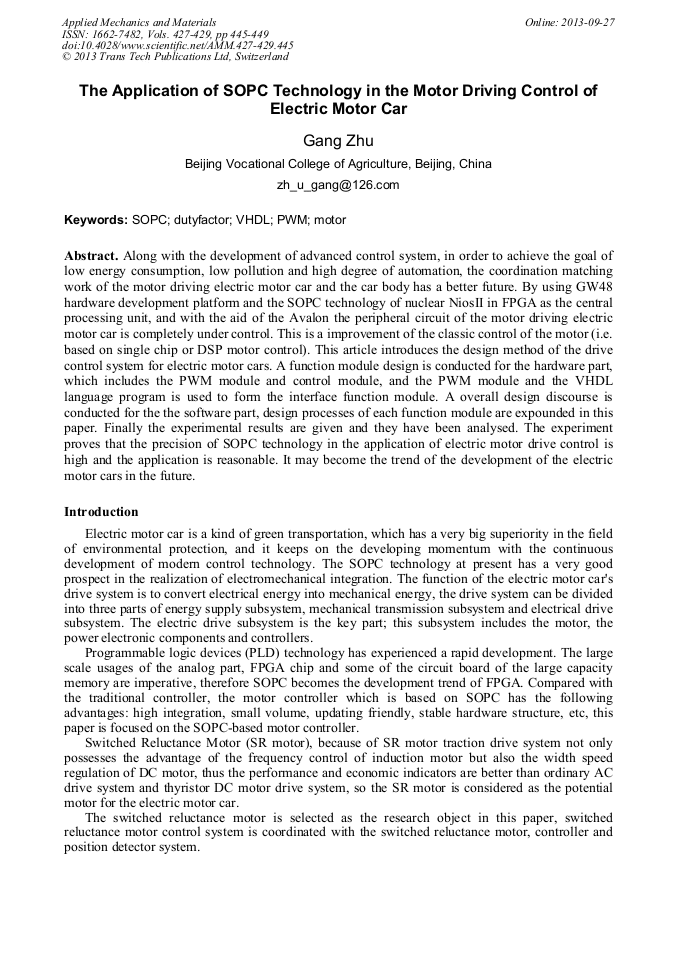

The Application of SOPC Technology in the Motor Driving Control of Electric Motor Car

Abstract:

Along with the development of advanced control system, in order to achieve the goal of low energy consumption, low pollution and high degree of automation, the coordination matching work of the motor driving electric motor car and the car body has a better future. By using GW48 hardware development platform and the SOPC technology of nuclear NiosII in FPGA as the central processing unit, and with the aid of the Avalon the peripheral circuit of the motor driving electric motor car is completely under control. This is a improvement of the classic control of the motor (i.e. based on single chip or DSP motor control). This article introduces the design method of the drive control system for electric motor cars. A function module design is conducted for the hardware part, which includes the PWM module and control module, and the PWM module and the VHDL language program is used to form the interface function module. A overall design discourse is conducted for the the software part, design processes of each function module are expounded in this paper. Finally the experimental results are given and they have been analysed. The experiment proves that the precision of SOPC technology in the application of electric motor drive control is high and the application is reasonable. It may become the trend of the development of the electric motor cars in the future.

• Periodical: Applied Mechanics and Materials (Volumes 427-429)
• Pages: 445-449
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.427-429.445
• Online since: September 2013
• Authors: Gang Zhu
• Keywords: Dutyfactor, Motor, PWM, SOPC, VHDL

References

[1] Mingzgu Cao. Study on Driving Motor Control System of Hybrid Electric Vehicle[J], Journal of Anhui Agricultural University, 2011 (2) : 11-18.

[2] Xiancong Ling, Qinghai Wu, Shaobo Wu. Study on the Multi-axis Controller of the Stepping Motor Based on SOPC [J], Information Science and Technology, 2009 (11) : 69-72.

[3] Xin Xu, Hongqi Yu. Design of Embedded System Based on FPGA[D]. Beijing: China Machine Press, (2005).

[4] Xiudong Han. Design of Direct Current Motor Servo System Based on FPGA[D]. Master degree theses of master of Inner Mongolia University, (2005).

[5] Tao Huang, Jing LI. Research on the control of the BLDCM and Its Drive System Used in Electric vehicle [J], Wuhan University of Technology, 2007 (4) : 53-57.

[6] Jinangneng Yi, Li Han. Overview of Driving Motor and its Control Technology about Electric Vehicle [J], Chongqing University, 2011 (2) : 61 -67.

[7] Lina Liu. SOPC technology Application in Automotive Electronics[J], Computer science, 2010 (4): 32 -38.

[8] Guanghui Xu. The development and application of embedded FPGA[M], Beijing: Electronic Industry Press, 2006.

[9] Lin Chen. The SOPC design of NiosII processor[J]. Computer and Information Technology, 2005 ( 3 ) : 67 -72.

[10] Song Pan. The SOPC technology practical tutorial[M] Beijing: Tsinghua University Press, (2005).

[11] Xin Yang, Weijun Xu, Xianyong Chen. Overview of Standard Avalon Bus Interface[J]. Integrated circuit . 2007 (11) : 61 -66.

[12] Xiaohui Yang, Yongjian Yang. EDA / SOPC technology and VHDL Based on FPGA[M] Beijing: National Defense Industry Press , (2007).
