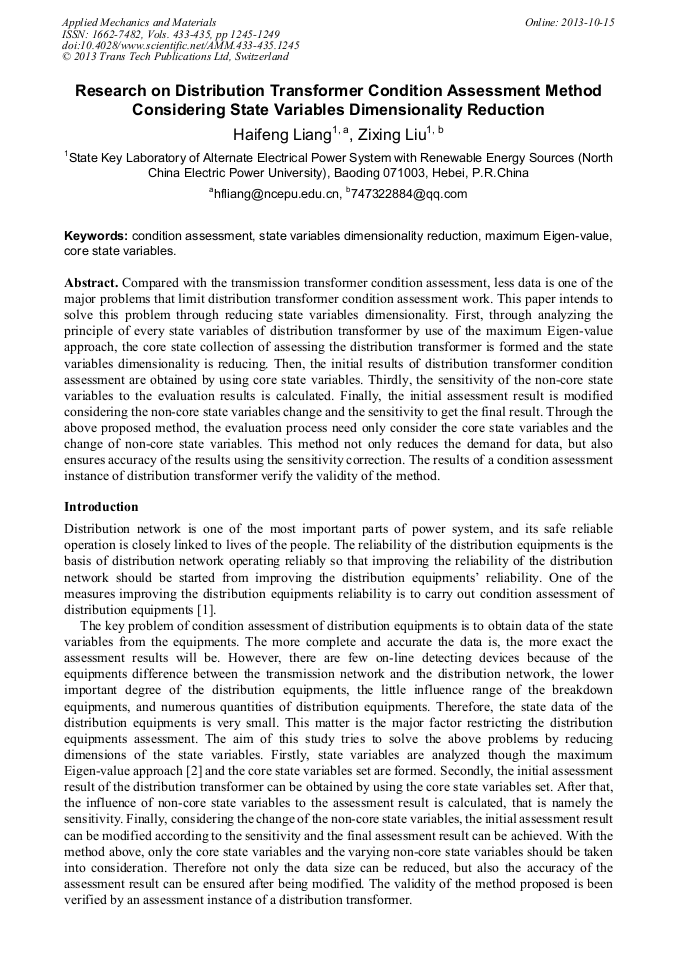

Research on Distribution Transformer Condition Assessment Method Considering State Variables Dimensionality Reduction

Abstract:

Compared with the transmission transformer condition assessment, less data is one of the major problems that limit distribution transformer condition assessment work. This paper intends to solve this problem through reducing state variables dimensionality. First, through analyzing the principle of every state variables of distribution transformer by use of the maximum Eigen-value approach, the core state collection of assessing the distribution transformer is formed and the state variables dimensionality is reducing. Then, the initial results of distribution transformer condition assessment are obtained by using core state variables. Thirdly, the sensitivity of the non-core state variables to the evaluation results is calculated. Finally, the initial assessment result is modified considering the non-core state variables change and the sensitivity to get the final result. Through the above proposed method, the evaluation process need only consider the core state variables and the change of non-core state variables. This method not only reduces the demand for data, but also ensures accuracy of the results using the sensitivity correction. The results of a condition assessment instance of distribution transformer verify the validity of the method.

• Periodical: Applied Mechanics and Materials (Volumes 433-435)
• Pages: 1245-1249
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.433-435.1245
• Online since: October 2013
• Authors: Hai Feng Liang, Zi Xing Liu
• Keywords: Condition Assessment, Core State Variables, Maximum Eigen-Value, State Variables Dimensionality Reduction

References

[1] Arvidsson, Lars. Consequences of state of the art transformer condition assessment. IEEE International Symposium on Electrical Insulation, Västerås, Sweden, 2010: 1-4.

DOI: 10.1109/elinsl.2010.5549840

[2] Yongxiu He: Comprehensive Evaluation Method and its Application in Power system (China Electric Power Press, Beijing 2007). In Chinese.

[3] Department of Production & Technology of State Grid Corporation: Distribution System State Maintenance Standard Assembly of State Grid Corporation (China Electric Power Press, Beijing 2012). In Chinese.

DOI: 10.17775/cseejpes.2017.00940

[4] Ruijin Liao, Qian Wang, etc: Automation of Electric Power System, Vol. 3 (2008), pp.70-75. In Chinese.

[5] Jitka Fuhr. Condition Assessment of Power Transformers. IEEE International Conference on Monitoring and Diagnosis. Bali Indonesia, 2012: 9-17.

[6] W. H. Tang, K. Spurgeon, Q. H. Wu and Z. J. Richardson: IEEE Transactions on Power Delivery, Vol. 19 (2004), pp.1696-1703.

[7] G. J. Cliteur and J. M. Wetzer, Condition Assessment of Power Transmission and Distribution Components, CIRED2001 (IEE Conf. Publ), Amsterdam Netherlands, June 2001, Vol. 1 (2001), p.5.
