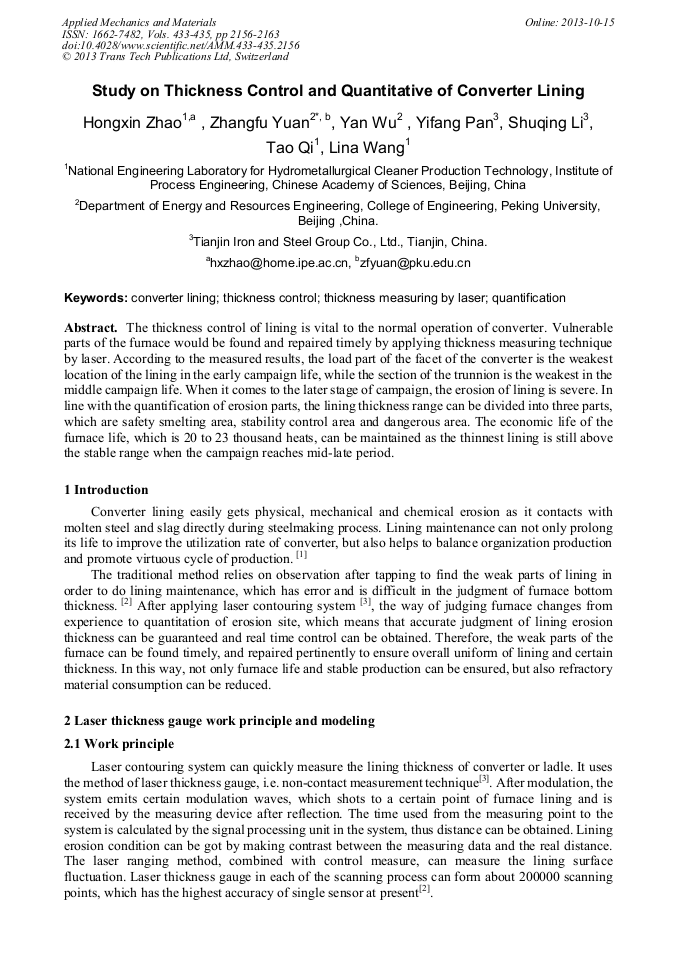

Study on Thickness Control and Quantitative of Converter Lining

Abstract:

The thickness control of lining is vital to the normal operation of converter. Vulnerable parts of the furnace would be found and repaired timely by applying thickness measuring technique by laser. According to the measured results, the load part of the facet of the converter is the weakest location of the lining in the early campaign life, while the section of the trunnion is the weakest in the middle campaign life. When it comes to the later stage of campaign, the erosion of lining is severe. In line with the quantification of erosion parts, the lining thickness range can be divided into three parts, which are safety smelting area, stability control area and dangerous area. The economic life of the furnace life, which is 20 to 23 thousand heats, can be maintained as the thinnest lining is still above the stable range when the campaign reaches mid-late period.

• Periodical: Applied Mechanics and Materials (Volumes 433-435)
• Pages: 2156-2163
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.433-435.2156
• Online since: October 2013
• Authors: Hong Xin Zhao, Zhang Fu Yuan, Yan Wu, Yi Fang Pan, Shu Qing Li, Tao Qi, Li Na Wang
• Keywords: Converter Lining, Quantification, Thickness Control, Thickness Measuring by Laser

References

[1] J.S. Luo, S.X. Yang and J.Q. Li, Practice for Laser Measure Thickness Maintain Converter Lining, SiChuan Metallurgy, 33(2011), No. 1, p.14.

[2] W.K. Wang, P. Wang, Y. Zhang, Y. Wei, T.G. Wen, J. Zhang and Z. Li, Application of Thickness Measuring Technology by Laser in Maintaining Lining of 260t Converter, AnGang Technology, (2010), No. 4, p.54.

[3] J.B. Wang, Principle and Application of Laser Stadiometer, Non-Ferrous Metallurgical Equipment, (2002), No. 6, p.15.

[4] S. K. Row Chowdbury, A feed back control system for plain bearings using film thickness measurement, Tribology International, 33(2000), No. 1, p.29.

DOI: 10.1016/s0301-679x(00)00011-6

[5] H.X. Zhao, Z.F. Yuan, W.J. Wang and Y.F. Pan and S.Q. Li, Investigation of Novel Method to Recycling CO2 for Slag Splashing in Converter, Journal of Iron and Steel Research International, 17(2010), No. 12, p.12.

DOI: 10.1016/s1006-706x(10)60190-2

[6] K.C. Mills, Y. C. Su, A. B. Fox, Z. S. Li, R. P. Thackray and H. T. Tsai, A review of slag splashing, ISIJ International, 45(2005), No. 5, p.619.

DOI: 10.2355/isijinternational.45.619

[7] Z.F. Yuan, X. Yang, Z.X. Lu, J.G. Huang, Y.F. Pan and E.X. Ma, Jet behaviors and metallurgical performance of an innovated double-parameter oxygen lance in BOF, Journal of Iron and Steel Research International, 14(2007), No. 3, p.1.

DOI: 10.1016/s1006-706x(07)60034-x

[8] W.J. Wang, Z.F. Yuan, H. Matsuura, H.X. Zhao and F. Tsukihashi, Three-dimensional compressible flow simulation of top-blown multiple jets in converter, ISIJ International, 50(2010), No. 4, p.491.

DOI: 10.2355/isijinternational.50.491

[9] V. A. Sheremet, A. V. Kekukh, S. V. Troshii, Stovpchenko, A. P. Stovpchenko, A. S. Brodskii and O. I. Pavlyuchenkov, Experience in the use and comprehensive maintenance of converter refractory linings, Refractories and Industrial Ceramics, 47(2006).

DOI: 10.1007/s11148-006-0058-1

[10] H.M. Guo and J. Yang, Research of BOF protection technology by slag splashing, Materials Science Forum, (2009), No. 1, p.45.

DOI: 10.4028/www.scientific.net/msf.620-622.45

[11] D.S. Kumar and G. Prasad, S.C. Vishwanath, P.K. Ghorui, D. Mazumdar, M. Ranjan and I.P.N. Lal, Converter Life Enhancement through Optimization of Operating Practices, Ironmaking & Steelmaking, 34(2007), No. 6, p.521.

DOI: 10.1179/174328107x203903
