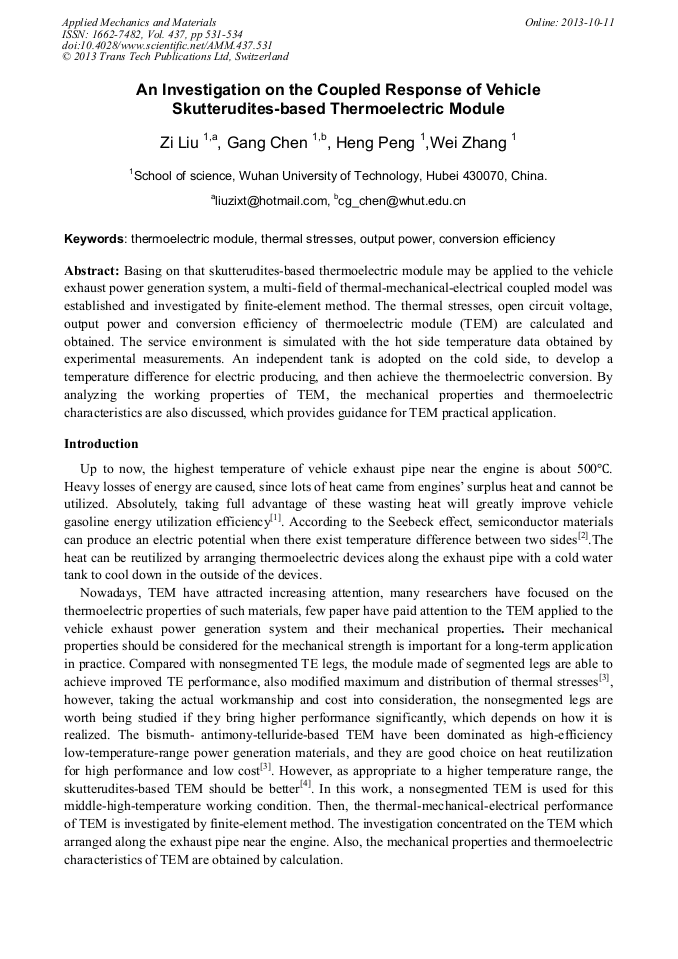

An Investigation on the Coupled Response of Vehicle Skutterudites-Based Thermoelectric Module

Abstract:

Basing on that skutterudites-based thermoelectric module may be applied to the vehicle exhaust power generation system, a multi-field of thermal mechanical-electrical coupled model was established and investigated by finite-element method. The thermal stresses, open circuit voltage, output power and conversion efficiency of thermoelectric module (TEM) are calculated and obtained. The service environment is simulated with the hot side temperature data obtained by experimental measurements. An independent tank is adopted on the cold side, to develop a temperature difference for electric producing, and then achieve the thermoelectric conversion. By analyzing the working properties of TEM, the mechanical properties and thermoelectric characteristics are also discussed, which provides guidance for TEM practical application.

• Periodical: Applied Mechanics and Materials (Volume 437)
• Pages: 531-534
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.437.531
• Online since: October 2013
• Authors: Zi Liu*, Gang Chen, Heng Peng, Wei Zhang
• Keywords: Conversion Efficiency, Output Power, Thermal Stress, Thermoelectric Module

References

[1] T.M. Jeng, S.C. Tzeng, Development of thermoelectric conversion system for waste heat recovery of automobile engine exhaust gas, J. Appl. Mech. Mater. 284-287 (2013) 713-717.

DOI: 10.4028/www.scientific.net/amm.284-287.713

[2] A.M. Adam, S. Adam, L.M. Petrescu, An insight in the thermoelectric devices and application based on the seebeck and peltier effects, J. Metalurgia International. 18 (2013) 77-80.

[3] M. Picard, S. Turenne, D. Vasilevskiy, R.A. Masut, Numerical simulation of performance and thermoechanical behabior of thermoelectric modules with segmented bismuth-telluride-based legs, J. Electron. Mater. 42 (2013) 2343-2349.

DOI: 10.1007/s11664-012-2435-5

[4] A.C. Sklad, M.W. Gaultois, A.P. Grosvenor, Examination of CeFe4Sb12 upon exposure to air: Is this material appropriate for use in terrestrial, high-temperature thermoelectric devices, J. Alloys. Compd. 505 (2010) L6-L9.

DOI: 10.1016/j.jallcom.2010.05.167

[5] J.Q. Guo, H.Y. Geng, T. Ochi, S. Suzuki, M. Kikuchi, Y. Yamaguchi, S. Ito. Development of skutterudite thermoelectric materials and modules, J. Electron. Mater. 41 (2012) 1036-1042.

DOI: 10.1007/s11664-012-1958-0

[6] S. Turenne, Th. Clin, D. Vasilevskiy, R.A. Masut, Finite element thermomechanical modeling of large area thermoelectric generators based on bismuth telluride alloys, J. Electron. Mater. 39 (2010) 1926-(1933).

DOI: 10.1007/s11664-009-1049-z
