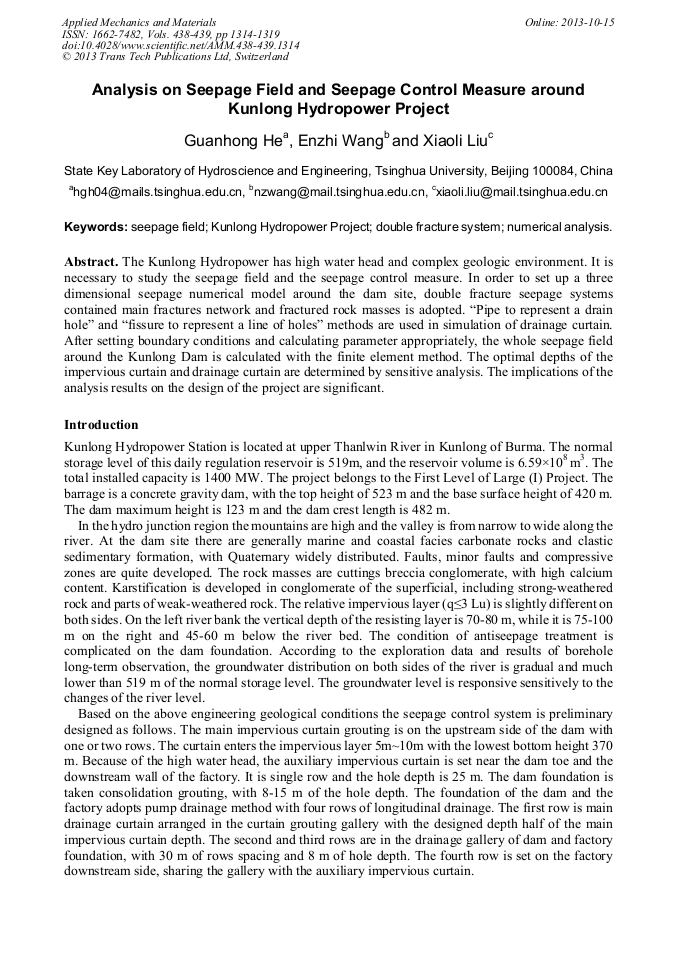

Analysis on Seepage Field and Seepage Control Measure around Kunlong Hydropower Project

Abstract:

The Kunlong Hydropower has high water head and complex geologic environment. It is necessary to study the seepage field and the seepage control measure. In order to set up a three dimensional seepage numerical model around the dam site, double fracture seepage systems contained main fractures network and fractured rock masses is adopted. Pipe to represent a drain hole and fissure to represent a line of holes methods are used in simulation of drainage curtain. After setting boundary conditions and calculating parameter appropriately, the whole seepage field around the Kunlong Dam is calculated with the finite element method. The optimal depths of the impervious curtain and drainage curtain are determined by sensitive analysis. The implications of the analysis results on the design of the project are significant.

• Periodical: Applied Mechanics and Materials (Volumes 438-439)
• Pages: 1314-1319
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.438-439.1314
• Online since: October 2013
• Authors: Guan Hong He, En Zhi Wang, Xiao Li Liu
• Keywords: Double Fracture System, Kunlong Hydropower Project, Numerical Analysis, Seepage Field

References

[1] Y. Wu, Geohydraulics, Science Press, Beijing, (2009) 121-127.

[2] E. Wang, H. Wang, Y. Sun, Study on seepage flow model in double fracture systems, Chinese Journal of Rock Mechanics and Engineering, 4 (1998).

[3] J. Chai, W. Xu, Coupling analysis of unsteady seepage and stress fields in discrete fractures network of rock mass in dam foundation, Science China Technological Sciences, Vol. 54 1 (2011) 133-139.

DOI: 10.1007/s11431-011-4630-7

[4] E. Wang, H. Wang, X. Deng, Pipe to represent hole—numerical method for simulating single drainage hole in rock masses, Chinese Journal of Rock Mechanics and Engineering, 3 (2001) 16.

[5] Y. Chen, C. Zhou, H. Zheng, A numerical solution to seepage problems with complex drainage systems, Computers and Geotechnics, 35 (2008) 383-393.

DOI: 10.1016/j.compgeo.2007.08.005

[6] E. Wang, H. Wang, H. Wang, Fissure to represent line of holes —numerical method for simulating the drainage hole curtain in rock masses, Chinese Journal of Rock Mechanics and Engineering, 1 (2002) 020.
