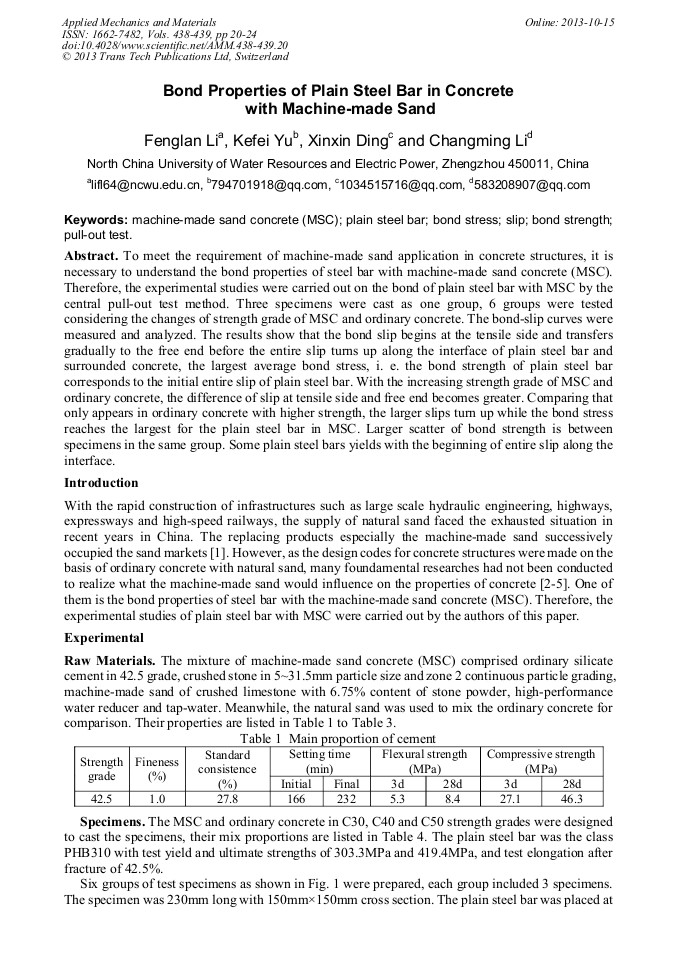

Bond Properties of Plain Steel Bar in Concrete with Machine-Made Sand

Abstract:

To meet the requirement of machine-made sand application in concrete structures, it is necessary to understand the bond properties of steel bar with machine-made sand concrete (MSC). Therefore, the experimental studies were carried out on the bond of plain steel bar with MSC by the central pull-out test method. Three specimens were cast as one group, 6 groups were tested considering the changes of strength grade of MSC and ordinary concrete. The bond-slip curves were measured and analyzed. The results show that the bond slip begins at the tensile side and transfers gradually to the free end before the entire slip turns up along the interface of plain steel bar and surrounded concrete, the largest average bond stress, i. e. the bond strength of plain steel bar corresponds to the initial entire slip of plain steel bar. With the increasing strength grade of MSC and ordinary concrete, the difference of slip at tensile side and free end becomes greater. Comparing that only appears in ordinary concrete with higher strength, the larger slips turn up while the bond stress reaches the largest for the plain steel bar in MSC. Larger scatter of bond strength is between specimens in the same group. Some plain steel bars yields with the beginning of entire slip along the interface.

• Periodical: Applied Mechanics and Materials (Volumes 438-439)
• Pages: 20-24
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.438-439.20
• Online since: October 2013
• Authors: Feng Lan Li, Ke Fei Yu, Xin Xin Ding, Chang Ming Li
• Keywords: Bond Strength, Bond Stress, Machine-Made Sand Concrete (MSC), Plain Steel Bar, Pull-Out Test, Slip

References

[1] GB/T14684-2001: Sand for Building (China Building Industry Press, Beijing, 2001).

[2] S. Zhao, M. Xia and C. Liu: Journal of Railway Science and Engineering No. 2 (2006), pp.15-20.

[3] S. Zhao, C. Liu, J. Ren and C. Li：Central-south Highway Engineering No. 2 (2006), pp.37-41.

[4] X. Zhang, X. Ding, S. Zhao and Z. Ge: Applied Mechanics and Materials Vols. 71-78 (2011), pp.4361-4364.

[5] F. Li and Q. Zhu: Advanced Materials Research Vols. 152-153 (2011), pp.1479-1482.

[6] GB50152-92: Standard of Test Method for Concrete Structures (China Building Industry Press, Beijing, 1992).

[7] S. Zhao: Design Principles of Concrete Structures (Tongji University Press, Shanghai, 2004).
