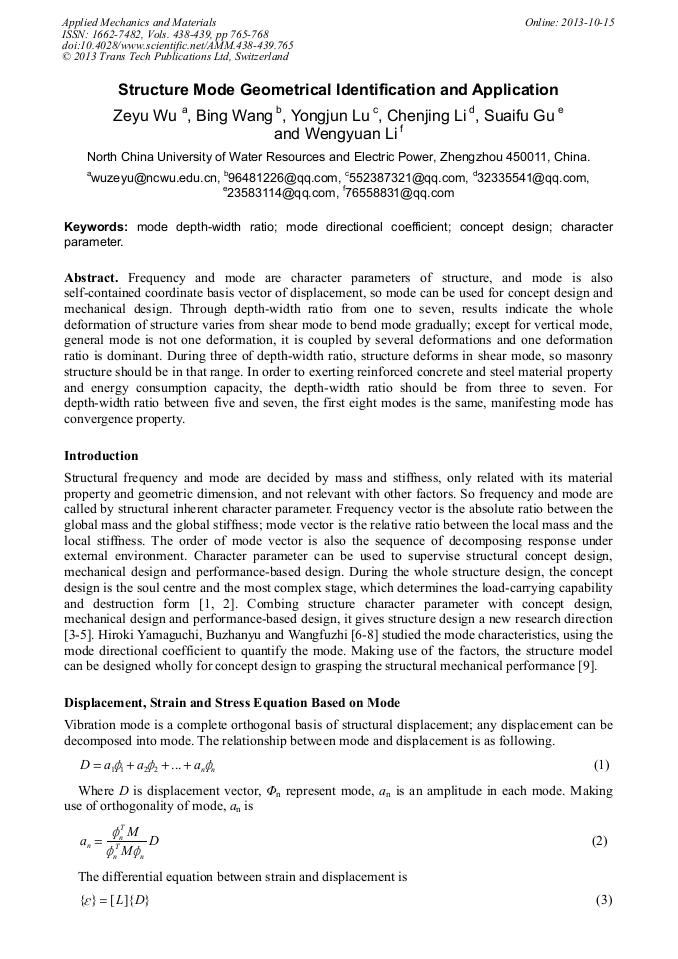

Structure Mode Geometrical Identification and Application

Abstract:

Frequency and mode are character parameters of structure, and mode is also self-contained coordinate basis vector of displacement, so mode can be used for concept design and mechanical design. Through depth-width ratio from one to seven, results indicate the whole deformation of structure varies from shear mode to bend mode gradually; except for vertical mode, general mode is not one deformation, it is coupled by several deformations and one deformation ratio is dominant. During three of depth-width ratio, structure deforms in shear mode, so masonry structure should be in that range. In order to exerting reinforced concrete and steel material property and energy consumption capacity, the depth-width ratio should be from three to seven. For depth-width ratio between five and seven, the first eight modes is the same, manifesting mode has convergence property.

• Periodical: Applied Mechanics and Materials (Volumes 438-439)
• Pages: 765-768
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.438-439.765
• Online since: October 2013
• Authors: Ze Yu Wu, Bing Wang, Yong Jun Lu, Chen Jing Li, Suai Fu Gu, Wen Yuan Li
• Keywords: Character Parameter, Concept Design, Mode Depth-Width Ratio, Mode Directional Coefficient

References

[1] S. Ji, D. Wang, Q. Zhao, Stiffness study of pipe scaffold planar support systems by the modal analysis, Journal of Zhengzhou University (Technical Edition), 31 (2010) 31-35.

[2] D. Wang, Q. Zhang, Y. Wang. Optimization design of the Yellow River main bridge in Juancheng based on the researches on the dynamic characteristics, Journal of Zhengzhou University (Technical Edition), 31 (2010) 1-5.

[3] Nonlinear Finite Element of Continuum and Structure, Tsinghua University Press, Beijing, 2008: 538-540.

[4] R. Shi, F. Wei. Matrix Analysis, Beijing Technical University Press, Beijing, 2010: 177-199.

[5] Q. Li, N. Wang, D. Yi. Numerical Analysis, Tsinghua university, Beijing, 1986: 196-205.

[6] Hiroki Yamaguchi, Manabu Ito, Mode-dependence of structural damping in cable-stayed bridges, Wind Engineering and Industrial Aerodynamics, 72 (1997) 289-300.

DOI: 10.1016/s0167-6105(97)00249-3

[7] Z. Bu. Cable-deck Coupled Vibration and Damping Characteristic Research in the Seismic Response Analysis of Cable-stayed Bridges, Zhejiang University, Zhejiang, (2010).

[8] F. Wang, Y. Wang, X. Deng. Selection of mode number and determination of torsional mode, Journal of Tianjing university of Technology, 21 (2005) 81-85.

[9] GB J 3-2010, Technical Specification for Concrete Structure of Tall Building, China Building Industry Press, Beijing, (2010).

[10] O. C. Zienkiewicz, R. L. Taylor. Finite Element Method for Solid and Structural Mechanics, Elsevier(Singapore) Pte Ltd, (2008).
