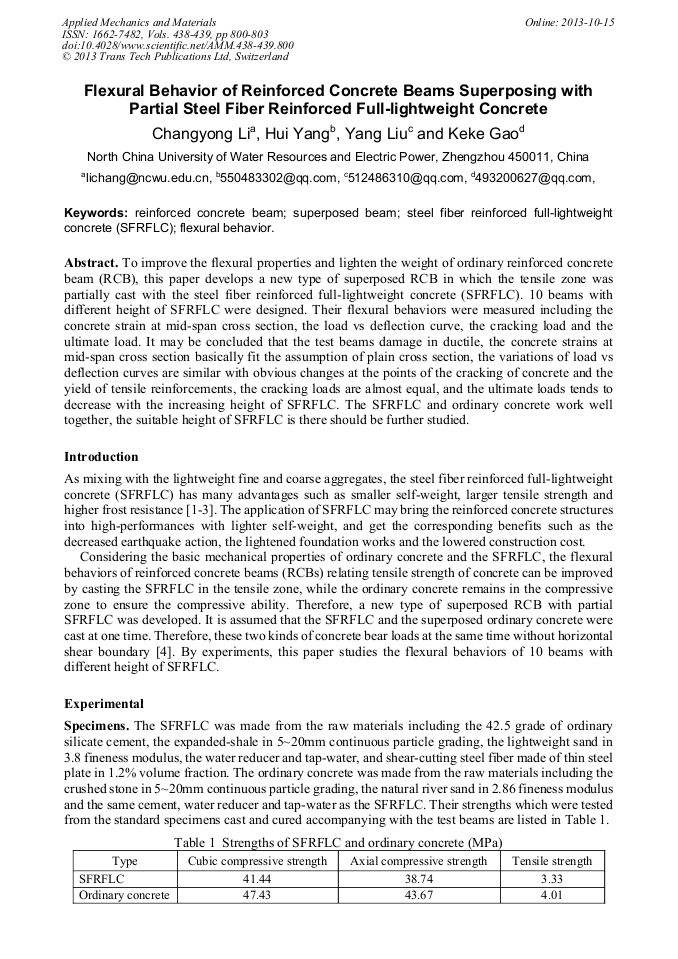

Flexural Behavior of Reinforced Concrete Beams Superposing with Partial Steel Fiber Reinforced Full-Lightweight Concrete

Abstract:

To improve the flexural properties and lighten the weight of ordinary reinforced concrete beam (RCB), this paper develops a new type of superposed RCB in which the tensile zone was partially cast with the steel fiber reinforced full-lightweight concrete (SFRFLC). 10 beams with different height of SFRFLC were designed. Their flexural behaviors were measured including the concrete strain at mid-span cross section, the load vs deflection curve, the cracking load and the ultimate load. It may be concluded that the test beams damage in ductile, the concrete strains at mid-span cross section basically fit the assumption of plain cross section, the variations of load vs deflection curves are similar with obvious changes at the points of the cracking of concrete and the yield of tensile reinforcements, the cracking loads are almost equal, and the ultimate loads tends to decrease with the increasing height of SFRFLC. The SFRFLC and ordinary concrete work well together, the suitable height of SFRFLC is there should be further studied.

• Periodical: Applied Mechanics and Materials (Volumes 438-439)
• Pages: 800-803
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.438-439.800
• Online since: October 2013
• Authors: Chang Yong Li, Hui Yang, Yang Liu, Ke Ke Gao
• Keywords: Flexural Behavior, Reinforced Concrete (RC) Beam, Steel Fiber Reinforced Full-Lightweight Concrete (SFRFLC), Superposed Beam

References

[1] C. Li, X. Qian and S. Zhao: Concrete No. 5 (2010), pp.79-82.

[2] S. Zhao, C. Li and Q. Xiao: Geotechnical Special Publication No. 212 ©ASCE (2011), pp.233-239.

[3] C. Li, H. Chen and S. Zhao: in Proceedings of the 6th International Specialty Conference on Fiber Reinforced Materials, edited by Zhou XG., Shao YB. and Tam CT, CI-Premier PTE Ltd, (2010).

[4] S. Zhao and X. Zhang: Design Principles of Concrete Superposed Structures (China Water Power Press, Beijing, 2001).

[5] GB 50010-2010: Design Code for Concrete Structures (China Building Industry Press, Beijing, 2010).

[6] CECS 38: 2004: Technical Specification for Fiber Reinforced Concrete Structures (China Plan Press, Beijing, 2004).
