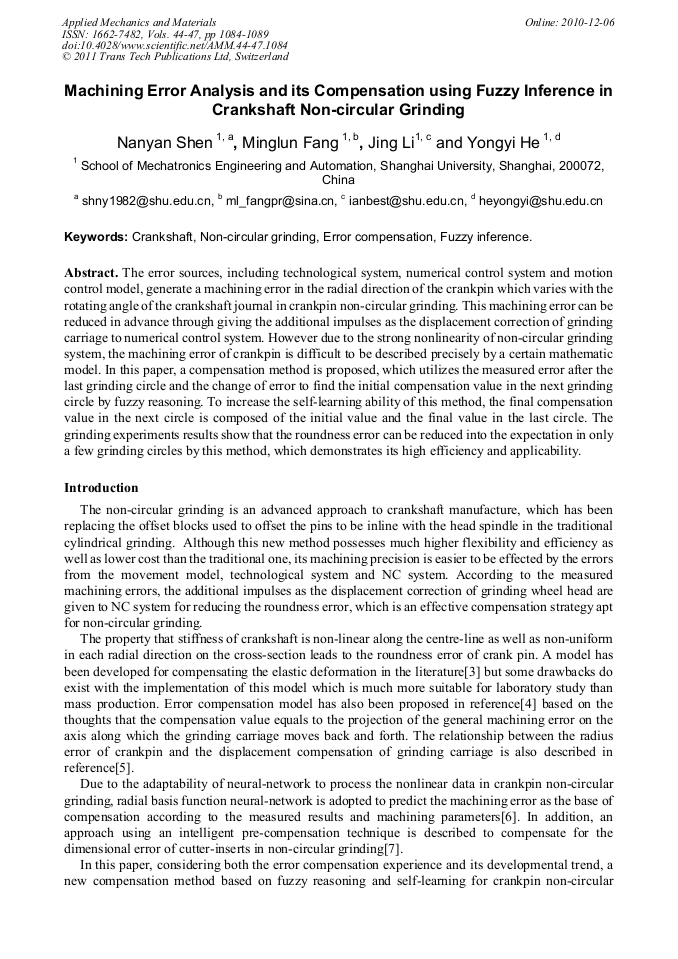

Machining Error Analysis and its Compensation Using Fuzzy Inference in Crankshaft Non-Circular Grinding

Abstract:

The error sources, including technological system, numerical control system and motion control model, generate a machining error in the radial direction of the crankpin which varies with the rotating angle of the crankshaft journal in crankpin non-circular grinding. This machining error can be reduced in advance through giving the additional impulses as the displacement correction of grinding carriage to numerical control system. However due to the strong nonlinearity of non-circular grinding system, the machining error of crankpin is difficult to be described precisely by a certain mathematic model. In this paper, a compensation method is proposed, which utilizes the measured error after the last grinding circle and the change of error to find the initial compensation value in the next grinding circle by fuzzy reasoning. To increase the self-learning ability of this method, the final compensation value in the next circle is composed of the initial value and the final value in the last circle. The grinding experiments results show that the roundness error can be reduced into the expectation in only a few grinding circles by this method, which demonstrates its high efficiency and applicability.

• Periodical: Applied Mechanics and Materials (Volumes 44-47)
• Pages: 1084-1089
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.44-47.1084
• Online since: December 2010
• Authors: Nan Yan Shen, Ming Lun Fang, Jing Li, Yong Yi He
• Keywords: Crankshaft, Error Compensation, Fuzzy Inference, Non-Circular Grinding

References

[1] Qiuju Zhang, Yiding Zhao, Junhong Mao et al.: Journal of Xi'an Jiao Tong University Vol. 29(1995), pp.67-71, in Chinese.

[2] Guoyong Li: Intelligent control and its realization based on MATLAB (Publishing house of electronics industry, Beijing 2005), in Chinese.

[3] Zhixiong Zhou, Hongping Luo, Dihong Xu et al.: Chinese journal of mechanical engineering Vol. 39 (2003), pp.98-101, in Chinese.

[4] Dihong Xu: The research on some key technology in the tangential point tracing grinding methods, Ph.D. thesis, Hunan University, 2005, in Chinese.

[5] Ganghua Wu: Research on the key technique on noncircular crankshaft grinding, Ph.D. thesis, Shanghai University, 2006, in Chinese.

[6] Ganghua Wu, Nanyan Shen, Minglun Fang: Journal of mechanical engineering Vol. 45 (2009), pp.101-105, in Chinese.

[7] X. C. Tian, J.P. Huissoon, Q. Xu et al.: International Journal of Advanced Manufacturing Technology Vol. 36 (2008), pp.28-33.
