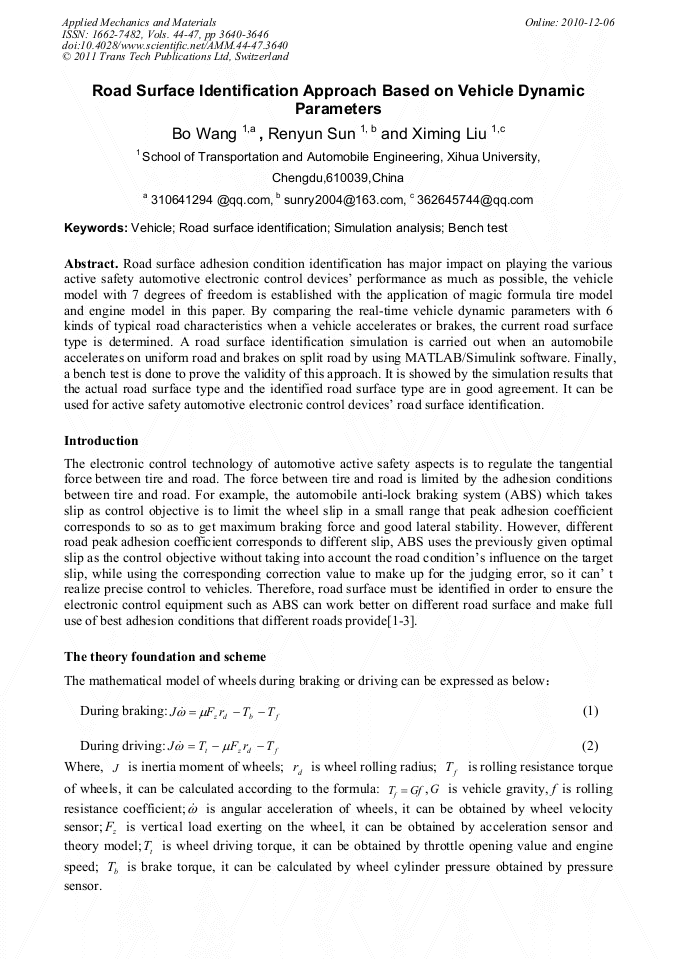

Road Surface Identification Approach Based on Vehicle Dynamic Parameters

Abstract:

Road surface adhesion condition identification has major impact on playing the various active safety automotive electronic control devices’ performance as much as possible, the vehicle model with 7 degrees of freedom is established with the application of magic formula tire model and engine model in this paper. By comparing the real-time vehicle dynamic parameters with 6 kinds of typical road characteristics when a vehicle accelerates or brakes, the current road surface type is determined. A road surface identification simulation is carried out when an automobile accelerates on uniform road and brakes on split road by using MATLAB/Simulink software. Finally, a bench test is done to prove the validity of this approach. It is showed by the simulation results that the actual road surface type and the identified road surface type are in good agreement. It can be used for active safety automotive electronic control devices’ road surface identification.

• Periodical: Applied Mechanics and Materials (Volumes 44-47)
• Pages: 3640-3646
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.44-47.3640
• Online since: December 2010
• Authors: Bo Wang, Ren Yun Sun, Xi Ming Liu
• Keywords: Bench Test, Road Surface Identification, Simulation Analysis, Vehicle

References

[1] Sun Renyun, Li Zhi: Chinese Mechanical Engineering Vol. 19 (2008), pp.481-486, in Chinese.

[2] Li Jun, Yu Fan and Zhang Jianwu: Journal of Agricultural Machinery Vol. 32(2001), pp.26-29, in Chinese.

[3] Yu Zhuoping, Zuo Jianling and Zhang Lijun: Automotive Engineering Vol . 28(2006), pp.546-549, in Chinese.

[4] Liu Zhaodu: Journal of Beijing Institute of Technology Vol. 5(1996), pp.192-203, in Chinese.

[5] Li Jing, Li Youde: Automobile Technique Vol. 10(2003), pp.7-9, in Chinese.

[6] Yu Zhisheng: Automobile theory (Machinery Industry Press, 2006), p.112, in Chinese.

[7] Yao Shiyin, Sun Renyun: Journal of Xihua University Vol. 27(2008), pp.58-60, in Chinese.

[8] Xu Yanhai: Journal of Agricultural Machinery Vol. 39(2008), p.7–10, in Chinese.

[9] Li Yongzhe, Zhang Jianwu and Yin Chengliang: Drive System Technology Vol. 2(2002), pp.39-41, in Chinese.

[10] Wang Bo, Sun Renyun: Tian'jing Automobile Vol. 5(2006), pp.9-12, in Chinese.

[11] Huang Yongan, Ma Lu and Liu Huiming: MATLAB 7. 0/Simulink 6. 0 modeling simulation development and application of advanced engineering(Tsinghua University Press, 2008), pp.0-354, in Chinese.

[12] Zhang Defeng: MATLAB/Simulink modeling and simulation, pp.0-364, in Chinese.

[13] Zhang Sen, Zhang Zhengliang: MATLAB/simulation technique and Example application tutorial, pp.0-306, in Chinese.

[14] Sun Renyun: Journal of Sichuan University Vol. 33(2001), p.85–88, in Chinese.
