Study on Thermal Deformation of Machine Tool under Different Environment Temperature

Abstract:

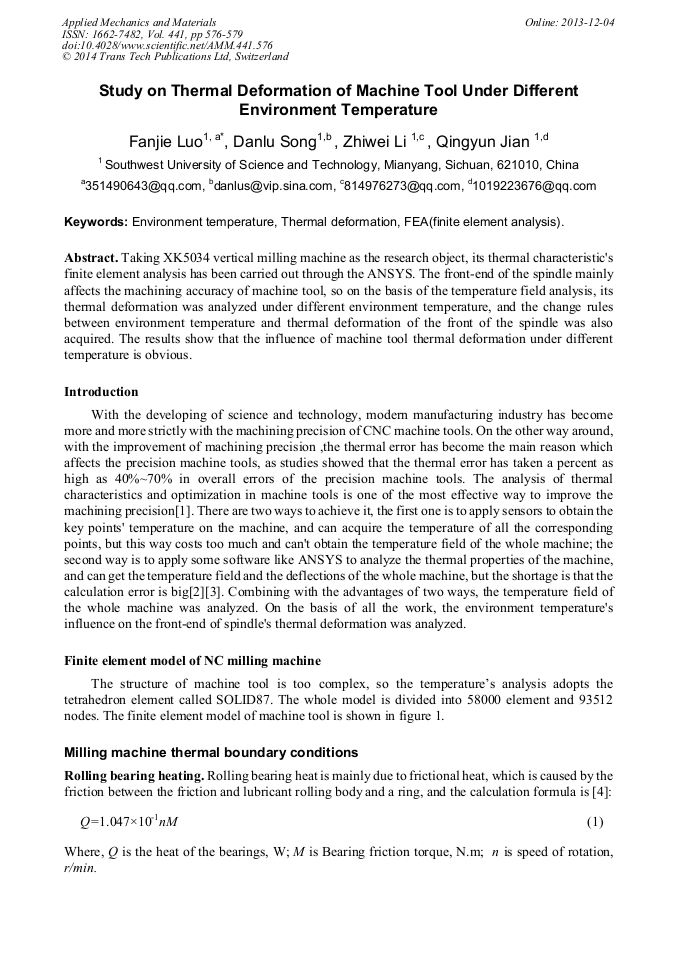

Taking XK5034 vertical milling machine as the research object, its thermal characteristic's finite element analysis has been carried out through the ANSYS. The front-end of the spindle mainly affects the machining accuracy of machine tool, so on the basis of the temperature field analysis, its thermal deformation was analyzed under different environment temperature, and the change rules between environment temperature and thermal deformation of the front of the spindle was also acquired. The results show that the influence of machine tool thermal deformation under different temperature is obvious.
