Effect of Channel Inner Angle on Aluminum ECAP Plastic Deformation

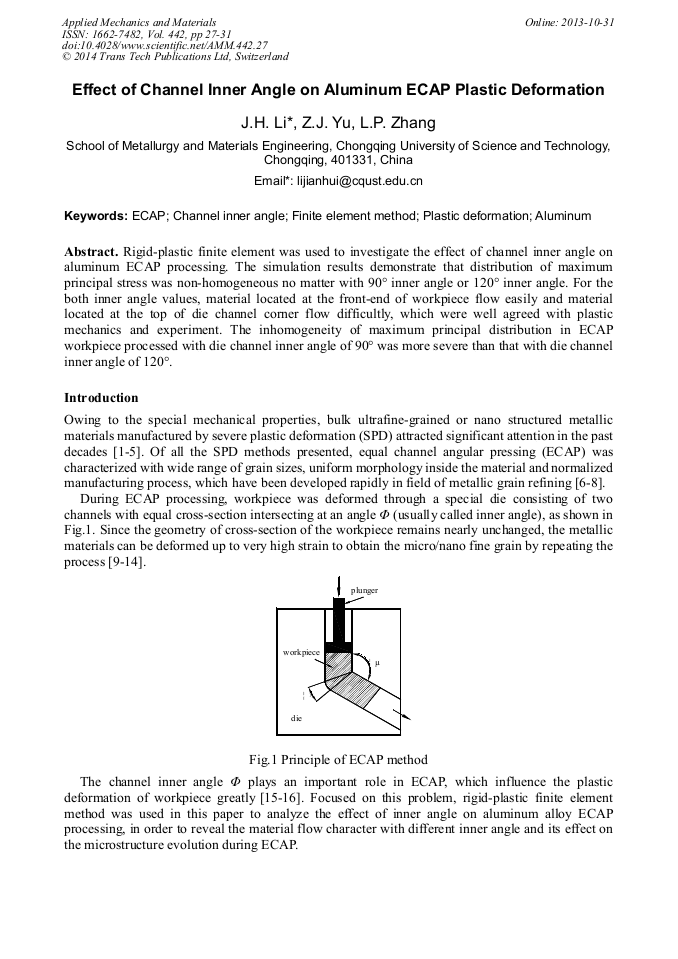

Article Preview

Abstract:

Rigid-plastic finite element was used to investigate the effect of channel inner angle on aluminum ECAP processing. The simulation results demonstrate that distribution of maximum principal stress was non-homogeneous no matter with 90° inner angle or 120° inner angle. For the both inner angle values, material located at the front-end of workpiece flow easily and material located at the top of die channel corner flow difficultly, which were well agreed with plastic mechanics and experiment. The inhomogeneity of maximum principal distribution in ECAP workpiece processed with die channel inner angle of 90° was more severe than that with die channel inner angle of 120°.

You might also be interested in these eBooks

Materials Engineering and Mechanical Automation

Info:

Periodical:

Applied Mechanics and Materials (Volume 442)

Pages:

27-31

DOI:

https://doi.org/10.4028/www.scientific.net/AMM.442.27

Citation:

Cite this paper

Online since:

October 2013

Authors:

J.H. Li*, Z.J. Yu, L.P. Zhang

Keywords:

Aluminum (Al), Channel Inner Angle, ECAP, Finite Element Method (FEM), Plastic Deformation

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

© 2014 Trans Tech Publications Ltd. All Rights Reserved

Share:

Citation:

* - Corresponding Author

[1] Valiev. R. Z. and Alexandrov. I. V. Nanostructured materials from severe plastic deformation[J]. Nanostructured Materials. 1999, Vol. 12: 35-40.

DOI: 10.1016/s0965-9773(99)00061-6

[2] O. N. Senkov, F. H. Froes, V. V. Stolyarov, R. Z. Valiev, et al. Microstructure of Aluminum-Iron Alloys Subjected to Severe Plastic Deformation[J]. Scripta Materialia. 1998, Vol. 38: 1511-1516.

DOI: 10.1016/s1359-6462(98)00073-6

[3] Mohammad Jahedi and Mohammad Hossein Paydar. Three-dimensional finite element analysis of torsion extrusion (TE) as an SPD process[J]. Materials Science and Engineering: A. 2011, Vol. 528: 8742-8749.

DOI: 10.1016/j.msea.2011.08.055

[4] V. Y. Gertsman, R. Birringer, R. Z. Valiev, and H. Gleiter. On the structure and strength of ultrafine-grained copper produced by severe plastic deformation[J]. Scripta Metallurgica et Materialia. 1994, Vol. 30: 229-234.

DOI: 10.1016/0956-716x(94)90045-0

[5] WANG Y M, CHEN M W, ZHOU F H, MA E. High tensile ductility in a nanostructured metal[J]. Nature, 2002, 419: 912-915.

DOI: 10.1038/nature01133

[6] Heon Son, Jeong-Ho Lee, and Yong-Taek Im. Finite element investigation of equal channel angular extrusion with back pressure[J]. Journal of Materials Processing Technology. 2006, Vol. 171: 480-487.

DOI: 10.1016/j.jmatprotec.2005.11.001

[7] C.F. Gu, L.S. Tóth and C.H.J. Davies. Effect of strain reversal on texture and grain refinement in route C equal channel angular pressed copper[J]. Scripta Materialia, 2011(65): 167-170.

DOI: 10.1016/j.scriptamat.2011.04.009

[8] VALIEV R Z, KOZLOV E V, IVANOV Y F et al. Deformation behaviour of ultra-fine-grained copper[J]. Acta Metallurgica et Materialia, 1994, 42(7): 2467-2475.

DOI: 10.1016/0956-7151(94)90326-3

[9] KOCH C C. Optimization of strength and ductility in nanocrystalline and ultrafine grained metals[J]. Scripta Materialia, 2003, 49(7): 657-662.

DOI: 10.1016/s1359-6462(03)00394-4

[10] Valiev. R. Z, Islamgaliev .R. K, and Alexandrov I. V. Bulk nanostructured materials from severe plastic deformation[J]. Progress in Materials Science. 2000, Vol. 45: 103-189.

DOI: 10.1016/s0079-6425(99)00007-9

[11] Arima H Nishiday , Kimj C Superplastic of SiC/7075 composites processed by rotary die equal channel angular pressing[J]. Japan Inst . metals. 2000, Vol. 64 (12): 1224-1229.

DOI: 10.2320/jinstmet1952.64.12_1224

[12] Yoshinori Iwahashi, Zenji Horita, Minoru Nemoto, and Terence G. Langdon. The process of grain refinement in equal-channel angular pressing[J]. Acta Materialia. 1998, Vol. 46: 3317-3331.

DOI: 10.1016/s1359-6454(97)00494-1

[13] Segal V M, Reznikov V I, Drobyshevkiy A E, et a1. Plastic working of metals by simple shear[J]. Metall, 1981, 1: 115.

[14] A. V. Korznikov, Yu V. Ivanisenko, D. V. Laptionok, I. M. Safarov, et al. Influence of severe plastic deformation on structure and phase composition of carbon steel[J]. Nanostructured Materials. 2007, Vol. 4: 159-167.

DOI: 10.1016/0965-9773(94)90075-2

[15] Z Horita, T Fujinami, T G Langdor. The potential for scaling ECAP: effect of sample size on grain refinement and mechanical properties[J]. Materials Science & Engineering A, 2001, 318: 34-41.

DOI: 10.1016/s0921-5093(01)01339-9

[16] R K Oruganti, P R Subramanian, J S Matte, et al. Effect of friction, backpressure and strain rate sensitivity on material flow during equal channel angular extrusion[J]. Material Science & Engineering A, 2005, 406: 102-109.

DOI: 10.1016/j.msea.2005.06.031
