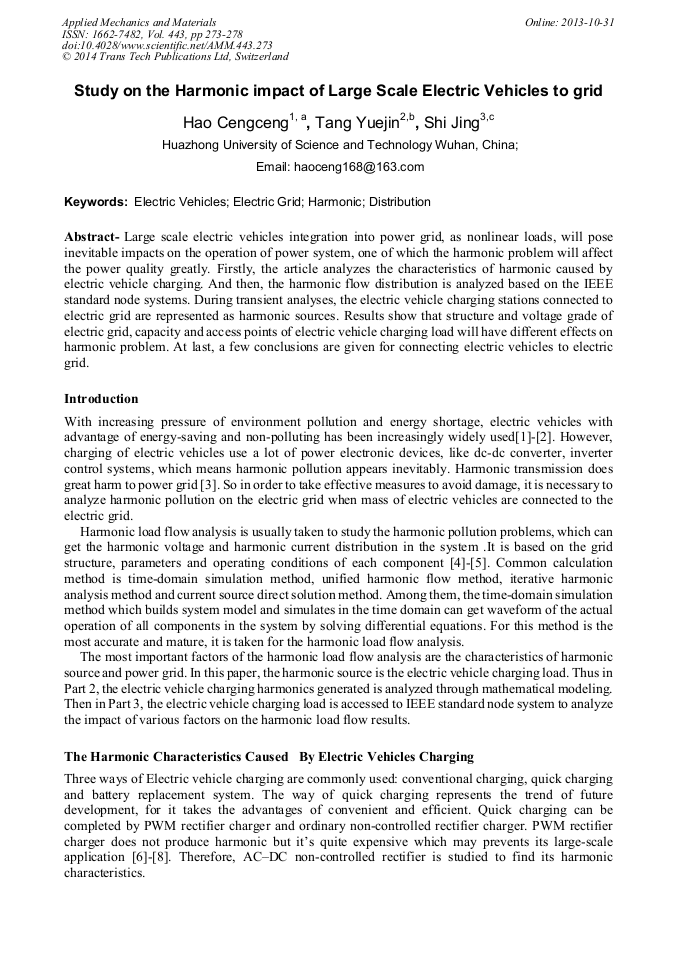

Study on the Harmonic Impact of Large Scale Electric Vehicles to Grid

Abstract:

Large scale electric vehicles integration into power grid, as nonlinear loads, will pose inevitable impacts on the operation of power system, one of which the harmonic problem will affect the power quality greatly. Firstly, the article analyzes the characteristics of harmonic caused by electric vehicle charging. And then, the harmonic flow distribution is analyzed based on the IEEE standard node systems. During transient analyses, the electric vehicle charging stations connected to electric grid are represented as harmonic sources. Results show that structure and voltage grade of electric grid, capacity and access points of electric vehicle charging load will have different effects on harmonic problem. At last, a few conclusions are given for connecting electric vehicles to electric grid.

• Periodical: Applied Mechanics and Materials (Volume 443)
• Pages: 273-278
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.443.273
• Online since: October 2013
• Authors: Ceng Ceng Hao, Yue Jin Tang, Jing Shi
• Keywords: Distribution, Electric Grid, Electric Vehicle (EV), Harmonic

References

[1] Boulanger A G, Chu A C, Maxx S, et al. Vehicle electrification: status and issues [J]. Proceedings of theIEEE, 99(6): 1116-1138.

DOI: 10.1109/jproc.2011.2112750

[2] Wu Qitang. Progresses in"Ten Cities & Thousand Units" plan [J]. New Energy Vehicles, 2009, 1(24): 15-19(inChinese).

[3] Adornato B, Patil R, Filipi Z. Characterizing naturalisticdriving patterns for plug-in hybrid electric vehicleanalysis[C]/IEEE Vehicle Power and PropulsionConference. Michigan: IEEE, 2009: 655-660.

DOI: 10.1109/vppc.2009.5289786

[4] J. Walters, H. Husted, and K. Rajashekara, Comparative study of hy-brid powertrain strategies, in Proc. SAE Future Transp. Technol. Conf., Costa Mesa, CA, Aug. (2001).

DOI: 10.4271/2001-01-2501

[5] Emadi, K. Rajashekara, S. S. Williamson, and S. M. Lukic, Topo-logical overview of hybrid electric and fuel cell vehicular power system architectures and configurations, IEEE Trans. Veh. Technol., vol. 54, no. 3, p.763–770, May (2005).

DOI: 10.1109/tvt.2005.847445

[6] P. Bajec, D. Voncina, D. Miljavec, and J. Nastran, Bi-directional powerconverter for wide speed range integrated starter-generator, in Proc. IEEE Int. Symp. Ind. Electron, May 2004, vol. 2, p.1117–1122.

DOI: 10.1109/isie.2004.1571970

[7] S. S. Williamson and A. Emadi, Comparative assessment of hybridelectric and fuel cell vehicles based on comprehensive well-to-wheels ef-ficiency analysis, IEEE Trans. Veh. Technol., vol. 54, no. 3, p.856–862, May2005.

DOI: 10.1109/tvt.2005.847444

[8] T. Katrasnik, F. Trenc, and S. R. Opresnik, Analysis of energy conversionefficiency in parallel and series hybrid powertrains, IEEE Trans. Veh. Technol., vol. 56, no. 6, p.3649–3659, Nov. (2007).

DOI: 10.1109/tvt.2007.901033

[9] EN 61000-3-3: Electromagnetic compatibility (EMC) - Part 3-3: Limits -Limitation of voltage changes, voltage fluctuations and flicker in publiclow-voltage supply systems, for equipment with rated current <=16 Aper phase and not subject to conditional connection (IEC 61000-3-3: 2008). 66. (2001).

DOI: 10.3403/02539265
