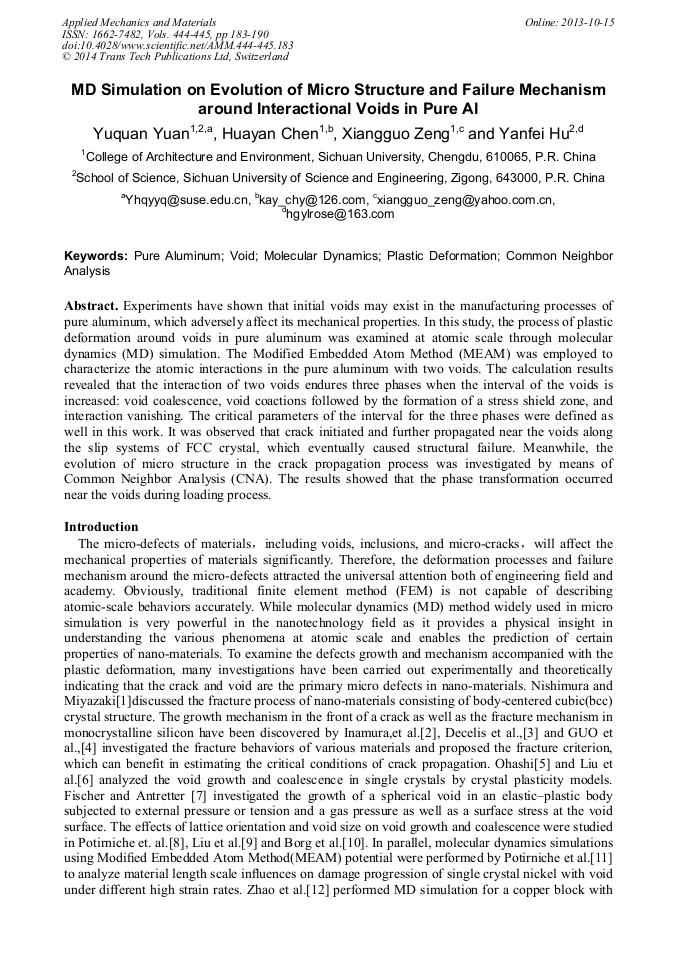

MD Simulation on Evolution of Micro Structure and Failure Mechanism around Interactional Voids in Pure Al

Abstract:

Experiments have shown that initial voids may exist in the manufacturing processes of pure aluminum, which adversely affect its mechanical properties. In this study, the process of plastic deformation around voids in pure aluminum was examined at atomic scale through molecular dynamics (MD) simulation. The Modified Embedded Atom Method (MEAM) was employed to characterize the atomic interactions in the pure aluminum with two voids. The calculation results revealed that the interaction of two voids endures three phases when the interval of the voids is increased: void coalescence, void coactions followed by the formation of a stress shield zone, and interaction vanishing. The critical parameters of the interval for the three phases were defined as well in this work. It was observed that crack initiated and further propagated near the voids along the slip systems of FCC crystal, which eventually caused structural failure. Meanwhile, the evolution of micro structure in the crack propagation process was investigated by means of Common Neighbor Analysis (CNA). The results showed that the phase transformation occurred near the voids during loading process.

• Periodical: Applied Mechanics and Materials (Volumes 444-445)
• Pages: 183-190
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.444-445.183
• Online since: October 2013
• Authors: Yu Quan Yuan, Hua Yan Chen, Xiang Guo Zeng, Yan Fei Hu
• Keywords: Common Neighbor Analysis, Molecular Dynamic (MD), Plastic Deformation, Pure Aluminum, Void

References

[1] K. Nishimura, N. Miyazaki, Molecular dynamics simulation of crack growth under cyclic loading, Computational Materials Science, 31 (2004) 269-278.

DOI: 10.1016/j.commatsci.2004.03.009

[2] T. Inamura, N. Takezawa, K. Shibuya, K. Yamada, Dynamic phenomena at mode-I crack front in silicon simulated by extended molecular dynamics, CIRP Annals -Manufacturing Technology, 56 (2007) 561-564.

DOI: 10.1016/j.cirp.2007.05.134

[3] B. Decelis, A. S. Argon, S. Yip, Molecular dynamics simulation of crack tip processes in alpha-iron and copper, Journal of applied physics, 54 (1983) 4864-4878.

DOI: 10.1063/1.332796

[4] Y.F. Guo, S.W. Gao, Atomistic simulation of crack propagation and its size-dependent behavior, Journal of Beijing Jiaotong University, 29 (2005) 5-9.

[5] T. Ohashi, Crystal plasticity analysis of dislocation emission from microvoids, International journal of plasticity, 21 (2005) 2071–(2088).

DOI: 10.1016/j.ijplas.2005.03.018

[6] B. Liu, X. M. Zhang, J. G. Tang, Y. X. Du, Simulation of void growth and coalescence behavior with 3D crystal plasticity[J]. Computational Materials Science, 2007, 40: 130–139.

DOI: 10.1016/j.commatsci.2006.11.009

[7] F.D. Fisher, T. Antretter, Deformation, stress state and thermodynamic force for a growing void in an elastic–plastic material, International journal of plasticity, 25 (2009) 1819–1832.

DOI: 10.1016/j.ijplas.2008.11.007

[8] G. P. Potirniche, J. L. Hearndon, M. F. Horstemeyer, X.W. Ling, Lattice orientation effects on void growth and coalescence in fcc single crystals, International journal of plasticity, 22 (2006) 921–942.

DOI: 10.1016/j.ijplas.2005.06.003

[9] B. Liu, Y. Huang, M. Li, K.C. Hwang, C. Liu. A study of the void size effect based on the Taylor dislocation model, International journal of plasticity, 21 (2005) 2107–2122.

DOI: 10.1016/j.ijplas.2005.03.016

[10] U. Borg, C.F. Niordson, J.W. Kysar, Size effect on void growth in single crystals with distributed voids, International journal of plasticity, 24 (2008) 688–701.

DOI: 10.1016/j.ijplas.2007.07.015

[11] G.P. Potirniche, M.F. Horstemeyer, G.J. Wagner, P.M. Gullett, A molecular dynamics study of void growth and coalescence in single crystal nickel, International journal of plasticity, 22(2006) 257–278.

DOI: 10.1016/j.ijplas.2005.02.001

[12] Y.H. Zhao, Y.J. Li, Z.A. Yang, Molecular dynamics simulation of Cu with a hole under minus static pressures, Chinese Journal of Computational Physics, 23(2006) 343-349.

[13] K.J. Zhao, C.Q. Chen, Y.P. Shen, T.J. Lu, Molecular dynamics study on the nano-void growth in face-centered cubic single crystal copper, Computational Materials Science, 46 (2009) 749-754.

DOI: 10.1016/j.commatsci.2009.04.034

[14] J. Segurado, J. Llorca, Discrete dislocation dynamics analysis of the effect of lattice orientation on void growth in single crystals, International journal of plasticity, 26 (2010) 806–819.

DOI: 10.1016/j.ijplas.2009.10.009

[15] V.A. Lubarda, Emission of dislocations from nanovoids under combined loading, International journal of plasticity, 27 (2011) 181–200.

DOI: 10.1016/j.ijplas.2010.04.005

[16] D. Huang, W.M. Tao, Y.M. Guo, Molecular dynamics simulation of failure process of nano aluminum wire under axial tension, Ordnance Material Science and Engineering, 28 (2005) 1-4.

[17] L. Yuan, D.B. Shan, B. Guo, Molecular dynamics simulation of tensile deformation of nano-single crystal aluminum, Journal of Materials Processing Technology, 184 (2007) 1–5.

DOI: 10.1016/j.jmatprotec.2006.10.042

[18] R. Komanduri, N. Chandrasekaran, L.M. Raff, MD simulation of indentation and scratching of single crystal aluminum, Wear, 240 (2000) 113–143.

DOI: 10.1016/s0043-1648(00)00358-6

[19] B. Chen, X. Peng, J. Fan, S. Chen, A constitutive description for casting aluminum alloy A104 based on the analysis of cylindrical and spherical void models, International journal of plasticity, 21 (2005) 2232–2253.

DOI: 10.1016/j.ijplas.2005.04.004

[20] S.J. Plimpton, Fast parallel algorithms for short-range molecular dynamics, Journal of Computational Physics, 117 (1995) 1-19.

DOI: 10.1006/jcph.1995.1039

[21] J.D. Honeycutt, H.C. Andersen, Molecular-dynamics study of melting and freezing of small Lennard-Jones clusters, Journal of Physical Chemistry, 91 (1987) 4950–4963.

DOI: 10.1021/j100303a014

[22] H. Tsuzuki, P.S. Branicio, J.P. RINO, Structural characterization of deformed crystals by analysis of common atomic neighborhood, Computer physics communications, 177 (2007) 518–523.

DOI: 10.1016/j.cpc.2007.05.018

[23] M.I. Baskes, J.S. Nelson, A.F. Wright, Semiempirical modified embedded-atom potentials for silicon and germanium, Physical Review B, 40 (1989) 6085-6100.

DOI: 10.1103/physrevb.40.6085

[24] M.I. Baskes, Modified embedded-atom potentials for cubic materials and impurities, Physical Review B, 46 (1992) 2727-2742.

DOI: 10.1103/physrevb.46.2727

[25] M.S. Daw, M.I. Baskes, Semiempirical quantum mechanical calculation of hydrogen embrittlement in metals, Physical Review Letters, 50 (1983) 1285-1288.

DOI: 10.1103/physrevlett.50.1285

[26] M.S. Daw, M.I. Baskes, Embedded-atom method: Derivation and application to impurities, surfaces, and other defects in metals, Physical Review B, 29 (1984) 6443-6453.

DOI: 10.1103/physrevb.29.6443
